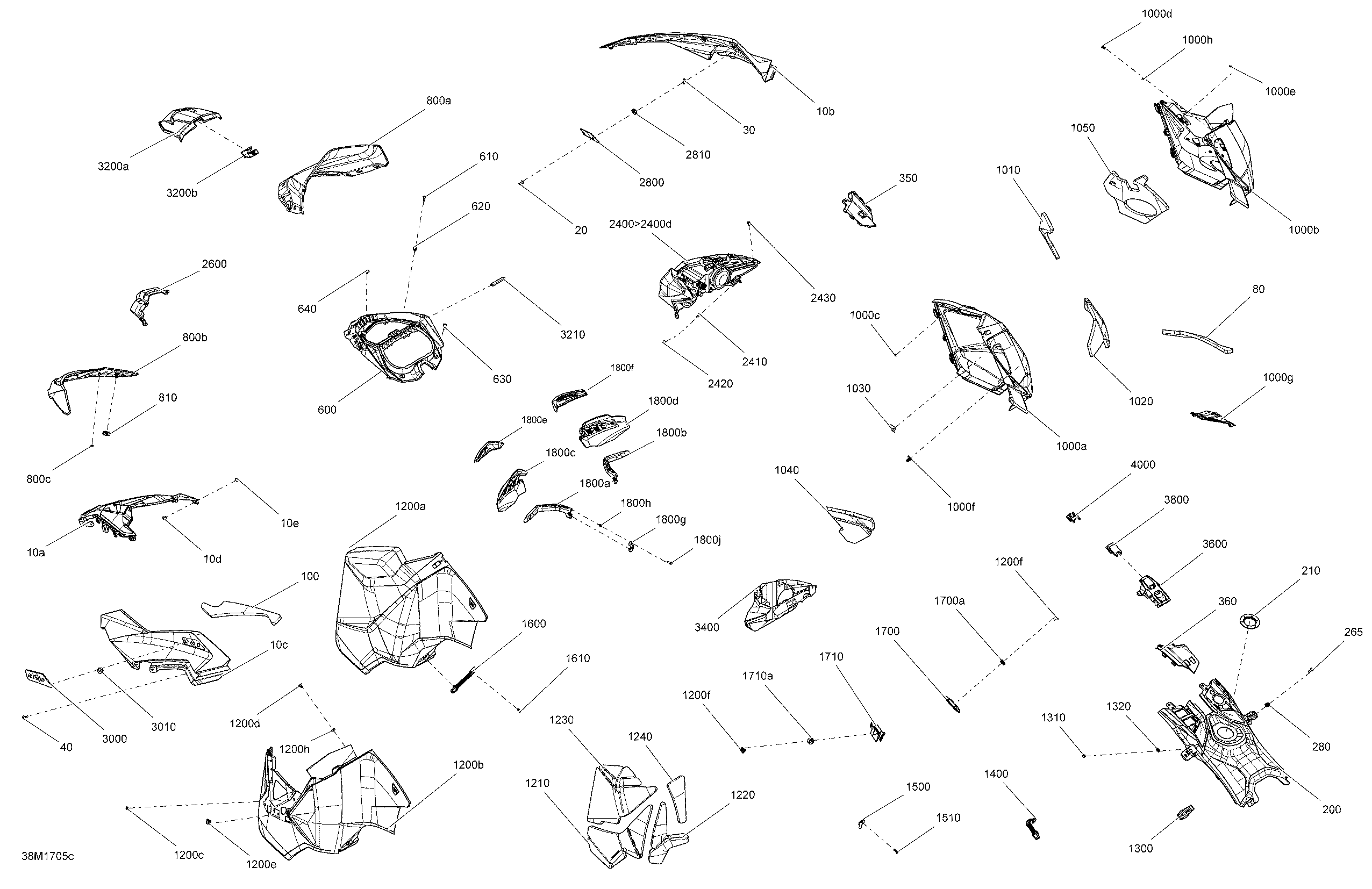

09- Hood - Package Iron Dog для BRP Ski-Doo MXZ - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10a517304796 Deep Black - Center HoodDeep Black - Center Hood
-
10b517305239 Deep Black - RH HoodDeep Black - RH Hood
-
10c517305240 Deep Black - LH HoodDeep Black - LH Hood
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305641 Deep Black - Rear ConsoleDeep Black - Rear Console
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 Deep Black - RH Front ConsoleDeep Black - RH Front Console
-
360517305143 Deep Black LH Front ConsoleDeep Black LH Front Console
-
400>400a517305060 Deep Black RH Console. Includes 400 to 400aDeep Black RH Console. Includes 400 to 400a
-
400a275500241 Black - CapBlack - Cap
-
410250000725 Screw M4 X 16Screw M4 X 16
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
640414644300 DartDart
-
800a517304931 Windshield 135mmWindshield 135mm
-
800b517304922 Deep Black, Windshield Support - ShortDeep Black, Windshield Support - Short
-
800c732610072 Push NutPush Nut
-
810517303756 GrommetGrommet
-
1000a517304801 Deep Black, Panel RHDeep Black, Panel RH
-
1000b517305058 Black Panel Trim RHBlack Panel Trim RH
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305734 PinPin
-
1000g517304935 RH Panel Vent Grid, Deep BlackRH Panel Vent Grid, Deep Black
-
1000h517124300 WasherWasher
-
1010517305197 Foam Central RHFoam Central RH
-
1020517305199 Foam Rear RHFoam Rear RH
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 Foam Upper RHFoam Upper RH
-
1050517305198 Foam Lower RHFoam Lower RH
-
1200a517304804 Deep Black LH PanelDeep Black LH Panel
-
1200b517304805 Black LH Flashing PanelBlack LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200h517124300 WasherWasher
-
1210517305201 LH Center Panel FoamLH Center Panel Foam
-
1220517305202 LH Lower Panel FoamLH Lower Panel Foam
-
1230517305200 LH Upper Panel FoamLH Upper Panel Foam
-
1240517305203 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517303612 RH Panel LatchRH Panel Latch
-
1500517304221 Latch SupportLatch Support
-
1510250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1700>1700a517305724 RH Panel Clip Ass'y, Black. Includes 1700 to 1700aRH Panel Clip Ass'y, Black. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710>1710a517305722 LH Panel Clip Ass'y, Black. Includes 1710 to 1710aLH Panel Clip Ass'y, Black. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
1800a517305290 Deep Black LH ArmDeep Black LH Arm
-
1800b517305293 Deep Black RH ArmDeep Black RH Arm
-
1800c517305291 LH Deflector, Smoke 60% Transm.LH Deflector, Smoke 60% Transm.
-
1800d517305294 RH Deflector, Smoke 60% Transm.RH Deflector, Smoke 60% Transm.
-
1800e517305601 Deep Black - LH Cap, SKI-DOODeep Black - LH Cap, SKI-DOO
-
1800f517305602 Deep Black - RH Cap, SKI-DOODeep Black - RH Cap, SKI-DOO
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2800517305137 RH Hood Filler Plate, SKI-DOORH Hood Filler Plate, SKI-DOO
-
3000517305138 LH Hood Filler Plate, SKI-DOOLH Hood Filler Plate, SKI-DOO
-
3200a517304912 Upper Storage Access Cover, Deep BlackUpper Storage Access Cover, Deep Black
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 Trunk, Deep BlackTrunk, Deep Black
-
3600517304970 Console Support, Deep BlackConsole Support, Deep Black
-
3800517305148 Support Console Cap, Deep BlackSupport Console Cap, Deep Black
-
4000517305147 Deep Black Support Console CapDeep Black Support Console Cap
