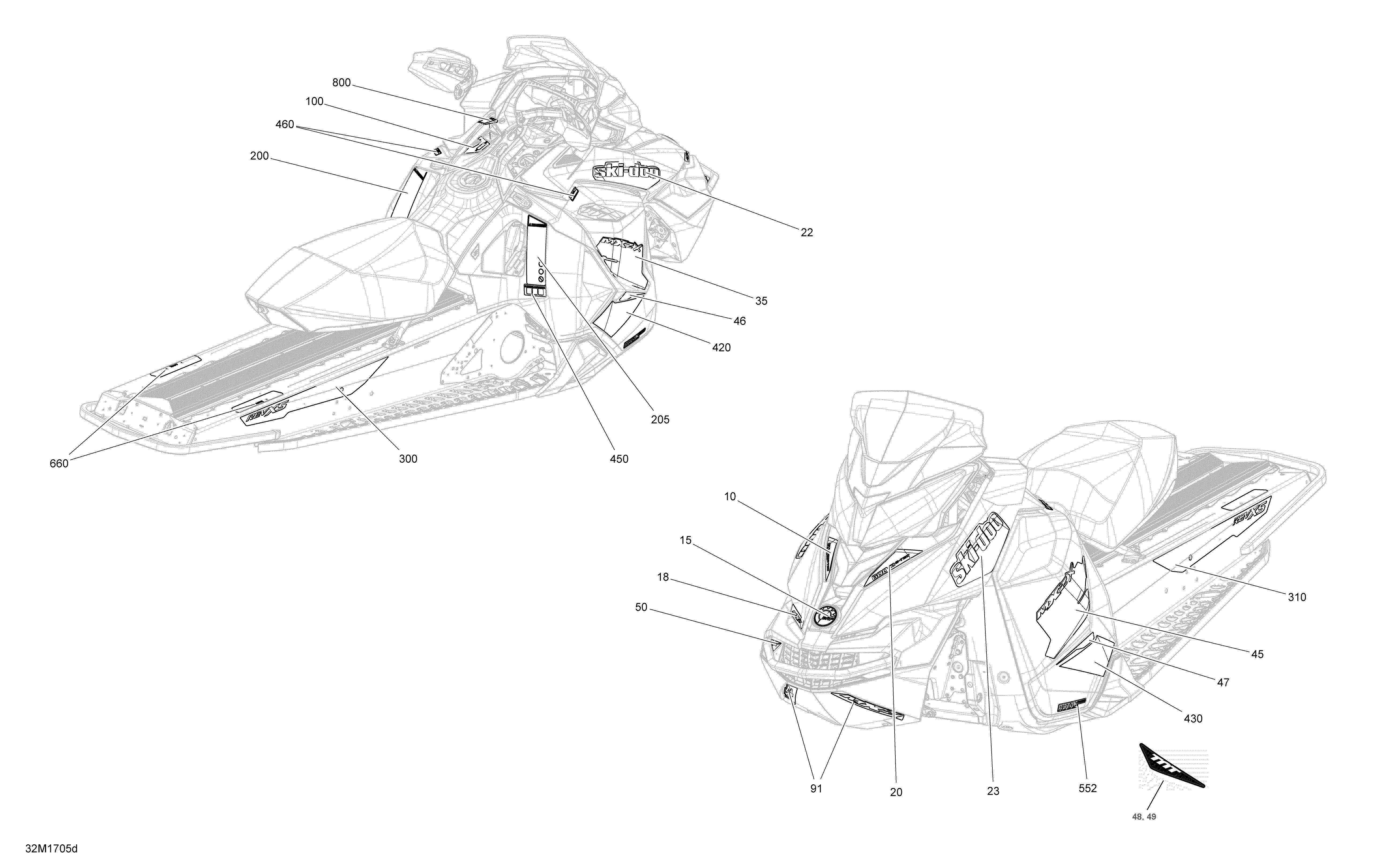

09- Decals - Package X для BRP Ski-Doo MXZ - 2-STROKE - 600HO E-TEC - 2017
-
№АртикулНазвание
-
10516007982 RH Hood Eng.Decal, 600HOE St Grey/Black. Model BlackRH Hood Eng.Decal, 600HOE St Grey/Black. Model Black
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
18516007963 RH Hood Decal MXZ Sunburst. Model YellowRH Hood Decal MXZ Sunburst. Model Yellow
-
20516007981 LH Hood Eng. Decal, 600HOE St Grey/Black. Model BlackLH Hood Eng. Decal, 600HOE St Grey/Black. Model Black
-
22516006977 RH Hood Decal, SKI-DOO Deep Black. Model YellowRH Hood Decal, SKI-DOO Deep Black. Model Yellow
-
22516007189 RH Hood Decal, SKI-DOO Steel Grey Met.. Model BlackRH Hood Decal, SKI-DOO Steel Grey Met.. Model Black
-
23516006976 LH Hood Decal, SKI-DOO Deep Black. Model YellowLH Hood Decal, SKI-DOO Deep Black. Model Yellow
-
23516007188 LH Hood Decal, SKI-DOO Steel Grey Met.. Model BlackLH Hood Decal, SKI-DOO Steel Grey Met.. Model Black
-
35516007952 RH Side Decal MXZ X Sunburst. Model YellowRH Side Decal MXZ X Sunburst. Model Yellow
-
35516007976 RH Side Decal MXZ X Steel Grey. Model BlackRH Side Decal MXZ X Steel Grey. Model Black
-
45516007951 LH Side Decal MXZ X Sunburst. Model YellowLH Side Decal MXZ X Sunburst. Model Yellow
-
45516007975 LH Side Decal MXZ X Steel Grey. Model BlackLH Side Decal MXZ X Steel Grey. Model Black
-
46516007954 RH Side Decal, Deep Black. Model YellowRH Side Decal, Deep Black. Model Yellow
-
46516007974 RH Side Decal, Steel Grey Met.. Model BlackRH Side Decal, Steel Grey Met.. Model Black
-
47516007953 LH Side Decal, Deep Black. Model YellowLH Side Decal, Deep Black. Model Yellow
-
47516007973 LH Side Decal, Steel Grey Met.. Model BlackLH Side Decal, Steel Grey Met.. Model Black
-
50516007788 Front X Decal, Deep Black/Red ''X''. Model BlackFront X Decal, Deep Black/Red ''X''. Model Black
-
50516007788 Front X Decal, Deep Black/Red ''X''. Model YellowFront X Decal, Deep Black/Red ''X''. Model Yellow
-
200516005055 ENG LH Warning Decal, SecurityENG LH Warning Decal, Security
-
205516005056 ENG Warning RH Decal, SecurityENG Warning RH Decal, Security
-
300516007950 RH Frame Decal REV XS Sunburst. Model YellowRH Frame Decal REV XS Sunburst. Model Yellow
-
300516007972 RH Frame Decal REV XS Steel Grey. Model BlackRH Frame Decal REV XS Steel Grey. Model Black
-
310516007949 LH Frame Decal REV XS Sunburst. Model YellowLH Frame Decal REV XS Sunburst. Model Yellow
-
310516007971 LH Frame Decal REV XS Steel Grey. Model BlackLH Frame Decal REV XS Steel Grey. Model Black
-
420516008084 RH Lower decal Sunburst. Model YellowRH Lower decal Sunburst. Model Yellow
-
420516008086 RR RH Lower decal, Steel Grey Met.. Model BlackRR RH Lower decal, Steel Grey Met.. Model Black
-
430516008083 LH Lower decal Sunburst. Model YellowLH Lower decal Sunburst. Model Yellow
-
430516008085 RR LH Lower decal, Steel Grey Met.. Model BlackRR LH Lower decal, Steel Grey Met.. Model Black
-
450516005226 Warning Decal, Pictogram Europe. Model EuropeWarning Decal, Pictogram Europe. Model Europe
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
552516007843 Rotax Power Decal Sunburst. Model YellowRotax Power Decal Sunburst. Model Yellow
-
552516008068 Rotax Power Decal, Black/Grey Lett.. Model BlackRotax Power Decal, Black/Grey Lett.. Model Black
-
660516006860 Rear Top Frame LinQ Black DecalRear Top Frame LinQ Black Decal
-
800516007661 Warning Decal, InjectorsWarning Decal, Injectors
