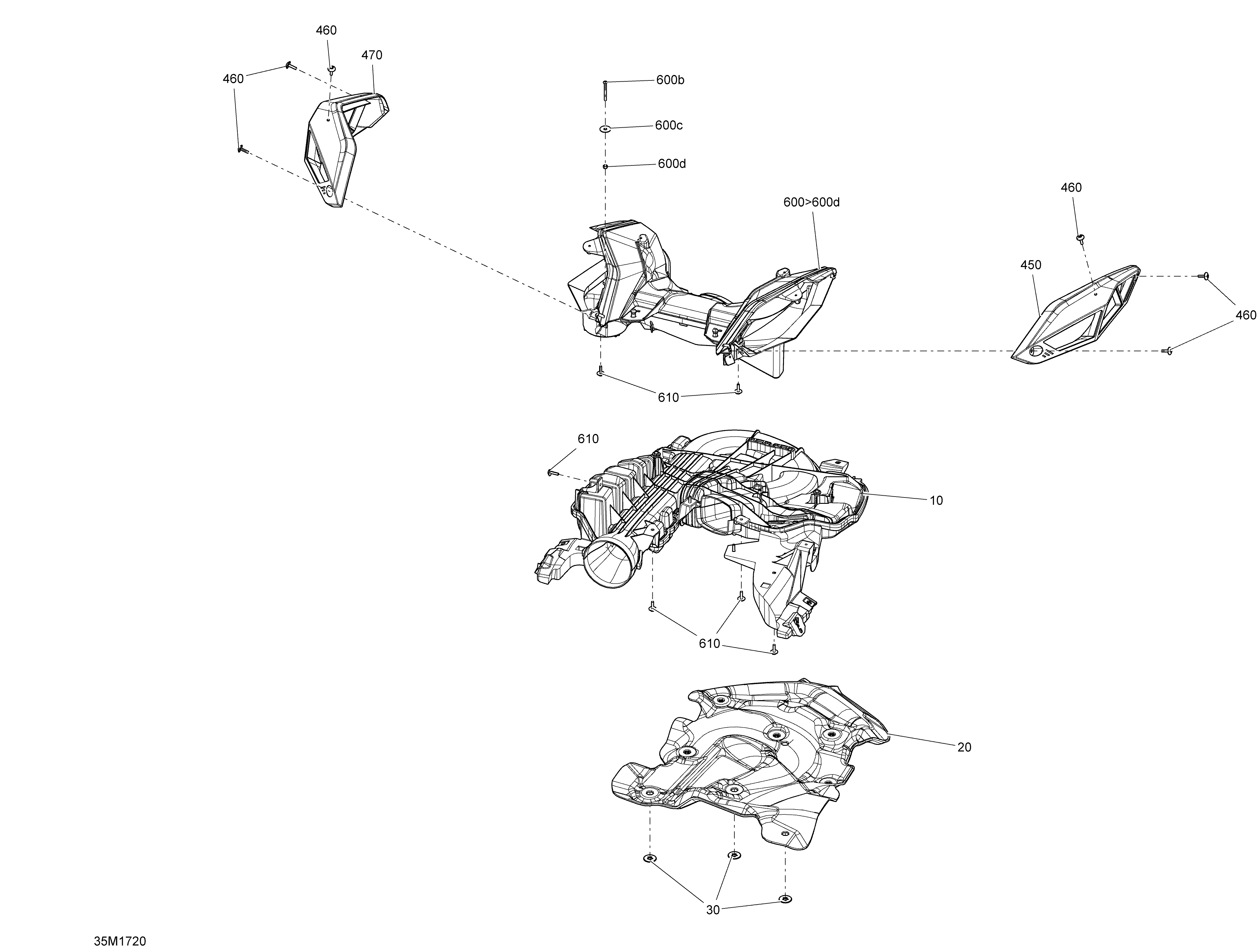

02- Air Intake System - All Models для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10508000794 Secondary ChamberSecondary Chamber
-
20508000823 Acoustik PanelAcoustik Panel
-
30508000853 Push NutPush Nut
-
450508000806 RH Air FilterRH Air Filter
-
460250000889 Screw M4 X 16Screw M4 X 16
-
470508000807 LH Air FilterLH Air Filter
-
600>600d508000846 Black - Air Duct Ass'y. Includes 600 to 600dBlack - Air Duct Ass'y. Includes 600 to 600d
-
600>600d508000847 Yellow - Air Duct Ass'y. Includes 600 to 600dYellow - Air Duct Ass'y. Includes 600 to 600d
-
600b205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
600c224060201 Flat WasherFlat Washer
-
600d232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
610250000725 Screw M4 X 16Screw M4 X 16
