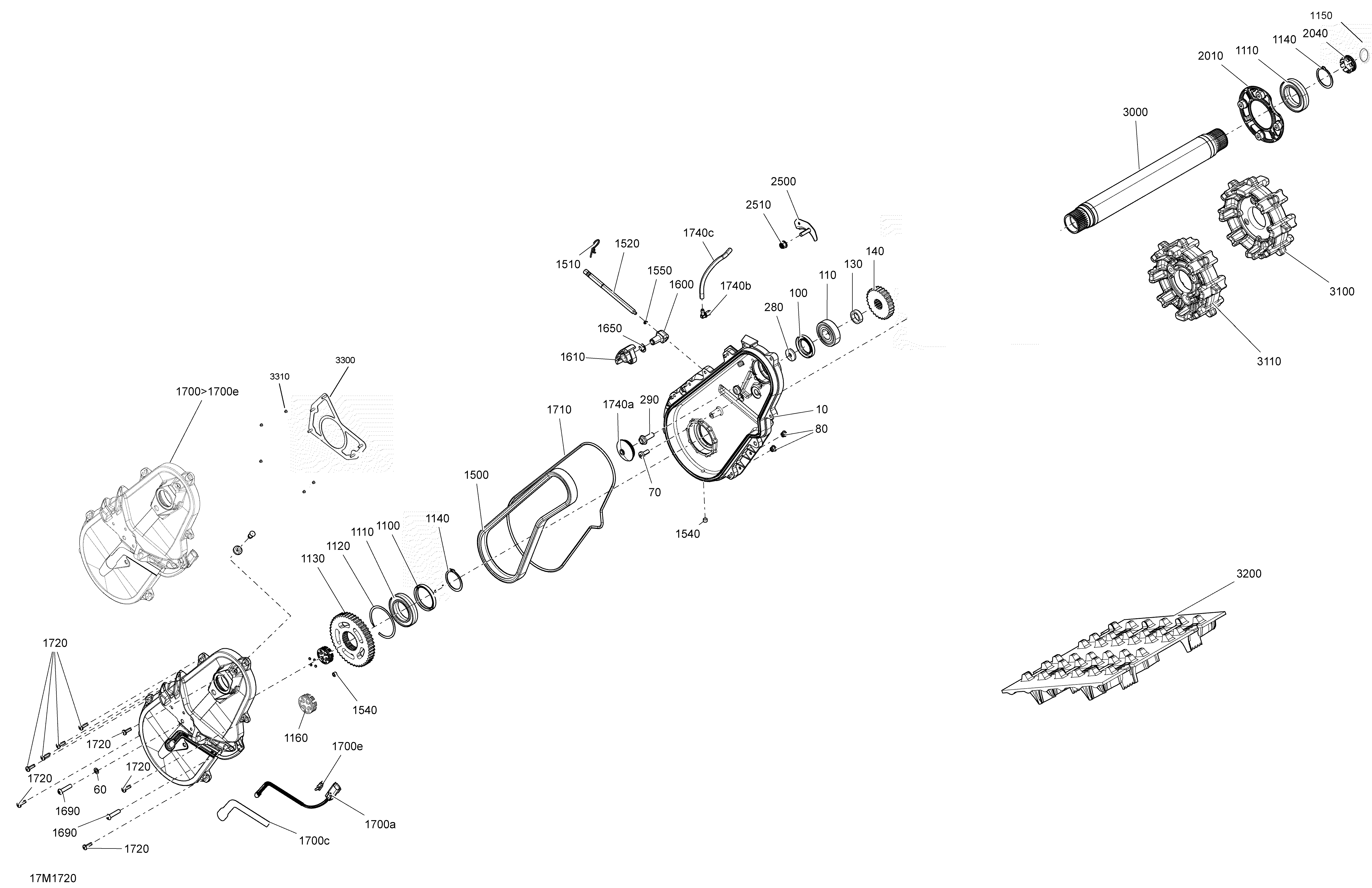

05- Drive System - All Models для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10504153469 Chaincase Ass'yChaincase Ass'y
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
100293200158 SealSeal
-
110293350115 Ball BearingBall Bearing
-
130504152628 ShimShim
-
140504148400 Sprocket, 27 TeethSprocket, 27 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
1140504152572 CirclipCirclip
-
1150293300201 O-ringO-ring
-
1160504153307 Magnetic Plug Ass'y. Includes 1160 to 1160aMagnetic Plug Ass'y. Includes 1160 to 1160a
-
1160a504153308 PlugPlug
-
1500504153266 Drive Chain, 110 LinksDrive Chain, 110 Links
-
1510414575600 Hair PinHair Pin
-
1520504153309 Tensioner ScrewTensioner Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
1700>1700e504153537 Chaincase Cover Ass'y. Includes 1700 to 1700eChaincase Cover Ass'y. Includes 1700 to 1700e
-
1700c504153317 PlatePlate
-
1700e515178223 ClipClip
-
1710293300199 O-RingO-Ring
-
1720250000870 Torx Screw, M6 X 20Torx Screw, M6 X 20
-
1740a504152860 CapCap
-
1740b414580700 Male ConnectorMale Connector
-
1740c415080200 Hose, PolyurethaneHose, Polyurethane
-
2010504153426 Retaining RingRetaining Ring
-
2040504153308 PlugPlug
-
2500504153099 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000504153574 Drive Axle Ass'y. Incl 3100, 3110Drive Axle Ass'y. Incl 3100, 3110
-
3130504153364 Collar Ass'yCollar Ass'y
-
3160207583087 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
3180250200111 WasherWasher
-
3190250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
3200>3200b504153344 Track Ass'y15''X128''X1.25''. Rip Saw. Includes 3200 to 3200bTrack Ass'y15''X128''X1.25''. Rip Saw. Includes 3200 to 3200b
-
3200>3200b504153345 Track Ass'y 15''X128''X1.25''. Ice Ripper. Includes 3200 to 3200bTrack Ass'y 15''X128''X1.25''. Ice Ripper. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
-
3300861805514 PlatePlate
-
3310233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
