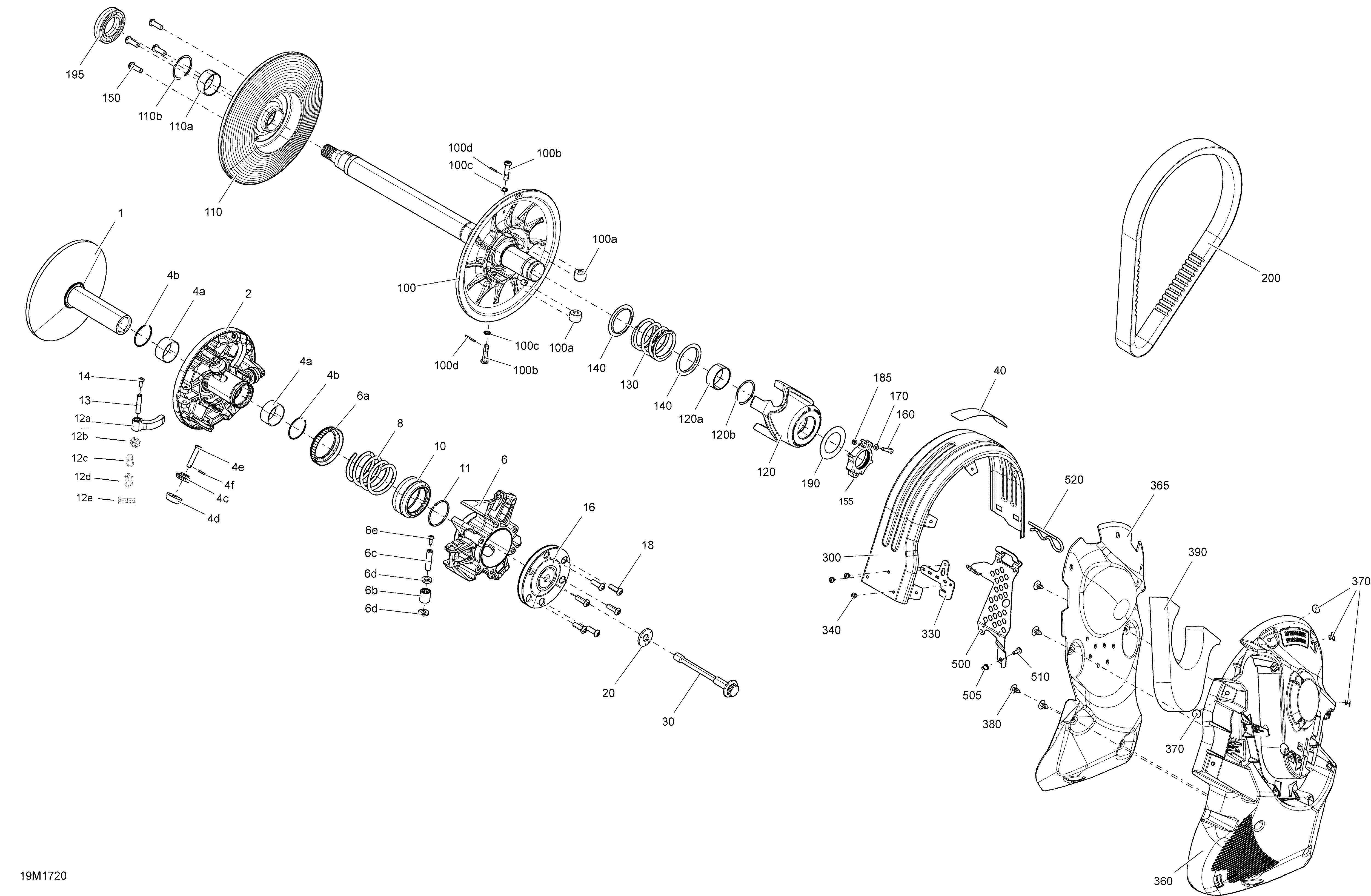

05- Pulley System - AllModels для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
1417224155 Fixed Flange Ass'yFixed Flange Ass'y
-
2417224181 Sliding Flange Ass'y. Include 4a to 4fSliding Flange Ass'y. Include 4a to 4f
-
4a293250389 BushingBushing
-
4b293370117 CirclipCirclip
-
4c417224153 Back Torque RollerBack Torque Roller
-
4d417224034 Torque RollerTorque Roller
-
4e417223992 Axle - 8mmAxle - 8mm
-
4f250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
6417224019 Spyder Ass'y. Includes 6 to 6eSpyder Ass'y. Includes 6 to 6e
-
6a417224002 Spring GuideSpring Guide
-
6b417223808 Roller AssyRoller Assy
-
6c417223989 Axle - 10mmAxle - 10mm
-
6D417224009 Washer-ThrustWasher-Thrust
-
6e250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
8417224168 Clutch SpringClutch Spring
-
10417224003 Seat SpringSeat Spring
-
11293370116 CirclipCirclip
-
12a417224227 Ramp 968Ramp 968
-
12b417224113 Cam MoldedCam Molded
-
12c417224086 Lever-RightLever-Right
-
12d417224114 Lever LeftLever Left
-
12e417224116 Pivot 33mmPivot 33mm
-
13417223631 Axle - 8mmAxle - 8mm
-
14250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
16417223994 Cushion-DriveCushion-Drive
-
18250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
100417127400 Fix Flange Ass'y. Includes 100 to 100dFix Flange Ass'y. Includes 100 to 100d
-
100a417127016 RollerRoller
-
100b417127294 Pivot StudPivot Stud
-
100c250200009 Lock Washer 8 mmLock Washer 8 mm
-
100d250400070 Spring PinSpring Pin
-
110417127317 Sliding Flange Ass'y. Includes 110 to 110bSliding Flange Ass'y. Includes 110 to 110b
-
110a417127318 BushingBushing
-
110b293370049 CirclipCirclip
-
120417127534 Cam Ass'y. Includes 120 to 120bCam Ass'y. Includes 120 to 120b
-
120a417127318 BushingBushing
-
120b293370049 CirclipCirclip
-
130417127137 Green SpringGreen Spring
-
140417127116 Swivel AbutmentSwivel Abutment
-
150250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
155415129604 Adjustment Pulley Ass'yAdjustment Pulley Ass'y
-
160205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
170234051410 Flat Washer M5Flat Washer M5
-
185232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
190417127155 WasherWasher
-
195504152574 Ball BearingBall Bearing
-
200417300391 BeltBelt
-
300417300479 Belt GuardBelt Guard
-
330417300494 BracketBracket
-
340390909200 Avex RivetAvex Rivet
-
360417300480 CVT Air Duct PulleyCVT Air Duct Pulley
-
365417300503 Acoustic PanelAcoustic Panel
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
380414644300 DartDart
-
390417300509 FoamFoam
-
400250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
500417300482 Belt Guard BracketBelt Guard Bracket
-
505293450268 InsertInsert
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
