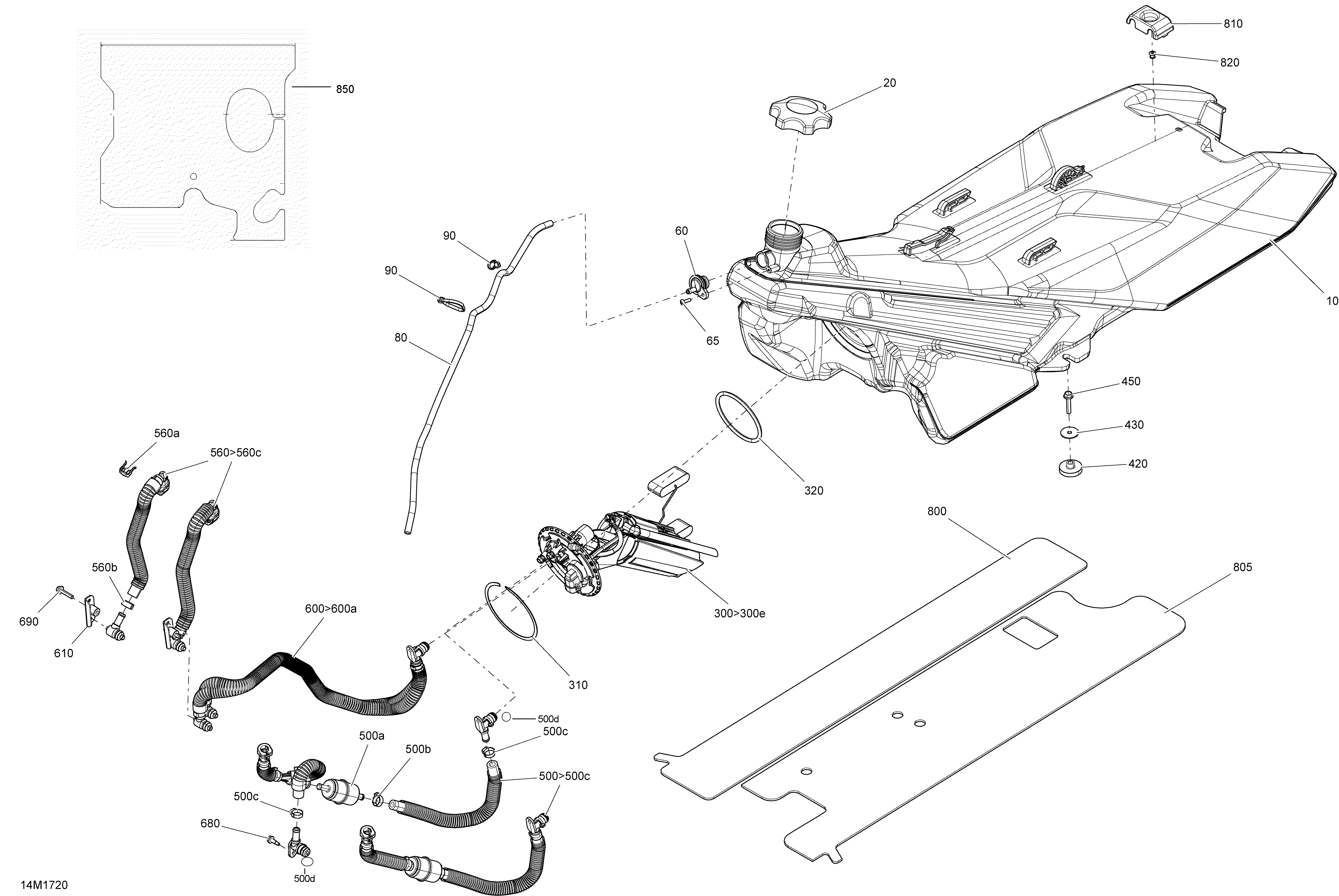

02- Fuel System - All Models для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10513033759 Fuel TankFuel Tank
-
20513033860 Fuel Tank Cap. Model North AmericaFuel Tank Cap. Model North America
-
20513033861 Fuel Tank Cap. Model EuropeFuel Tank Cap. Model Europe
-
60513033849 Check ValveCheck Valve
-
65250000918 Truss Torx Screw K40 X 16Truss Torx Screw K40 X 16
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
300>300e513033760 Gas Pump Ass'y. Includes 300 to 300eGas Pump Ass'y. Includes 300 to 300e
-
300a415130069 Gas FilterGas Filter
-
300b415130070 RegulatorRegulator
-
300c415130071 O-RingO-Ring
-
300d415130072 O-RingO-Ring
-
300e415130087 Fuel Level SensorFuel Level Sensor
-
310513033798 CirclipCirclip
-
320513033862 O-RingO-Ring
-
420513033807 BushingBushing
-
430503193995 WasherWasher
-
450207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
500>500d513033761 Hose Ass'y. Includes 500 to 500dHose Ass'y. Includes 500 to 500d
-
500a513033719 FilterFilter
-
500b293650125 Oetiker ClampOetiker Clamp
-
500c293650140 Oetiker ClampOetiker Clamp
-
500d513033668 O-RingO-Ring
-
560>560c513033762 Hose Ass'y. Includes 560 to 560cHose Ass'y. Includes 560 to 560c
-
560b293650125 Oetiker ClampOetiker Clamp
-
560c293650140 Oetiker ClampOetiker Clamp
-
600>600a513033763 Hose Ass'y. Includes 600 to 600aHose Ass'y. Includes 600 to 600a
-
600a293650140 Oetiker ClampOetiker Clamp
-
610513033833 Braket Ass'yBraket Ass'y
-
680250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
690207552544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
800513033845 RH Insulated FoamRH Insulated Foam
-
805513033855 LH Insulated FoamLH Insulated Foam
-
810513033826 Tank GuideTank Guide
-
820390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
850513033878 FoamFoam
