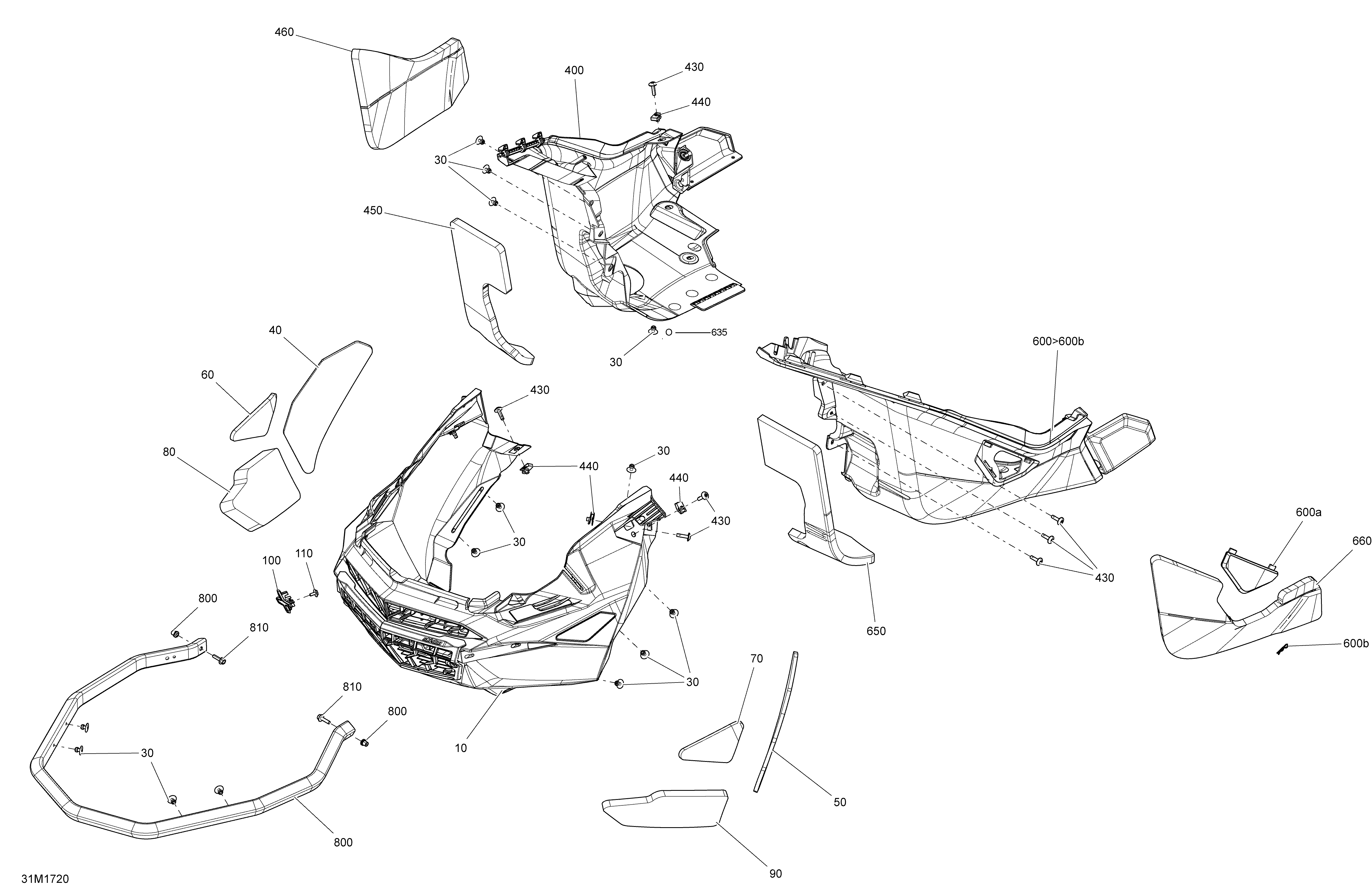

09- Bottom Pan - All Models для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10502007456 Front Bottom PanFront Bottom Pan
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007463 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007653 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
60502007545 RH Bottom Pan Central FoamRH Bottom Pan Central Foam
-
70502007546 LH Bottom Pan Central FoamLH Bottom Pan Central Foam
-
80502007465 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007466 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
100502007645 Front Bottom Pan Logo. Package XFront Bottom Pan Logo. Package X
-
110250000805 Plastite Screw M4 X 10. Package XPlastite Screw M4 X 10. Package X
-
400502007458 RH Bottom PanRH Bottom Pan
-
430250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
440250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
450502007547 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
460502007548 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
635250200025 WasherWasher
-
650502007549 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
660502007550 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
800502007460 Front BumperFront Bumper
-
810207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
600>600b502007634 LH Bottom Pan Ass'y. Includes 600 to 600bLH Bottom Pan Ass'y. Includes 600 to 600b
-
600a502007576 Bottom Pan DoorBottom Pan Door
-
600b269800431 HairpinHairpin
