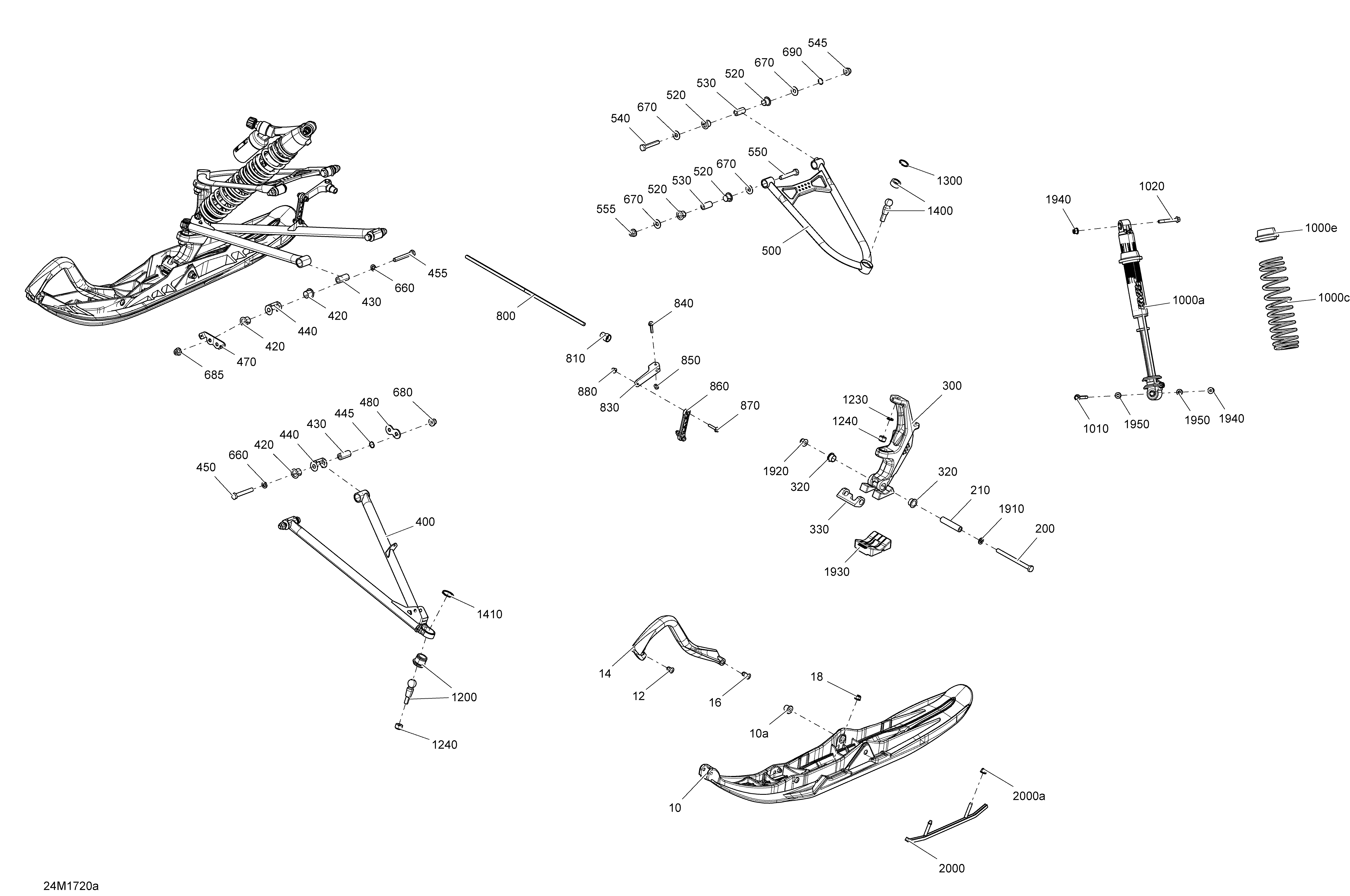

07- Front Suspension And Ski - All Models для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10505072854 Deep Black LH Pilot 5.7 Ski. Ski 5.7Deep Black LH Pilot 5.7 Ski. Ski 5.7
-
10505072855 Deep Black RH Pilot 5.7 Ski. Ski 5.7Deep Black RH Pilot 5.7 Ski. Ski 5.7
-
10505073786 Deep Black LH Pilot TS Ski. Ski TS. Includes 10 to 10aDeep Black LH Pilot TS Ski. Ski TS. Includes 10 to 10a
-
10505073796 Deep Black RH Pilot TS Ski. Ski TS. Includes 10 to 10aDeep Black RH Pilot TS Ski. Ski TS. Includes 10 to 10a
-
10505074071 Orange Crush LH Pilot 5.7 Ski. Package X. Includes 10 to 10aOrange Crush LH Pilot 5.7 Ski. Package X. Includes 10 to 10a
-
10505074072 Orange Crush RH Pilot 5.7 Ski. Package X. Includes 10 to 10aOrange Crush RH Pilot 5.7 Ski. Package X. Includes 10 to 10a
-
10505074067 Orange Crush LH Pilot TS Ski. Package X. Includes 10 to 10aOrange Crush LH Pilot TS Ski. Package X. Includes 10 to 10a
-
10505074068 Orange Crush RH Pilot TS Ski. Package X. Includes 10 to 10aOrange Crush RH Pilot TS Ski. Package X. Includes 10 to 10a
-
10a505071781 Ski BushingSki Bushing
-
12505071812 RetainerRetainer
-
14505070963 Black HandleBlack Handle
-
16505072133 RetainerRetainer
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
300505074020 Bare - LH Ski Leg 10. Package XBare - LH Ski Leg 10. Package X
-
300505074021 Bare - RH Ski Leg 10. Package XBare - RH Ski Leg 10. Package X
-
300505073708 Black - LH Ski Leg 10. Package AdrenalineBlack - LH Ski Leg 10. Package Adrenaline
-
300505073711 Black - RH Ski Leg 10. Package AdrenalineBlack - RH Ski Leg 10. Package Adrenaline
-
300505074016 White - LH Ski Leg 10. Package XWhite - LH Ski Leg 10. Package X
-
300505074017 White - RH Ski Leg 10. Package XWhite - RH Ski Leg 10. Package X
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Ski StopperSki Stopper
-
400505073720 RH Lower Arm 42''RH Lower Arm 42''
-
400505073714 LH Lower Arm 42''LH Lower Arm 42''
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505073724 LH Upper Arm 42''LH Upper Arm 42''
-
500505073728 RH Upper Arm 42''RH Upper Arm 42''
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000a505074037 Front Shock HPG. Package XFront Shock HPG. Package X
-
1000a505074127 Front Shock. Package AdrenalineFront Shock. Package Adrenaline
-
1000c505074046 SpringSpring
-
1000e503194270 Spring StopperSpring Stopper
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1200505074009 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
-
1910503192496 WasherWasher
-
1920233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
1930505072594 Ski StopperSki Stopper
-
1940233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1950505073892 SpacerSpacer
-
2000860201044 Carbide Runner Kit. Ski 5.7. Includes 2000 to 2000aCarbide Runner Kit. Ski 5.7. Includes 2000 to 2000a
-
2000a233281414 Hex. Flanged Elastic Nut M8. Ski 5.7Hex. Flanged Elastic Nut M8. Ski 5.7
