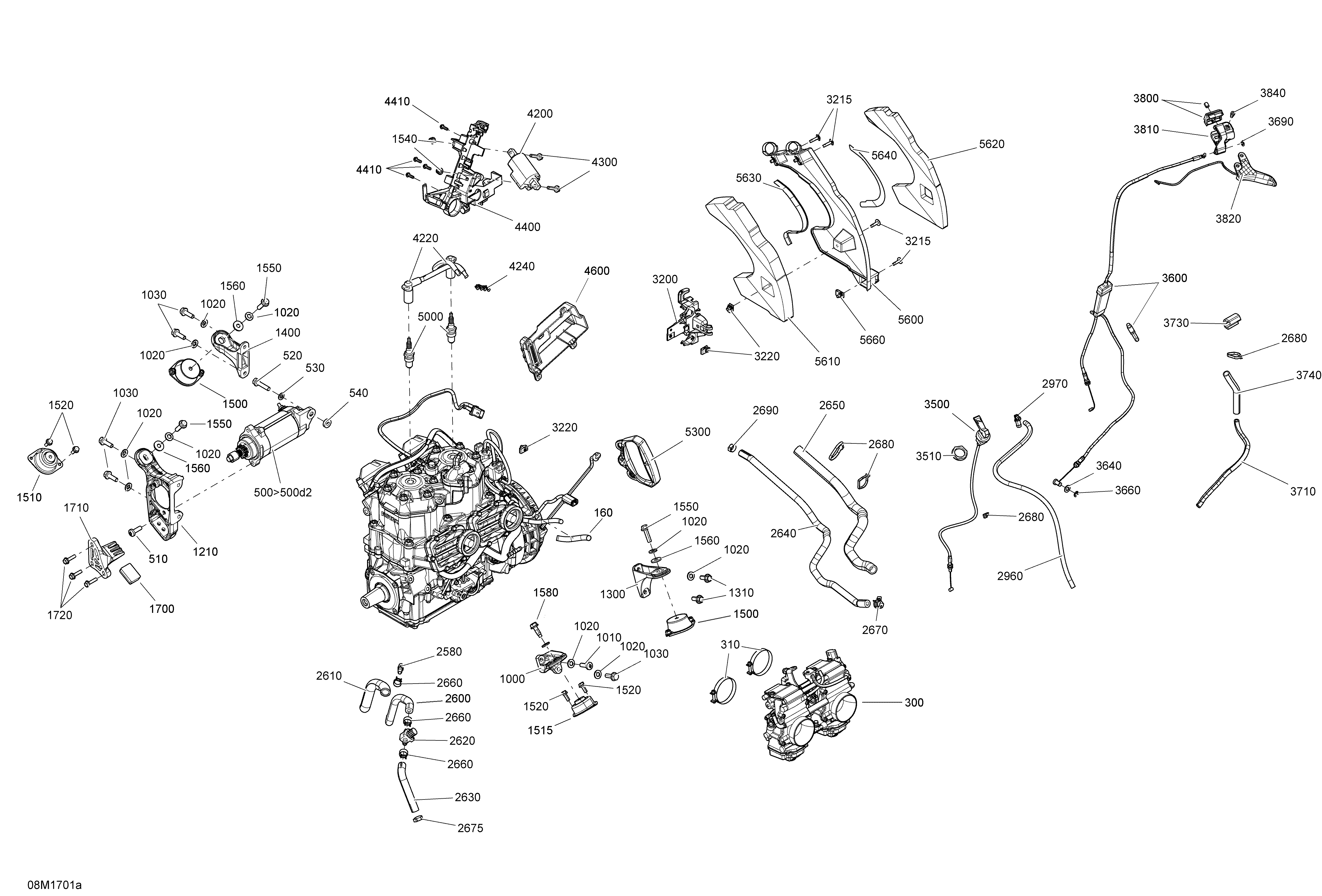

01- Engine And Engine Support для BRP Ski-Doo SUMMIT - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
160415079900 Tubing 10 mmTubing 10 mm
-
220420924724 Hose NippleHose Nipple
-
300403138815 Carburetor Kit, TM40-B418Carburetor Kit, TM40-B418
-
310512059835 Gemi ClampGemi Clamp
-
500>500d2515177389 Starter. Model with Electric Starter. Includes 500 to 500d2Starter. Model with Electric Starter. Includes 500 to 500d2
-
500a415129441 Clutch KitClutch Kit
-
500b>500b3415129333 Brush Kit. Includes 500b to 500b3Brush Kit. Includes 500b to 500b3
-
500b1410204500 Flat WasherFlat Washer
-
500b2415129333 Brush KitBrush Kit
-
500b3410212100 Brush KitBrush Kit
-
500c415129341 Starter BoltStarter Bolt
-
500d>500d2415129342 O-Ring Kit. Includes 500d to 500d2O-Ring Kit. Includes 500d to 500d2
-
500d1415129342 O-Ring KitO-Ring Kit
-
500d2278000695 O-RingO-Ring
-
510250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip. Model with Electric StarterTorx Screw M8 X 1.25 X 25, Scotch Grip. Model with Electric Starter
-
520207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Model with Electric StarterHex Flanged Screw M8 X 35, Scotch Grip. Model with Electric Starter
-
530250200008 Flat Washer With Teflon 8 mm. Model with Electric StarterFlat Washer With Teflon 8 mm. Model with Electric Starter
-
540515176500 Washer. Model with Electric StarterWasher. Model with Electric Starter
-
1000512060478 Rear Support, PTORear Support, PTO
-
1010250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1030207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1200512060699 Front Support, PTOFront Support, PTO
-
1300512060559 Rear Support, MAGRear Support, MAG
-
1310207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1400512060469 Front Support, MAGFront Support, MAG
-
1500512060729 Rubber MountRubber Mount
-
1510512060387 Rubber MountRubber Mount
-
1515512060448 Rubber MountRubber Mount
-
1520207561644 Hex.Fla. Screw M6 X 1.0 X 16,Scotch GripHex.Fla. Screw M6 X 1.0 X 16,Scotch Grip
-
1540233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1550207683044 Hex. Flanged Screw M8 X 1.25 X 30Hex. Flanged Screw M8 X 1.25 X 30
-
1560503183200 Washer, YellowWasher, Yellow
-
1580250000796 Hex. Flanged Screw M8 X 1.25 X 25Hex. Flanged Screw M8 X 1.25 X 25
-
1700512060627 StopperStopper
-
1710512060576 Stopper SupportStopper Support
-
1720207562544 Hex. Flanged Screw M6X1.0X25,Scotch GrHex. Flanged Screw M6X1.0X25,Scotch Gr
-
2580512060196 Male Connector 1/8''-27 NPTMale Connector 1/8''-27 NPT
-
2590293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
2600512060355 Hose FormedHose Formed
-
2610415080000 Tubing 16 mmTubing 16 mm
-
2620512059324 Valve 5/16”Valve 5/16”
-
2630512060353 Hose FormedHose Formed
-
2640512060347 Hose FormedHose Formed
-
2650415080000 Tubing 16 mmTubing 16 mm
-
2660414655700 Spring ClampSpring Clamp
-
2670293650214 Norma Spring ClampNorma Spring Clamp
-
2675293650125 Oetiker ClampOetiker Clamp
-
2680414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2690293650046 Oetiker Clamp, 14.5-706ROetiker Clamp, 14.5-706R
-
2710293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2950572045500 T-FittingT-Fitting
-
2960415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
2970414580700 Male ConnectorMale Connector
-
3200512060298 Solenoid SupportSolenoid Support
-
3215250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3500512060672 Choke CableChoke Cable
-
3510512060671 Plastic NutPlastic Nut
-
3600512060893 Throttle CableThrottle Cable
-
3640234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
3660414753500 CirclipCirclip
-
3690414274500 CirclipCirclip
-
3710515175442 Tubing 6 mmTubing 6 mm
-
3730512060313 ProtectorProtector
-
3740415079900 Tubing 10 mmTubing 10 mm
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061049 Throttle Handle Ass'yThrottle Handle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512059968 Ignition CoilIgnition Coil
-
4220512060291 CableCable
-
4240410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
4300207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
4400512060924 Coils SupportCoils Support
-
4410241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
4600512060680 Calibrated Module, 600Calibrated Module, 600
-
5000415128524 Spark Plug, NGK BR9ECS, 0.8 mmSpark Plug, NGK BR9ECS, 0.8 mm
-
5300512060136 Starter GripStarter Grip
-
5600512060338 Noise ShieldNoise Shield
-
5610512060341 Inner Noise FoamInner Noise Foam
-
5620512060342 Outer Noise FoamOuter Noise Foam
-
5630512060574 Heat ShieldHeat Shield
-
5640512060575 Heat ShieldHeat Shield
-
5660250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
