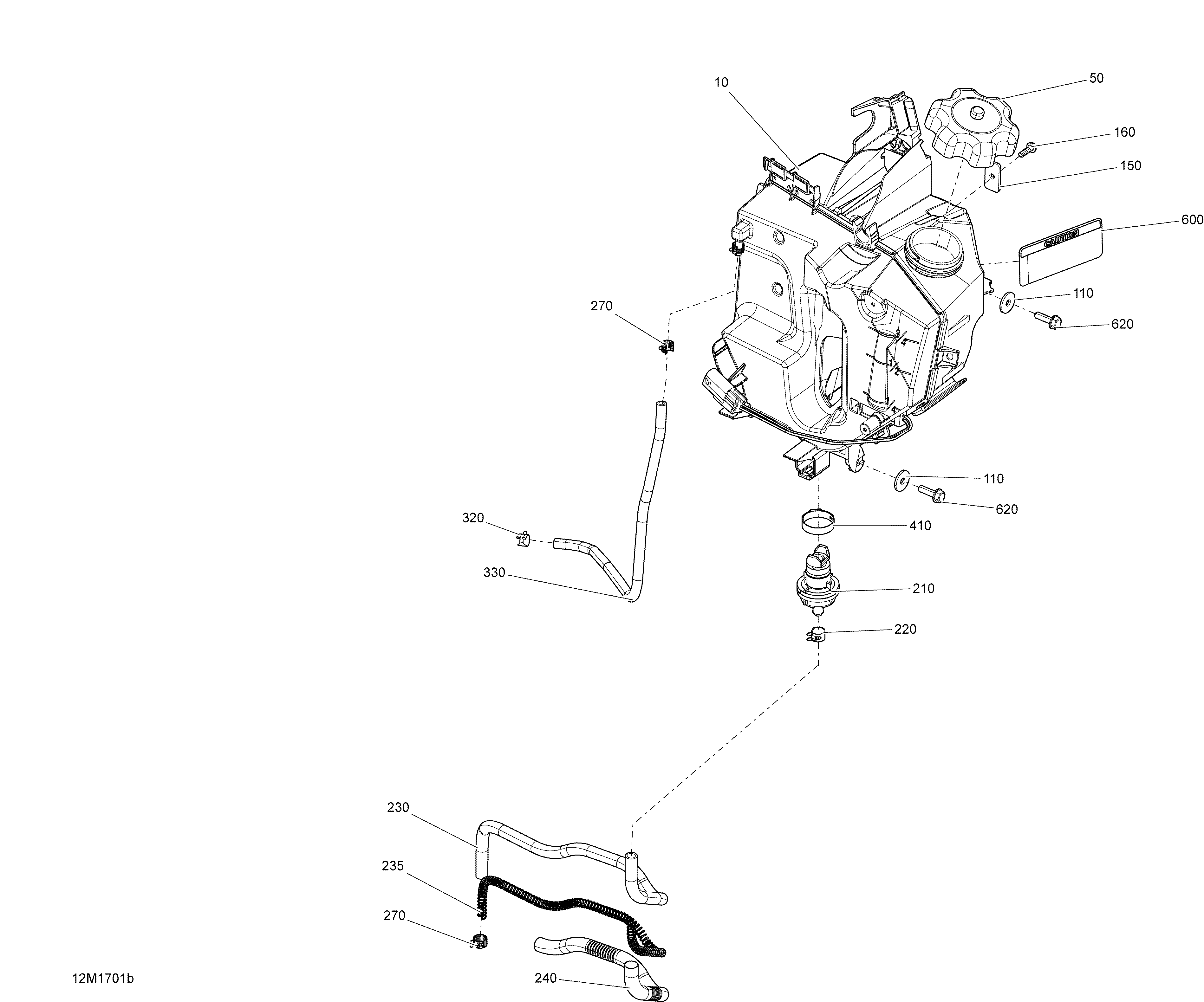

02- Oil System для BRP Ski-Doo SUMMIT - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
10519000312 Oil TankOil Tank
-
50519000273 CapCap
-
110224061201 Flat WasherFlat Washer
-
150519000179 BracketBracket
-
160241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
210519000242 Oil FilterOil Filter
-
220414415200 Spring ClampSpring Clamp
-
230415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
235519000196 SpringSpring
-
240415079900 Tubing 10 mmTubing 10 mm
-
270414420700 Spring ClampSpring Clamp
-
320414554800 Spring ClampSpring Clamp
-
330415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
410293650099 Crimp Clamp, 28.6-706RCrimp Clamp, 28.6-706R
-
600516007443 Warning Decal / Oil NoticeWarning Decal / Oil Notice
-
620250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
