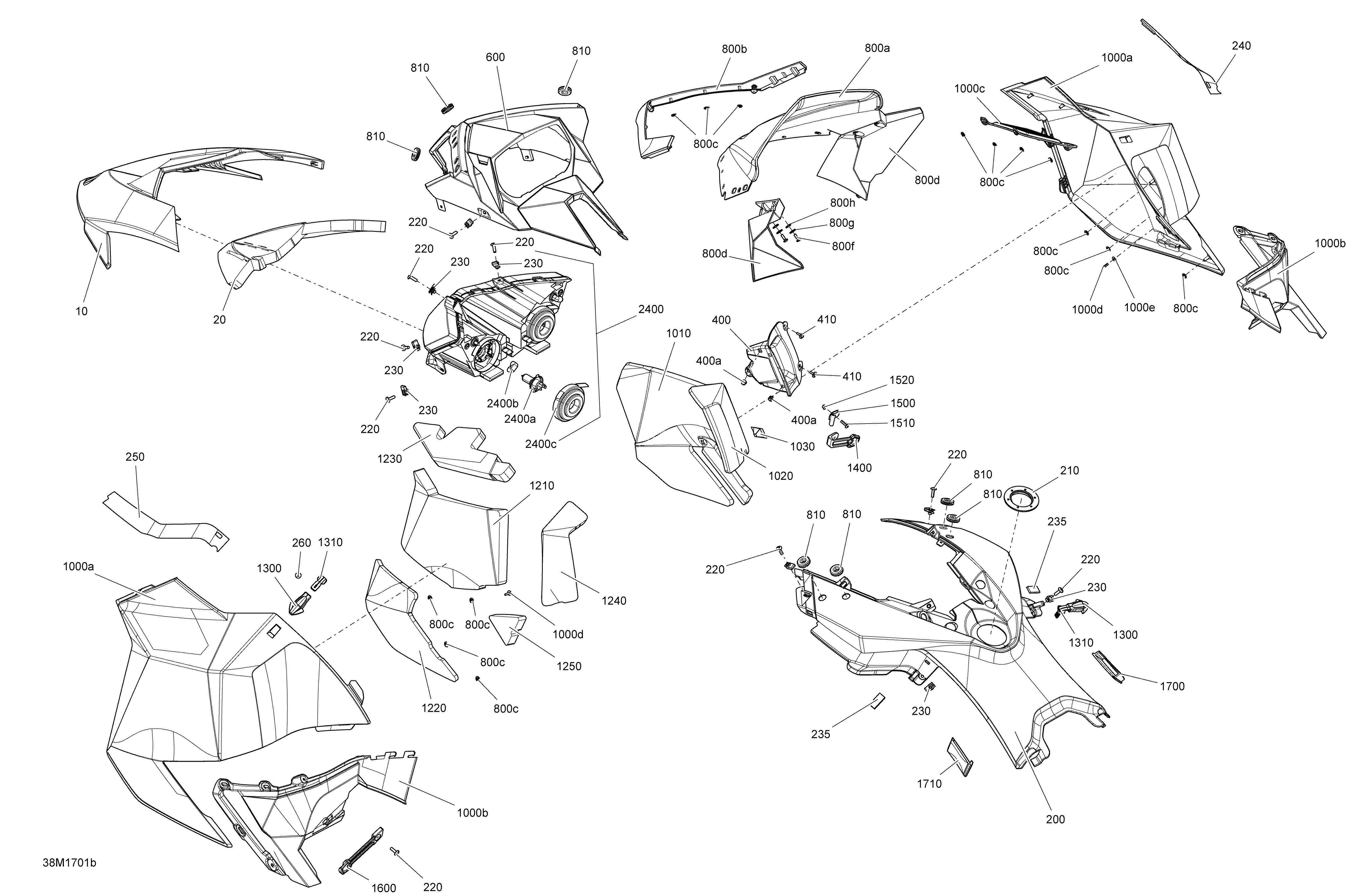

09- Hood для BRP Ski-Doo SUMMIT - 2-STROKE - 600 CARB - 2017
-
№АртикулНазвание
-
10517304530 Deep Black HoodDeep Black Hood
-
20517304913 Hood FoamHood Foam
-
200517303923 Deep Black ConsoleDeep Black Console
-
210517304518 Console NutConsole Nut
-
220250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
230250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
260250000721 Torx ScrewTorx Screw
-
410250000725 Screw M4 X 16Screw M4 X 16
-
600517304575 Gauge SupportGauge Support
-
810517303756 GrommetGrommet
-
1010517304883 RH Center FoamRH Center Foam
-
1020517304884 RH Panel Rear FoamRH Panel Rear Foam
-
1030517305451 Heat ShieldHeat Shield
-
1210517304887 LH Panel Center FoamLH Panel Center Foam
-
1220517304888 LH Panel Lower FoamLH Panel Lower Foam
-
1230517304889 LH Panel Upper FoamLH Panel Upper Foam
-
1240517304890 LH Panel Rear FoamLH Panel Rear Foam
-
1250517304891 FoamFoam
-
1300517304075 End Piece LatchEnd Piece Latch
-
1310517303981 Panel LatchPanel Latch
-
1400517303612 RH Panel LatchRH Panel Latch
-
1500517304221 Latch SupportLatch Support
-
1510250000792 Torx Screw M5 X 20Torx Screw M5 X 20
-
1600517303808 LH Panel LatchLH Panel Latch
-
1700513033471 RH Panel ClipRH Panel Clip
-
1710513033472 LH Panel ClipLH Panel Clip
-
1000a517304029 Deep Black RH PanelDeep Black RH Panel
-
1000a517304030 Deep Black LH PanelDeep Black LH Panel
-
1000b517303671 Deep Black RH Moulding PanelDeep Black RH Moulding Panel
-
1000b517303673 Deep Black LH Moulding PanelDeep Black LH Moulding Panel
-
1000c517303622 GrillGrill
-
1000d241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
1000e234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
2400>2400c517304194 RH Headlamp Ass'y. Includes 2400 to 2400cRH Headlamp Ass'y. Includes 2400 to 2400c
-
2400>2400c517304195 LH Headlamp Ass'y. Includes 2400 to 2400cLH Headlamp Ass'y. Includes 2400 to 2400c
-
2400a515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
2400b515176498 CapCap
-
2400c515176499 CoverCover
-
400>400b517304322 Black RH Console. Includes 400 to 400bBlack RH Console. Includes 400 to 400b
-
400a275500241 Black - CapBlack - Cap
-
800a517304395 Windsheld 375mmWindsheld 375mm
-
800b517303607 Windshield SupportWindshield Support
-
800c732610072 Push NutPush Nut
-
800d517303604 RH Air DeflectorRH Air Deflector
-
800d517303605 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
