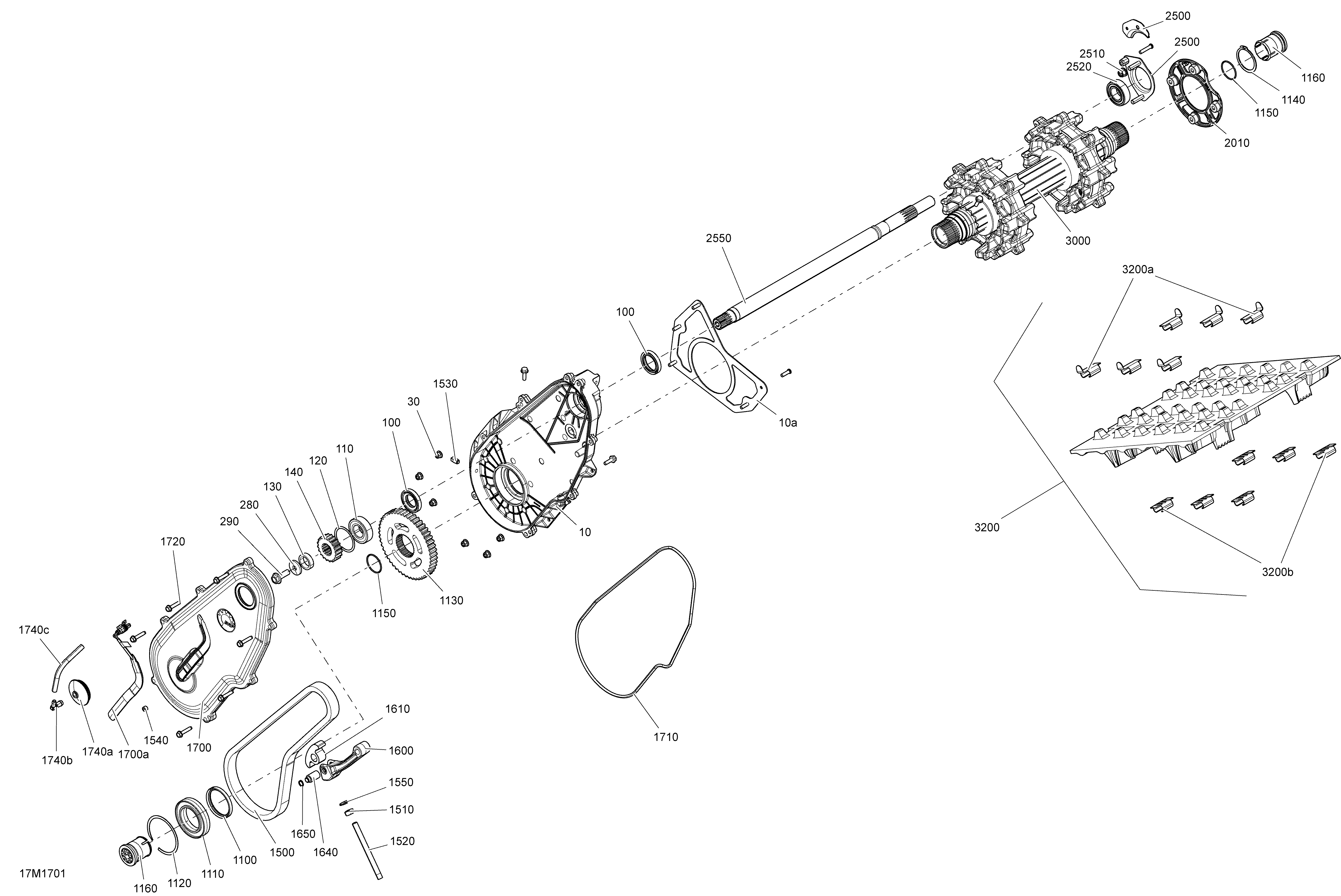

05- Drive System для BRP Ski-Doo SUMMIT - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10>10a504153405 Chaincase. Package SP 146, Burton. Includes 10 to 10aChaincase. Package SP 146, Burton. Includes 10 to 10a
-
10>10a504153408 Chaincase. Package X-T3 174, SP-T3 174. Includes 10 to 10aChaincase. Package X-T3 174, SP-T3 174. Includes 10 to 10a
-
10a504153351 Plate. Package X-T3 174, SP-T3 174Plate. Package X-T3 174, SP-T3 174
-
100415049300 Oil SealOil Seal
-
110293350055 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504152030 Sprocket, 19 Teeth. Package X-T3 174, SP-T3 174, BurtonSprocket, 19 Teeth. Package X-T3 174, SP-T3 174, Burton
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100504152571 SealSeal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152581 Sprocket, 49 Teeth. Package Burton, SP 146Sprocket, 49 Teeth. Package Burton, SP 146
-
1130504153267 Sprocket, 49 Teeth. Package X-T3 174, SP-T3 174Sprocket, 49 Teeth. Package X-T3 174, SP-T3 174
-
1140504152572 CirclipCirclip
-
1150293300122 O-RingO-Ring
-
1160504152619 Magnetic CapMagnetic Cap
-
1500504152629 Drive Chain, 104 Links. Package BurtonDrive Chain, 104 Links. Package Burton
-
1500504153266 Drive Chain, 110 Links. Package X-T3 174, SP-T3 174Drive Chain, 110 Links. Package X-T3 174, SP-T3 174
-
1510232006414 Hex. Nut M10 X 1.5Hex. Nut M10 X 1.5
-
1520504152602 Adjustment ScrewAdjustment Screw
-
1530504152854 Magnetic Plug 1/8 - 27 NPTF. Package Burton, SP 146Magnetic Plug 1/8 - 27 NPTF. Package Burton, SP 146
-
1540250500012 Allen Drive Plug 1/8-27 PTF. Package X-T3 174, SP-T3 174Allen Drive Plug 1/8-27 PTF. Package X-T3 174, SP-T3 174
-
1550250200100 Bonded WasherBonded Washer
-
1600504153429 Tensioner chainTensioner chain
-
1610504152739 Slider ChainSlider Chain
-
1640504152841 Tensioner AxleTensioner Axle
-
1650504152282 CirclipCirclip
-
1700>1700a504153410 Chaincase Cover Ass'y. Package SP 146, Burton. Includes 1700 to 1700aChaincase Cover Ass'y. Package SP 146, Burton. Includes 1700 to 1700a
-
1700>1700a504153415 Chaincase Cover Ass'y. Package X-T3 174, SP-T3 174. Includes 1700 to 1700aChaincase Cover Ass'y. Package X-T3 174, SP-T3 174. Includes 1700 to 1700a
-
1700a504152896 Sensor. Package SP 146, BurtonSensor. Package SP 146, Burton
-
1700a504153275 Sensor. Package X-T3 174, SP-T3 174Sensor. Package X-T3 174, SP-T3 174
-
1710293300130 O-Ring. Package SP 146, BurtonO-Ring. Package SP 146, Burton
-
1710293300177 O-Ring. Package X-T3 174, SP-T3 174O-Ring. Package X-T3 174, SP-T3 174
-
1720210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
1740a504152860 CapCap
-
1740b414580700 Male ConnectorMale Connector
-
1740c415080200 Hose, Polyurethane, iD 5.7mmHose, Polyurethane, iD 5.7mm
-
2010504152949 Housing BearingHousing Bearing
-
2500504153418 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
3000504153083 Drive Axle Ass'y. Package SP, BurtonDrive Axle Ass'y. Package SP, Burton
-
3000504153302 Drive Axle Ass'y. Package X-T3 174, SP-T3 174Drive Axle Ass'y. Package X-T3 174, SP-T3 174
-
3200>3200b504153198 Track Ass'y 16'' X 146'' X 2.50''. Package SP 146. Includes 3200 to 3200bTrack Ass'y 16'' X 146'' X 2.50''. Package SP 146. Includes 3200 to 3200b
-
3200>3200b504153199 Track Ass'y 16'' X 154'' X 2.50''. Package Burton. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 2.50''. Package Burton. Includes 3200 to 3200b
-
3200>3200b504153234 Track Ass'y T4 174''. Package X-T3 174, SP-T3 174. Includes 3200 to 3200bTrack Ass'y T4 174''. Package X-T3 174, SP-T3 174. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
