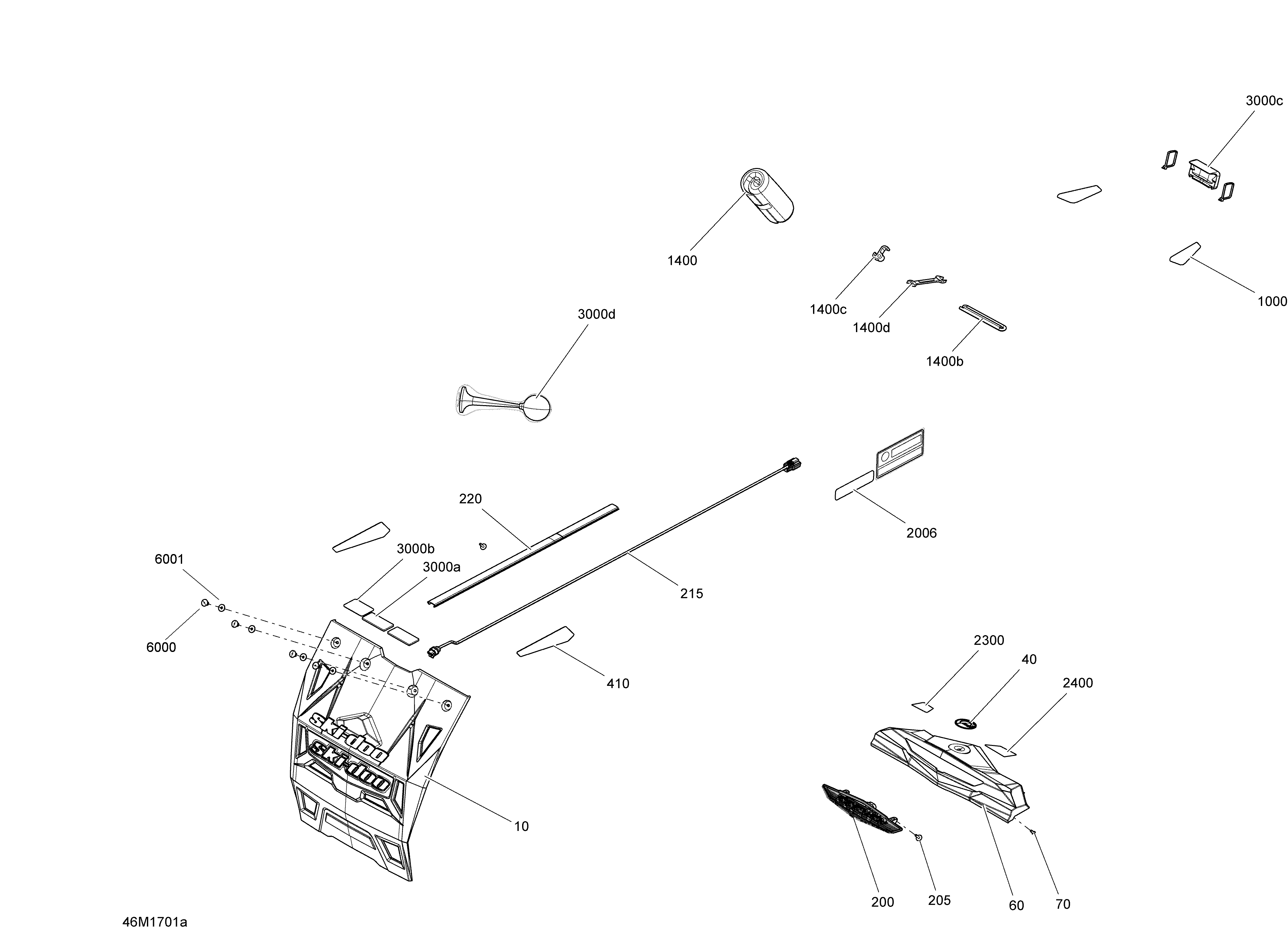

09- Utilities для BRP Ski-Doo SUMMIT - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10520001300 Snow Guard, Black W/Grey Lett.Snow Guard, Black W/Grey Lett.
-
40516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
60511000810 Light FairingLight Fairing
-
70241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178064 Wiring HarnessWiring Harness
-
220520000829 Radiator Trim. Model 146, 154Radiator Trim. Model 146, 154
-
220520001413 Radiator Trim. Model 174Radiator Trim. Model 174
-
410520001239 Red RH Rear Reflector. Model North AmericaRed RH Rear Reflector. Model North America
-
410520001241 Yellow RH Rear Reflector. Model EuropeYellow RH Rear Reflector. Model Europe
-
410520001238 Red LH Rear Reflector. Model North AmericaRed LH Rear Reflector. Model North America
-
410520001240 Yellow LH Rear Reflector. Model EuropeYellow LH Rear Reflector. Model Europe
-
1000520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
1000520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
1400>1400d520001590 Tools Kit. Includes 1400 to 1400dTools Kit. Includes 1400 to 1400d
-
1400b412500200 Starter Rope, MeterStarter Rope, Meter
-
1400c529000060 Starter GripStarter Grip
-
1400d529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
2006516006804 CE Decal. Model EuropeCE Decal. Model Europe
-
2300516006914 Security Label, XSSecurity Label, XS
-
2400516005058 Warning Decal, SafetyWarning Decal, Safety
-
3000a520000271 Amber Reflector. Model EuropeAmber Reflector. Model Europe
-
3000b415037900 White Reflector. Model EuropeWhite Reflector. Model Europe
-
3000c520000871 Reflector Support. Model EuropeReflector Support. Model Europe
-
3000d549011291 Horn. Model EuropeHorn. Model Europe
-
6000860201222 Ski And Snowboard Rack KITSki And Snowboard Rack KIT
-
6001517124300 WasherWasher
