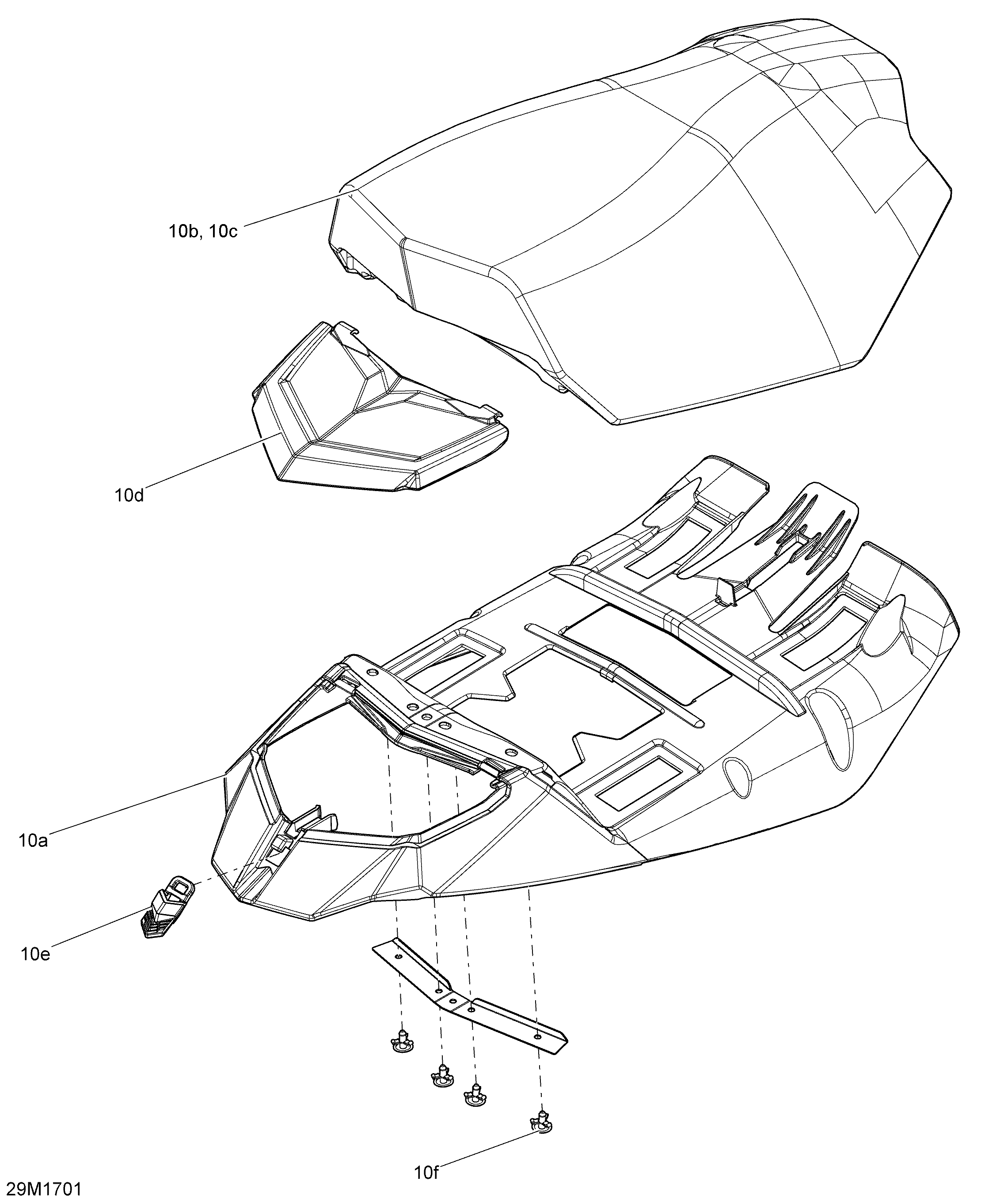

09- Seat для BRP Ski-Doo SUMMIT - 2-STROKE - 800R E-TEC - 2017
-
№АртикулНазвание
-
10a510005407 Seat Base, BURTON. Package Burton, All modelsSeat Base, BURTON. Package Burton, All models
-
10a510005938 Seat Base, Yellow Sunburst. Package SP-T3, Model: CKHA, CKHBSeat Base, Yellow Sunburst. Package SP-T3, Model: CKHA, CKHB
-
10a510005574 Seat Base, Black. Package SP-T3, Model: CKHC, CKHDSeat Base, Black. Package SP-T3, Model: CKHC, CKHD
-
10a510005640 Seat Base Extreme, Orange Crush. Package X-T3, Model: TEHBSeat Base Extreme, Orange Crush. Package X-T3, Model: TEHB
-
10a510005574 Seat Base, Black. Package X-T3, Model: TEHESeat Base, Black. Package X-T3, Model: TEHE
-
10b510006105 Seat Foam, BURTON. Package Burton, All modelsSeat Foam, BURTON. Package Burton, All models
-
10b510005576 Seat Foam. Package SP-T3, Model: CKHC, CKHDSeat Foam. Package SP-T3, Model: CKHC, CKHD
-
10c510006106 Seat Cover, BURTON. Package Burton, All modelsSeat Cover, BURTON. Package Burton, All models
-
10c510006282 Seat Cover, Black/Yellow. Package SP-T3 CKHA, CKHBSeat Cover, Black/Yellow. Package SP-T3 CKHA, CKHB
-
10c510005729 Seat Cover, All Black. Package SP-T3 CKHC, CKHDSeat Cover, All Black. Package SP-T3 CKHC, CKHD
-
10c510006278 Seat Cover, Black/Orange. Package X-T3 TEHBSeat Cover, Black/Orange. Package X-T3 TEHB
-
10c510006284 Seat Cover, All Black. Package X-T3 TEHESeat Cover, All Black. Package X-T3 TEHE
-
10d510005940 Cover, Yellow Sunburst. Package SP-T3 CKHA, CKHBCover, Yellow Sunburst. Package SP-T3 CKHA, CKHB
-
10d510005622 Cover Black. Package SP-T3 CKHC, CKHDCover Black. Package SP-T3 CKHC, CKHD
-
10d510005642 Cover, Orange Crush. Package X-T3 TEHBCover, Orange Crush. Package X-T3 TEHB
-
10d510005622 Cover Black. Package X-T3 TEHECover Black. Package X-T3 TEHE
-
10e510005623 LatchLatch
-
10f293150067 RivetRivet
-
30510005386 Seat Belt, Black. Package Burton, All modelsSeat Belt, Black. Package Burton, All models
