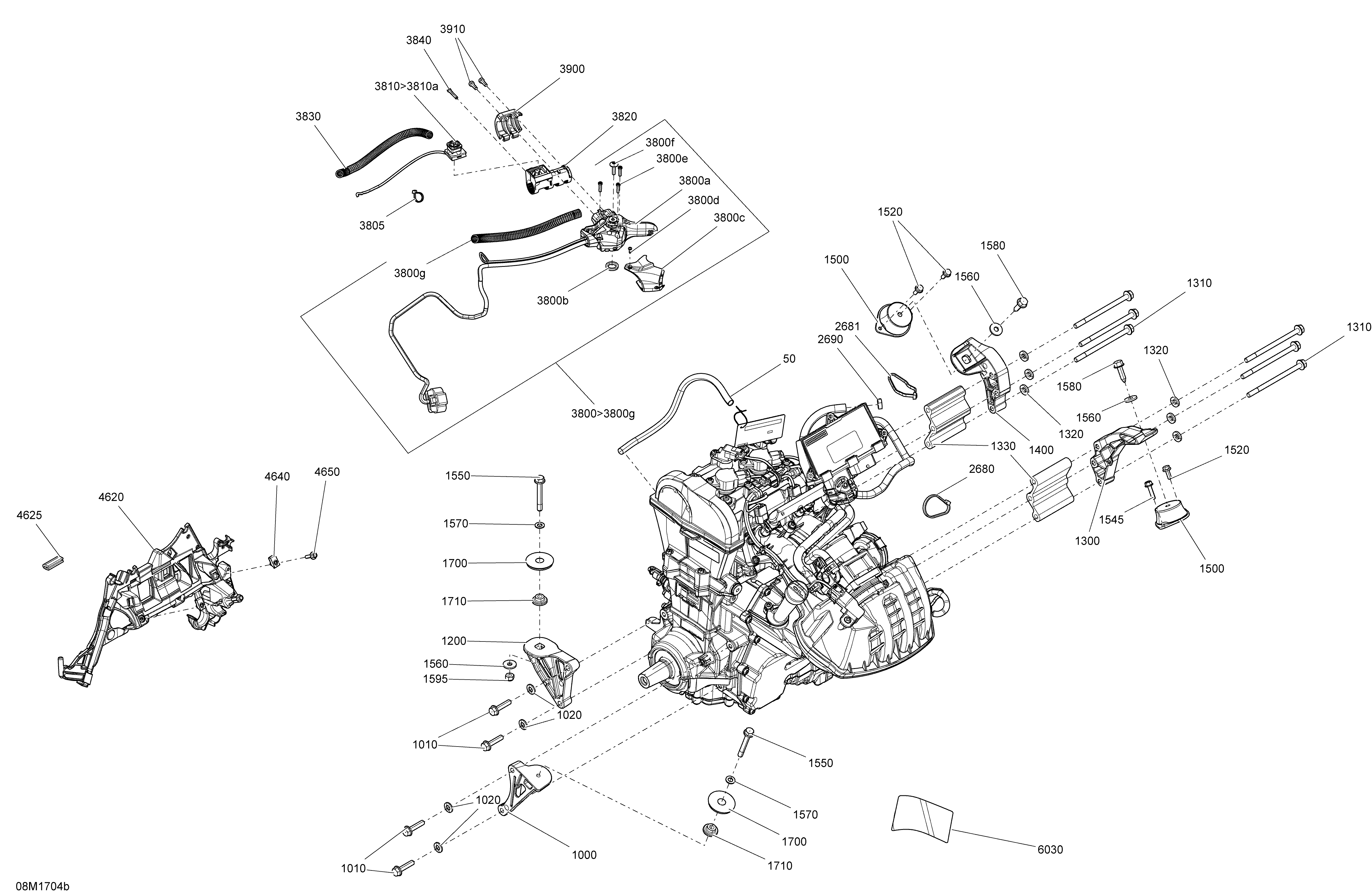

01- Engine - All Models для BRP Ski-Doo TUNDRA - 4-STROKE - LT-SPORT - 2017
-
№АртикулНазвание
-
50512061067 Protector TubeProtector Tube
-
1000512061139 Rear Support PTORear Support PTO
-
1010207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1200512061140 Front Support PTOFront Support PTO
-
1300512061142 Rear Support MAGRear Support MAG
-
1310230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
1320250200157 Conical Spring Washer M8Conical Spring Washer M8
-
1330512060505 ShimShim
-
1400512061141 Front Support MAGFront Support MAG
-
1500512060729 Rubber MountRubber Mount
-
1520207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
1545207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
1550207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
1560503183200 Washer, YellowWasher, Yellow
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1580250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1700512061203 StopperStopper
-
1710512060285 SpacerSpacer
-
2680414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2681293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2690293650025 Oetiker Gear ClampOetiker Gear Clamp
-
3800>3800g512061113 Housing Ass'y. Includes 3800 to 3800gHousing Ass'y. Includes 3800 to 3800g
-
3800a
-
3800c512060862 CapCap
-
3800d250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
3800e250000671 Torx ScrewTorx Screw
-
3800f250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3800g515177716 Protector TubeProtector Tube
-
3805293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3810>3810a515177362 Kill Switch. Includes 3810 to 3810aKill Switch. Includes 3810 to 3810a
-
3810a515175232 Male TerminalMale Terminal
-
3820512060844 SupportSupport
-
3830515177716 Protector TubeProtector Tube
-
3840250000263 Torx Screw #8-18Torx Screw #8-18
-
3900512060987 Front HousingFront Housing
-
3910250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
4620512060994 Module SupportModule Support
-
4625271001530 TrimTrim
-
4640250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4650207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
6030516007500 DecalDecal
