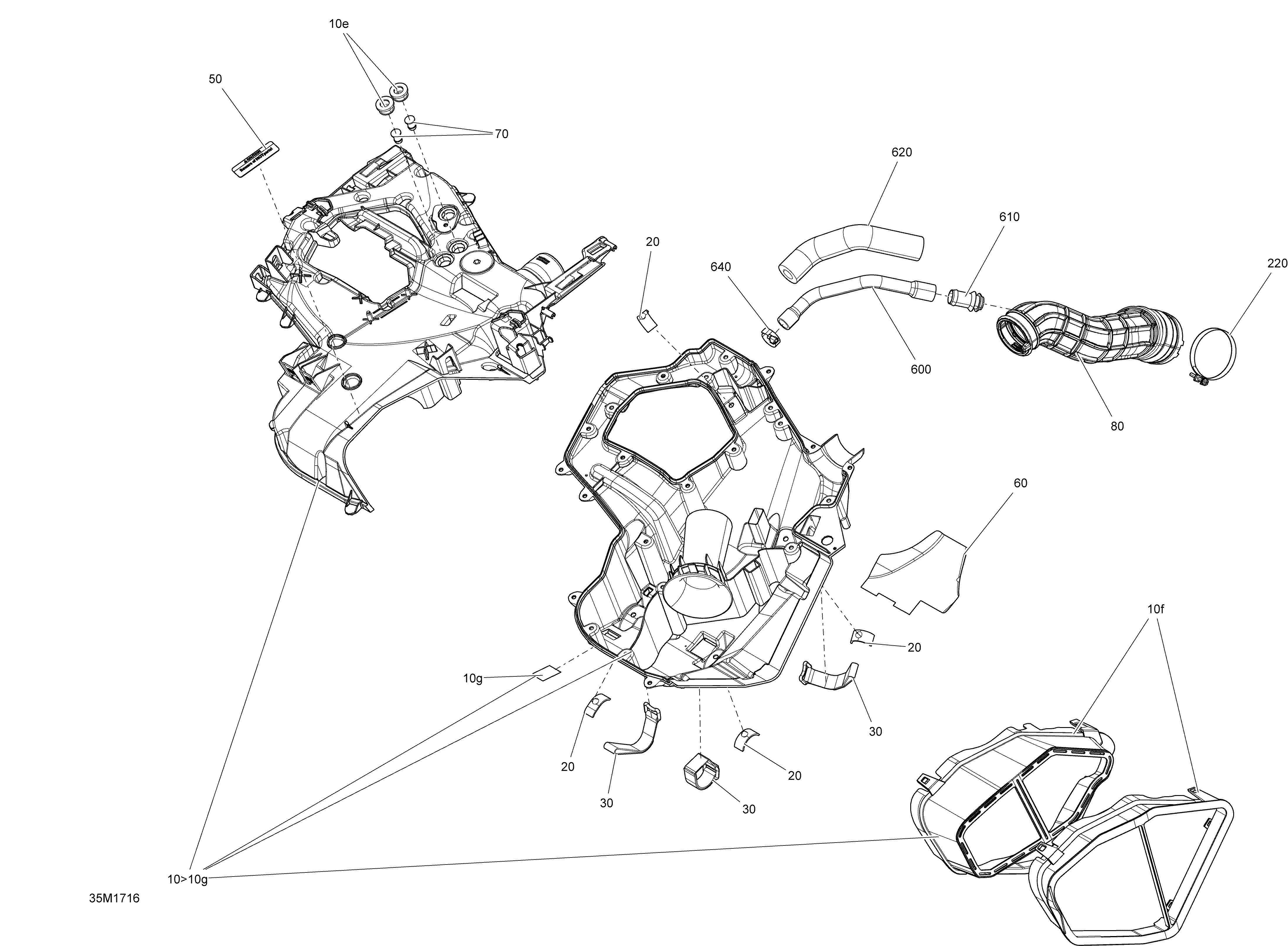

02- Air Intake System - All Models для BRP Ski-Doo TUNDRA - 4-STROKE - LT-SPORT - 2017
-
№АртикулНазвание
-
10>10g508000715 Secondary Chamber Ass'y. Includes 10 to 10gSecondary Chamber Ass'y. Includes 10 to 10g
-
10e508000574 GrommetGrommet
-
10f508000595 Air Intake FilterAir Intake Filter
-
10g509000688 Reflective SheetReflective Sheet
-
20508000537 StopperStopper
-
30508000820 Velcro-StripVelcro-Strip
-
30508000820 Velcro-StripVelcro-Strip
-
50516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
60508000622 Reflective SheetReflective Sheet
-
70572092900 CapCap
-
80508000838 Air Intake HoseAir Intake Hose
-
220293650229 Gemi ClampGemi Clamp
-
600508000774 Formed Vent HoseFormed Vent Hose
-
610273000234 BreatherBreather
-
620508000648 Tube IsolatorTube Isolator
-
640293650172 Tridon Gear ClampTridon Gear Clamp
