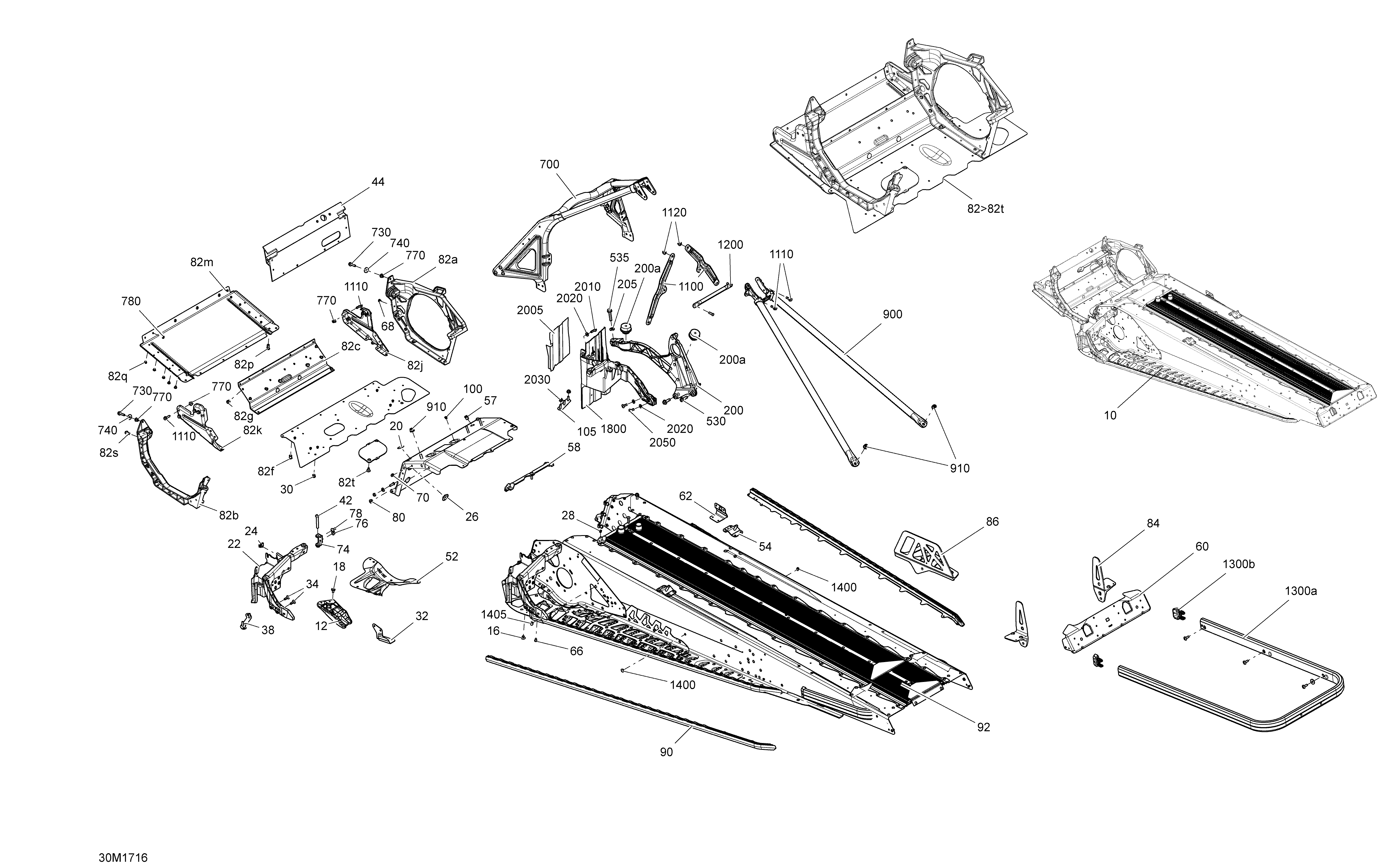

09- Frame - All Models для BRP Ski-Doo TUNDRA - 4-STROKE - LT-SPORT - 2017
-
№АртикулНазвание
-
10415130102 Frame Ass'y Tundra 137. Model 137. Includes 10 to 92aFrame Ass'y Tundra 137. Model 137. Includes 10 to 92a
-
10415130103 Frame Ass'y Tundra 154. Model 154. Includes 10 to 96Frame Ass'y Tundra 154. Model 154. Includes 10 to 96
-
12518325782 RH DeflectorRH Deflector
-
12518325783 LH DeflectorLH Deflector
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
20518325560 Adhesive PatchAdhesive Patch
-
22518326820 LH StirupLH Stirup
-
24250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26293730052 Black PlugBlack Plug
-
28293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
30293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
32518326960 SupportSupport
-
34250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
38518326986 AttachAttach
-
42250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
44518326140 Engine SupportEngine Support
-
52518324874 RH ReinforcementRH Reinforcement
-
52518324875 LH ReinforcementLH Reinforcement
-
54518325973 RH Rear BaseRH Rear Base
-
54518325974 LH Rear BaseLH Rear Base
-
57293450275 InsertInsert
-
58518326656 SealSeal
-
60518327105 Rear CapRear Cap
-
62518326482 RH SupportRH Support
-
66390909100 Avex RivetAvex Rivet
-
68293150144 Stavex RivetStavex Rivet
-
70293150146 Henrob RivetHenrob Rivet
-
74518326961 U-AttachU-Attach
-
76293150147 Hemlock RivetHemlock Rivet
-
78250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
80233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
82>82t518327006 E-Module. Includes 82 to 82tE-Module. Includes 82 to 82t
-
82a518326328 RH Side MemberRH Side Member
-
82b518326330 LH Side MemberLH Side Member
-
82c518326198 Front MemberFront Member
-
82f293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
82g293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
82j518325949 RH Front MemberRH Front Member
-
82k518325950 LH Front MemberLH Front Member
-
82m518325951 Front Bottom PlateFront Bottom Plate
-
82p293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
82q390909200 Avex RivetAvex Rivet
-
82s210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
82t250000325 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
84518325955 RH Slide Bracket. Model 154RH Slide Bracket. Model 154
-
84518325956 LH Slide Bracket. Model 154LH Slide Bracket. Model 154
-
86518328788 LH Bracket. Model 137LH Bracket. Model 137
-
86518328787 RH Bracket. Model 137RH Bracket. Model 137
-
90518325377 RH Roller. Model 137RH Roller. Model 137
-
90518325378 LH Roller. Model 137LH Roller. Model 137
-
90518325159 RH Roller. Model 154RH Roller. Model 154
-
90518325160 LH Roller. Model 154LH Roller. Model 154
-
92518326641 Rear Radiator Ass'y, 137''. Model 137. Includes 92 to 92aRear Radiator Ass'y, 137''. Model 137. Includes 92 to 92a
-
92518326692 Rear Radiator Ass'y, 154''. Model 154. Includes 92 to 92aRear Radiator Ass'y, 154''. Model 154. Includes 92 to 92a
-
100390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
105518326550 Retaining PlateRetaining Plate
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
530250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
535207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
700518326557 Front Member, S ModuleFront Member, S Module
-
730207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
740224061201 Flat WasherFlat Washer
-
770233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
780390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
900518326559 Rear MemberRear Member
-
910233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1200518326355 Center Column SupportCenter Column Support
-
1300a518325577 Clear Rear Bumper. Model 137Clear Rear Bumper. Model 137
-
1300a518325579 Clear Rear Bumper. Model 154Clear Rear Bumper. Model 154
-
1300b520000711 Full Moon RH CapFull Moon RH Cap
-
1300b520000712 Full Moon LH CapFull Moon LH Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
-
1800518326472 Battery SupportBattery Support
-
2005514054755 Heat ShieldHeat Shield
-
2010210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2020250200039 Flat WasherFlat Washer
-
2030232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2050250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
