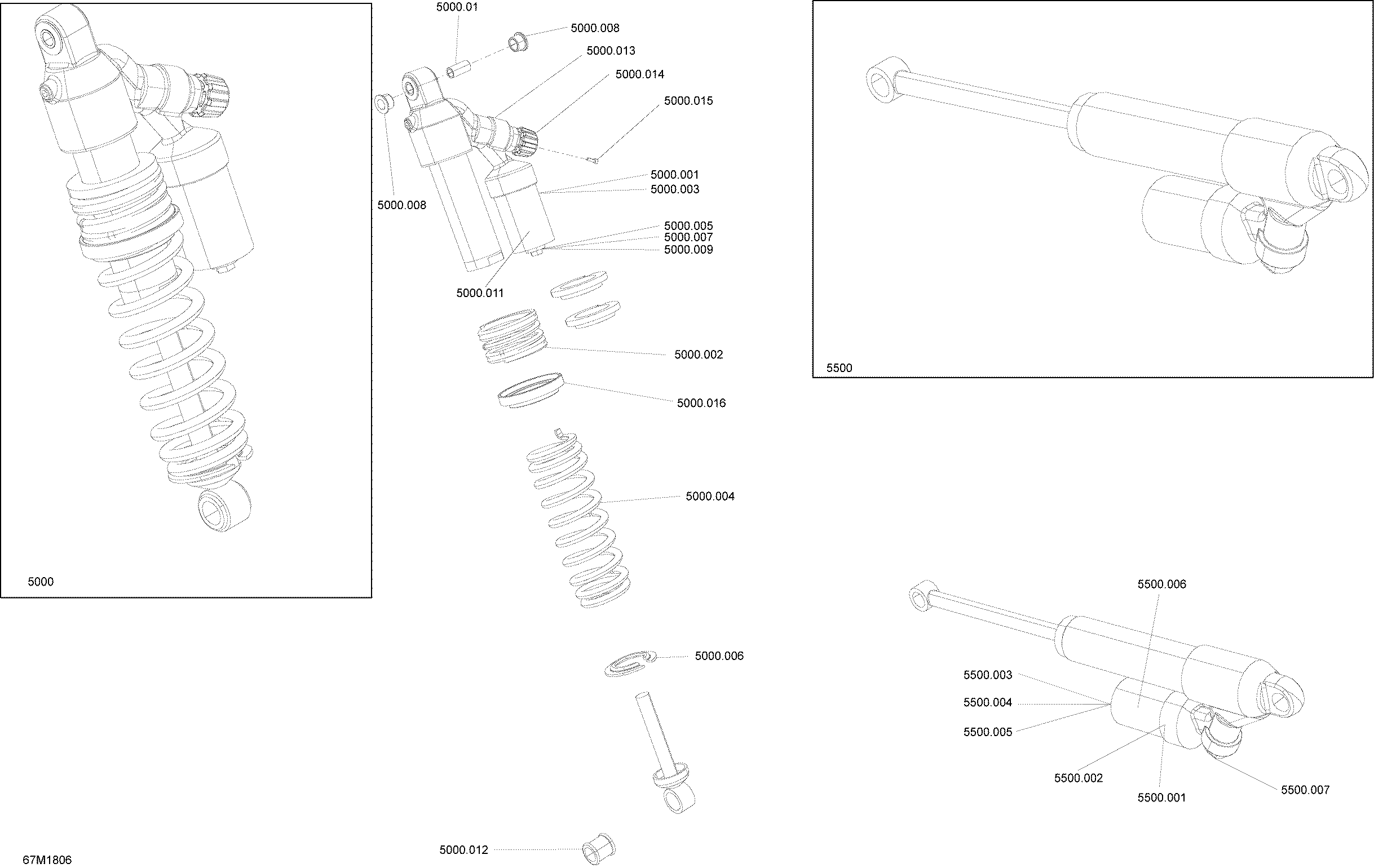

08- Rear Shocks MXZ - Package XRS Iron Dog для BRP Ski-Doo 2- MXZ 600HO E-TEC - 2018
-
№АртикулНазвание
-
5000503194071 Center Shock. Includes 5000 to 5000,007Center Shock. Includes 5000 to 5000,007
-
5000.001415093807 O-RingO-Ring
-
5000.002503193479 Black - Spring (Short)Black - Spring (Short)
-
5000.003415093806 Piston RingPiston Ring
-
5000.004503193065 Black - Spring (Short)Black - Spring (Short)
-
5000.005505070398 Air ValveAir Valve
-
5000.006503194270 Spring StopperSpring Stopper
-
5000.007505070399 ScrewScrew
-
5000.008503189117 BushingBushing
-
5000.009505070400 O-RingO-Ring
-
5000.01503189282 BushingBushing
-
5000.011415093804 O-RingO-Ring
-
5000.012503189271 BushingBushing
-
5000.013415130165 Base ValveBase Valve
-
5000.014503193033 Shock Adjuster KnobShock Adjuster Knob
-
5000.015250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
5000.016503192743 Spring SpacerSpring Spacer
-
5500503193904 Rear Shock. Includes 5500 to 5500,007Rear Shock. Includes 5500 to 5500,007
-
5500.001415093807 O-RingO-Ring
-
5500.002415093806 Piston RingPiston Ring
-
5500.003505070398 Air ValveAir Valve
-
5500.004505070399 ScrewScrew
-
5500.005505070400 O-RingO-Ring
-
5500.006415093804 O-RingO-Ring
-
5500.007415130165 Base ValveBase Valve
