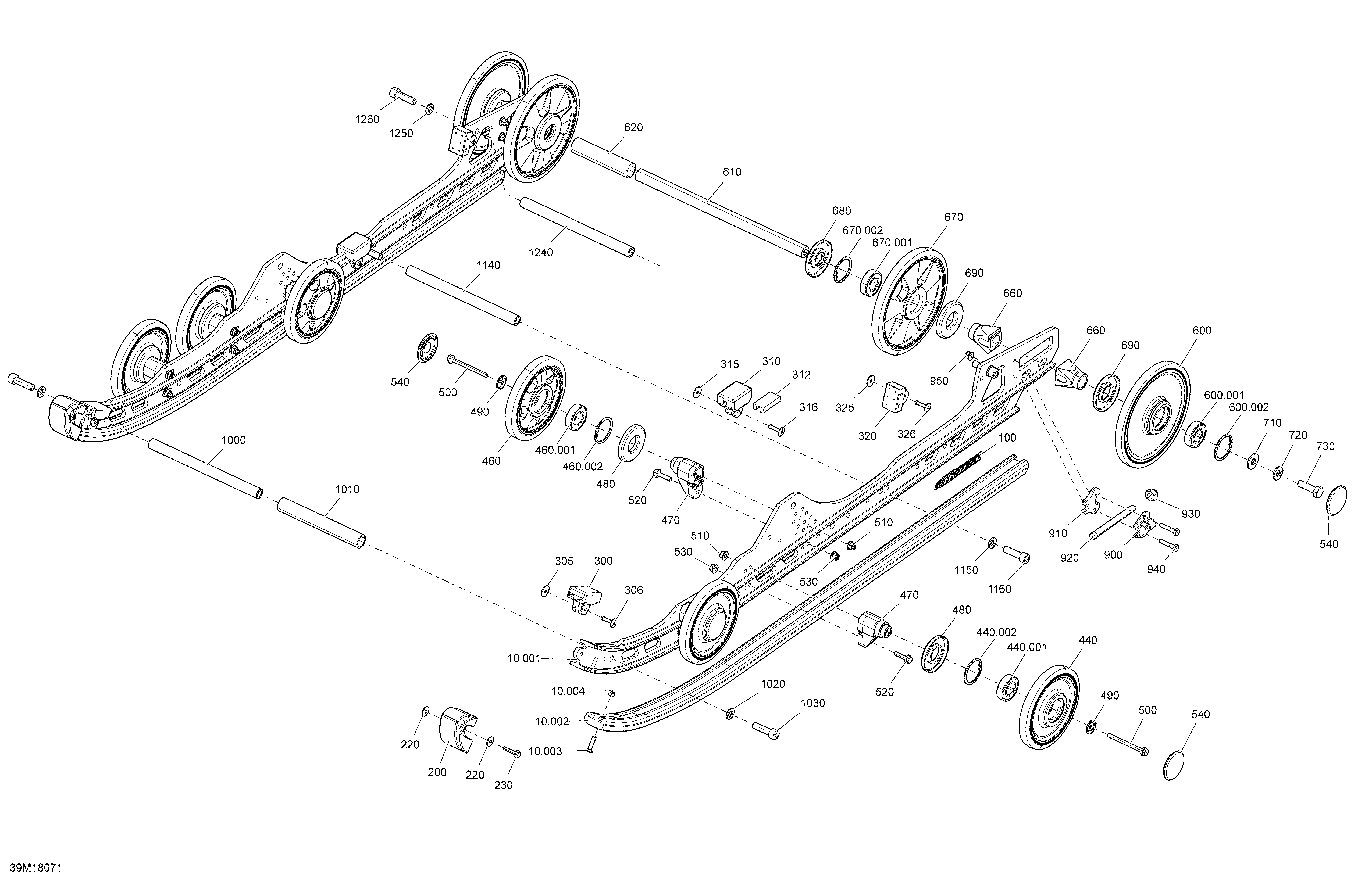

08- Rear Suspension MXZ - Package X RM, QAS - Inferior для BRP Ski-Doo 2- MXZ 600HO E-TEC - 2018
-
№АртикулНазвание
-
10.001503193901 Black - Runner 128''. Deep Black Models. Includes 10,001 to 10,002Black - Runner 128''. Deep Black Models. Includes 10,001 to 10,002
-
10.001503194156 Yellow - Runner 128''. Sunburst Yellow Models. Includes 10,001 to 10,002Yellow - Runner 128''. Sunburst Yellow Models. Includes 10,001 to 10,002
-
10.002503193962 Slider 128''Slider 128''
-
10.003208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10.004232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
100516007816 Runner DecalRunner Decal
-
200503192530 Slide ProtectorSlide Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310.001503193101 Rubber StopperRubber Stopper
-
310.002572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
320503192750 Rubber StopperRubber Stopper
-
325503191273 WasherWasher
-
326293150224 Rivet Pop 3/16Rivet Pop 3/16
-
440503193477 Black - Wheel Ass'y 141 mm. Includes 440 to 440,002Black - Wheel Ass'y 141 mm. Includes 440 to 440,002
-
440.001503190396 Ball BearingBall Bearing
-
440.002415129371 Retaining RingRetaining Ring
-
460503192794 Black - Wheel Ass'y 141 mm. Includes 460 to 460,002Black - Wheel Ass'y 141 mm. Includes 460 to 460,002
-
460.001503190396 Ball BearingBall Bearing
-
460.002415129371 Retaining RingRetaining Ring
-
470503193894 Casted SupportCasted Support
-
480503190434 Labyrinth SealLabyrinth Seal
-
490503191820 Wheel Cup M6Wheel Cup M6
-
500250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
510233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
520250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
530233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
540503192771 Black - Wheel CapBlack - Wheel Cap
-
600503192766 Black - Wheel Ass'y 180 mm. Includes 600 to 600,002Black - Wheel Ass'y 180 mm. Includes 600 to 600,002
-
600.001415129371 Retaining RingRetaining Ring
-
600.002503190396 Ball BearingBall Bearing
-
610503190429 Rear AxleRear Axle
-
620503190430 SpacerSpacer
-
650503190432 WasherWasher
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670,002Black - Wheel Ass'y 180 mm. Includes 670 to 670,002
-
670.001503190396 Ball BearingBall Bearing
-
670.002415129371 Retaining RingRetaining Ring
-
680503190682 Labyrinth SealLabyrinth Seal
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
900503192583 TensionerTensioner
-
910503193250 SpacerSpacer
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503191260 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020503192496 WasherWasher
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1240503191260 Axle StrapAxle Strap
-
1250503192496 WasherWasher
-
1260205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
