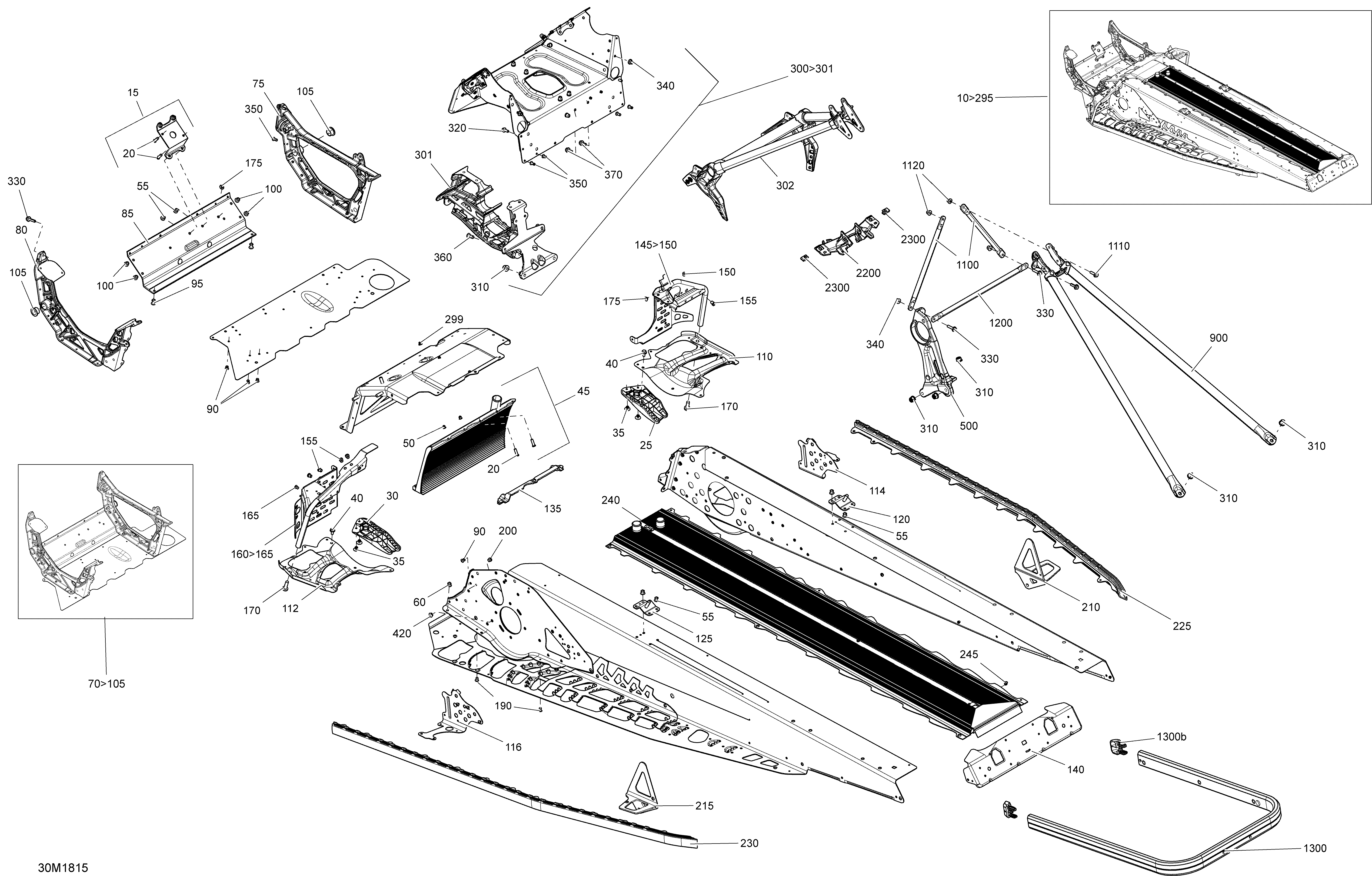

09- Frame MXZ - 600HO E-TEC для BRP Ski-Doo 2- MXZ 600HO E-TEC - 2018
-
№АртикулНазвание
-
10>297415130117 Frame Ass'y 129 XS Yellow. Sunburst Yellow Models. Includes 10 to 10Frame Ass'y 129 XS Yellow. Sunburst Yellow Models. Includes 10 to 10
-
10>297415130123 Frame Ass'y ''Iron Dog''. Package Iron Dog. Includes 10 to 10Frame Ass'y ''Iron Dog''. Package Iron Dog. Includes 10 to 10
-
10>297415130124 Frame Ass'y 129 XS Black. Deep Black Models. Includes 10 to 10Frame Ass'y 129 XS Black. Deep Black Models. Includes 10 to 10
-
15518325943 MAG Engine SupportMAG Engine Support
-
20250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
25518325782 RH DeflectorRH Deflector
-
30518325783 LH DeflectorLH Deflector
-
35293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
45518326485 Front RadiatorFront Radiator
-
45518326485 Front Radiator. Package Iron DogFront Radiator. Package Iron Dog
-
45518326486 Front Radiator. Package Iron DogFront Radiator. Package Iron Dog
-
45518326485 Front Radiator. Deep Black ModelsFront Radiator. Deep Black Models
-
45518326486 Front Radiator. Sunburst Yellow ModelsFront Radiator. Sunburst Yellow Models
-
45518326486 Front Radiator. Deep Black Models Except Package XRSFront Radiator. Deep Black Models Except Package XRS
-
50293150203 Rivet AVIBULB 3/16. Sunburst Yellow ModelsRivet AVIBULB 3/16. Sunburst Yellow Models
-
55293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
60293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
70>105518327567 Front E ModuleFront E Module
-
75518326795 RH MemberRH Member
-
80518326796 LH MemberLH Member
-
85518326198 Front MemberFront Member
-
90293150144 Stavex RivetStavex Rivet
-
95293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
100293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
105505073317 Leg CushionLeg Cushion
-
110518326937 RH ReinforcementRH Reinforcement
-
112518326938 LH ReinforcementLH Reinforcement
-
116518326616 RH Front Retainer. Package Iron DogRH Front Retainer. Package Iron Dog
-
118518326617 LH Front Retainer. Package Iron DogLH Front Retainer. Package Iron Dog
-
120518325973 RH Rear BaseRH Rear Base
-
125518325974 LH Rear BaseLH Rear Base
-
130250300038 Clinch StudClinch Stud
-
135518326656 SealSeal
-
140518327105 Rear CapRear Cap
-
145>150518328940 RH StirupRH Stirup
-
150390909200 Avex RivetAvex Rivet
-
155293450268 InsertInsert
-
160>165518328528 LH StirupLH Stirup
-
165390909200 Avex RivetAvex Rivet
-
170250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
175293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
190390909100 Avex RivetAvex Rivet
-
200293150146 Henrob RivetHenrob Rivet
-
210293150174 Hemlock Rivet, 6.4 mm. Sunburst Yellow ModelsHemlock Rivet, 6.4 mm. Sunburst Yellow Models
-
210293150119 Hemlock Rivet, 6.5 mm. Package Iron DogHemlock Rivet, 6.5 mm. Package Iron Dog
-
210293150174 Hemlock Rivet, 6.4 mm. Deep Black Models Except Package XRSHemlock Rivet, 6.4 mm. Deep Black Models Except Package XRS
-
215518328344 RH Slide Suspension Bracket. Deep Black Models Except Package XRSRH Slide Suspension Bracket. Deep Black Models Except Package XRS
-
215518328344 RH Slide Suspension Bracket. Deep Black Models Except Package XRSRH Slide Suspension Bracket. Deep Black Models Except Package XRS
-
220518328345 LH Slide Suspension Bracket. Sunburst Yellow ModelsLH Slide Suspension Bracket. Sunburst Yellow Models
-
220518328345 LH Slide Suspension Bracket. Deep Black Models Except Package XRSLH Slide Suspension Bracket. Deep Black Models Except Package XRS
-
225518327472 RH Roller. Sunburst Yellow ModelsRH Roller. Sunburst Yellow Models
-
225518327200 RH Roller. Package Iron DogRH Roller. Package Iron Dog
-
225518327472 RH Roller. Deep Black Models Except Package XRSRH Roller. Deep Black Models Except Package XRS
-
230518327473 LH Roller. Sunburst Yellow ModelsLH Roller. Sunburst Yellow Models
-
230518327201 LH Roller. Package Iron DogLH Roller. Package Iron Dog
-
230518327473 LH Roller. Deep Black Models Except Package XRSLH Roller. Deep Black Models Except Package XRS
-
294293150119 Hemlock Rivet, 6.5 mm. Sunburst Yellow ModelsHemlock Rivet, 6.5 mm. Sunburst Yellow Models
-
296293150144 Stavex RivetStavex Rivet
-
298293150174 Hemlock Rivet, 6.4 mm. Sunburst Yellow ModelsHemlock Rivet, 6.4 mm. Sunburst Yellow Models
-
298293150147 Hemlock Rivet. Package Iron DogHemlock Rivet. Package Iron Dog
-
298293150174 Hemlock Rivet, 6.4 mm. Deep Black Models Except Package XRSHemlock Rivet, 6.4 mm. Deep Black Models Except Package XRS
-
300>301518328320 Cross Member S Module. Except Package Iron DogCross Member S Module. Except Package Iron Dog
-
300>301518328322 Cross Member S Module. Package Iron DogCross Member S Module. Package Iron Dog
-
301518327487 Front Suspension SupportFront Suspension Support
-
302518327565 Front MemberFront Member
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
420293730053 Black Dart 5 mmBlack Dart 5 mm
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
500>500a518327133 Driven Pulley Support. Includes 500 to 500aDriven Pulley Support. Includes 500 to 500a
-
500a518327460 Driven Pulley SupportDriven Pulley Support
-
900518326559 Rear MemberRear Member
-
1100518325114 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1200518325115 Center Column SupportCenter Column Support
-
1300518327637 Black Rear Bumper. Except Package Iron DogBlack Rear Bumper. Except Package Iron Dog
-
1300518326611 Black Rear Bumper, 154''. Package Iron DogBlack Rear Bumper, 154''. Package Iron Dog
-
1300b520000965 Black RH Cap. Package Iron DogBlack RH Cap. Package Iron Dog
-
1300b520000964 Black LH Cap. Package Iron DogBlack LH Cap. Package Iron Dog
-
1300b520000840 Black Cap. Except Package Iron DogBlack Cap. Except Package Iron Dog
-
1700>1700a518326973 Front Protector. Includes 1700 to 1700aFront Protector. Includes 1700 to 1700a
-
1700a517124300 WasherWasher
-
1710293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
2000860200267 Tunnel Protector KitTunnel Protector Kit
-
2100860200267 Tunnel Protector KitTunnel Protector Kit
-
2200518327145 Sub A SupportSub A Support
-
2300250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
6000250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
6001224061201 Flat WasherFlat Washer
