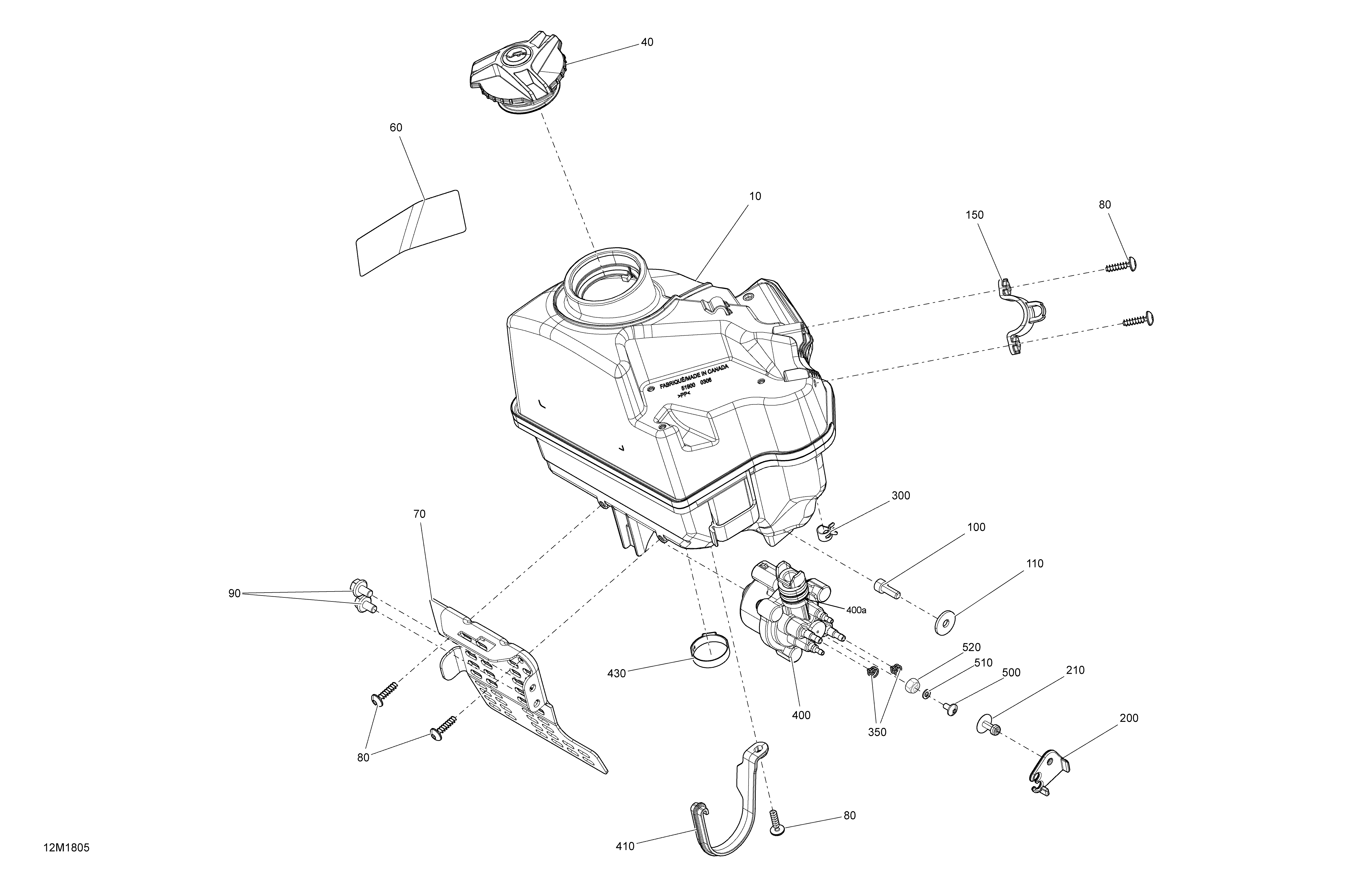

02- Oil MXZ - 600R ETEC - Package X для BRP Ski-Doo 7- MXZ X - 600R ETEC - 2018
-
№АртикулНазвание
-
10519000328 Oil TankOil Tank
-
40519000325 Cap Ass'yCap Ass'y
-
60516007443 Warning DecalWarning Decal
-
65516008206 Oil Level DecalOil Level Decal
-
70519000319 SupportSupport
-
80250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
90207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
100205561644 Socket Screw M6 X 16, Scotch GripSocket Screw M6 X 16, Scotch Grip
-
110224061201 Flat WasherFlat Washer
-
150519000320 ClampClamp
-
200519000322 Hose ProtectorHose Protector
-
210293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
300414420700 Spring ClampSpring Clamp
-
350293650252 Hose ClampHose Clamp
-
400519000309 Oil PumpOil Pump
-
410519000318 BracketBracket
-
430293650099 Crimp ClampCrimp Clamp
-
500250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
510234141601 Lock Washer 4 mmLock Washer 4 mm
-
520232541484 Elastic Stop Nut M4Elastic Stop Nut M4
