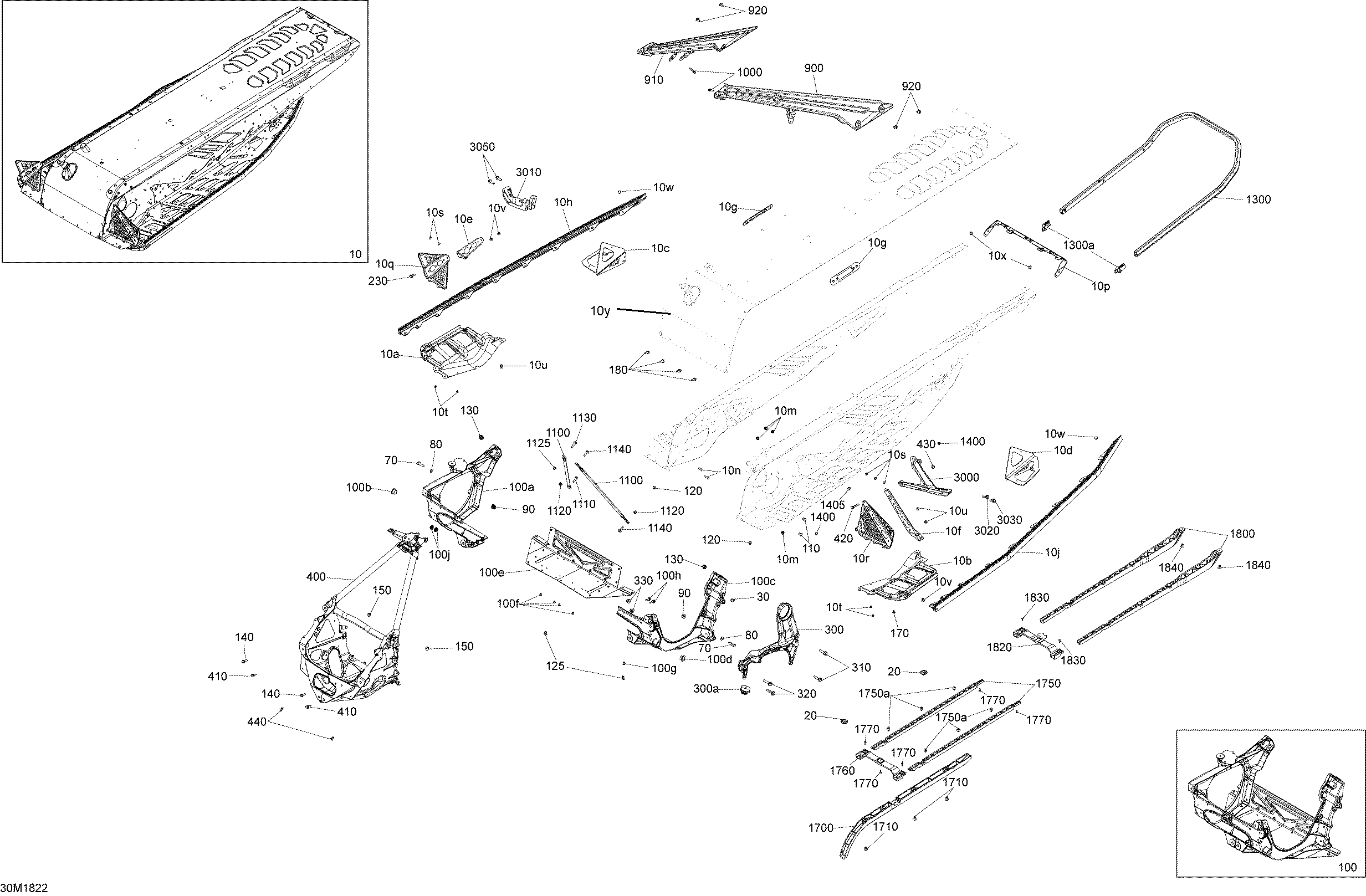

09- Frame MXZ - 600R ETEC - Package X для BRP Ski-Doo 7- MXZ X - 600R ETEC - 2018
-
№АртикулНазвание
-
10415130216 Yellow Tunnel Module 129. North America Models. Includes 10 to 10yYellow Tunnel Module 129. North America Models. Includes 10 to 10y
-
10a518328455 RH Footrest ReinforcementRH Footrest Reinforcement
-
10b518328456 LH Footrest ReinforcementLH Footrest Reinforcement
-
10c518329878 Suspension Bracket RHSuspension Bracket RH
-
10d518329877 Suspension Bracket LHSuspension Bracket LH
-
10e518329048 RH Reinforcement FootrestRH Reinforcement Footrest
-
10f518329049 LH Reinforcement FootrestLH Reinforcement Footrest
-
10g518329480 Member Fixation Plate. North America ModelsMember Fixation Plate. North America Models
-
10h518328451 RH RollerRH Roller
-
10j518328452 LH RollerLH Roller
-
10k293450232 Insert M6 X 1.0Insert M6 X 1.0
-
10m250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10n518328990 Rear CapRear Cap
-
10p518328460 RH FootrestRH Footrest
-
10q518328463 LH FootrestLH Footrest
-
10r293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
10s293150144 Stavex RivetStavex Rivet
-
10t293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10u293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10v293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10w293150147 Hemlock RivetHemlock Rivet
-
10y518330130 Assembly Radiator 129Assembly Radiator 129
-
20293730052 Black PlugBlack Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
100518330163 Riveted Module E. Includes 100 to 100jRiveted Module E. Includes 100 to 100j
-
100a518329999 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518329960 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f293150203 Rivet AVIBULB 3/16Rivet AVIBULB 3/16
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100j233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
130233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310210283040 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
400518329966 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440293150147 Hemlock RivetHemlock Rivet
-
900518329077 Black - LH MemberBlack - LH Member
-
910518329078 Black - RH MemberBlack - RH Member
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1000250300629 Stud M5 X 20Stud M5 X 20
-
1100518329974 Upper Column SupprtUpper Column Supprt
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1125233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518328745 Rear Bumper. Includes 1300 to 1300aRear Bumper. Includes 1300 to 1300a
-
1300a520001612 CapCap
-
1400293730047 Black Dart 8 mmBlack Dart 8 mm
-
1405293730060 Black Dart 10 mmBlack Dart 10 mm
-
1700518329982 Front ProtectorFront Protector
-
1710293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1800518329979 Rear Protector. Deep Black ModelsRear Protector. Deep Black Models
-
1820520001545 Support. Deep Black ModelsSupport. Deep Black Models
-
1830250000577 Torx Truss K40 X 12. Deep Black ModelsTorx Truss K40 X 12. Deep Black Models
-
1840293150108 Pop Rivet 3/16”. Deep Black ModelsPop Rivet 3/16”. Deep Black Models
-
3000518330358 Black Toe-holdBlack Toe-hold
