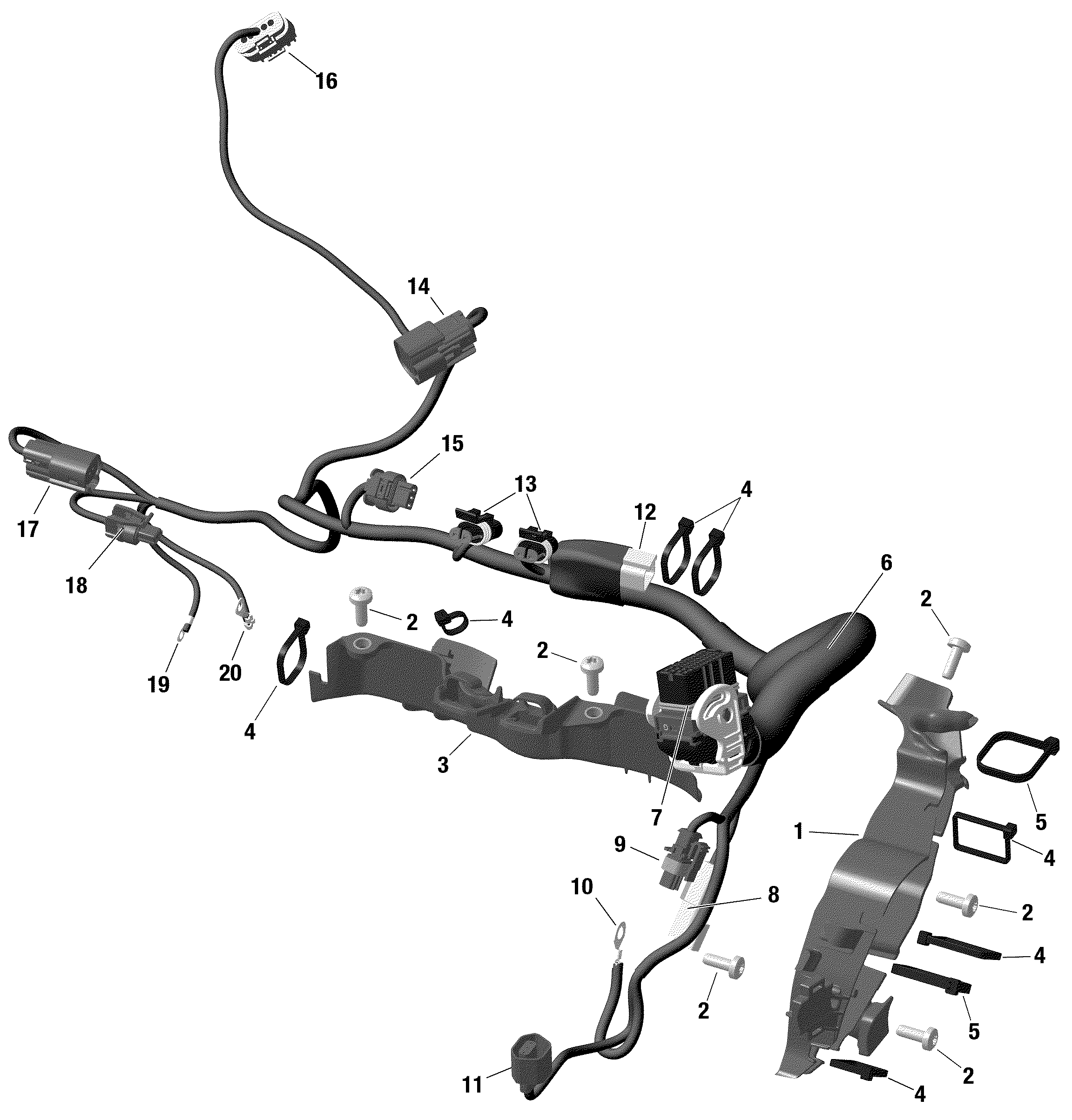

10- Engine Harness для BRP Ski-Doo 7- MXZ X - 600R ETEC - 2018
-
№АртикулНазвание
-
1420260153 Harness SupportHarness Support
-
2420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
3420260157 Harness SupportHarness Support
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
5420651397 Tie RapTie Rap
-
6>20420864441 Engine HarnessEngine Harness
-
8409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
11415130195 ConnectorConnector
-
12409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
14515178202 Connector CoilConnector Coil
-
17710005827 ConnectorConnector
-
18515177192 Female HousingFemale Housing
-
20515175504 Ring TerminalRing Terminal
