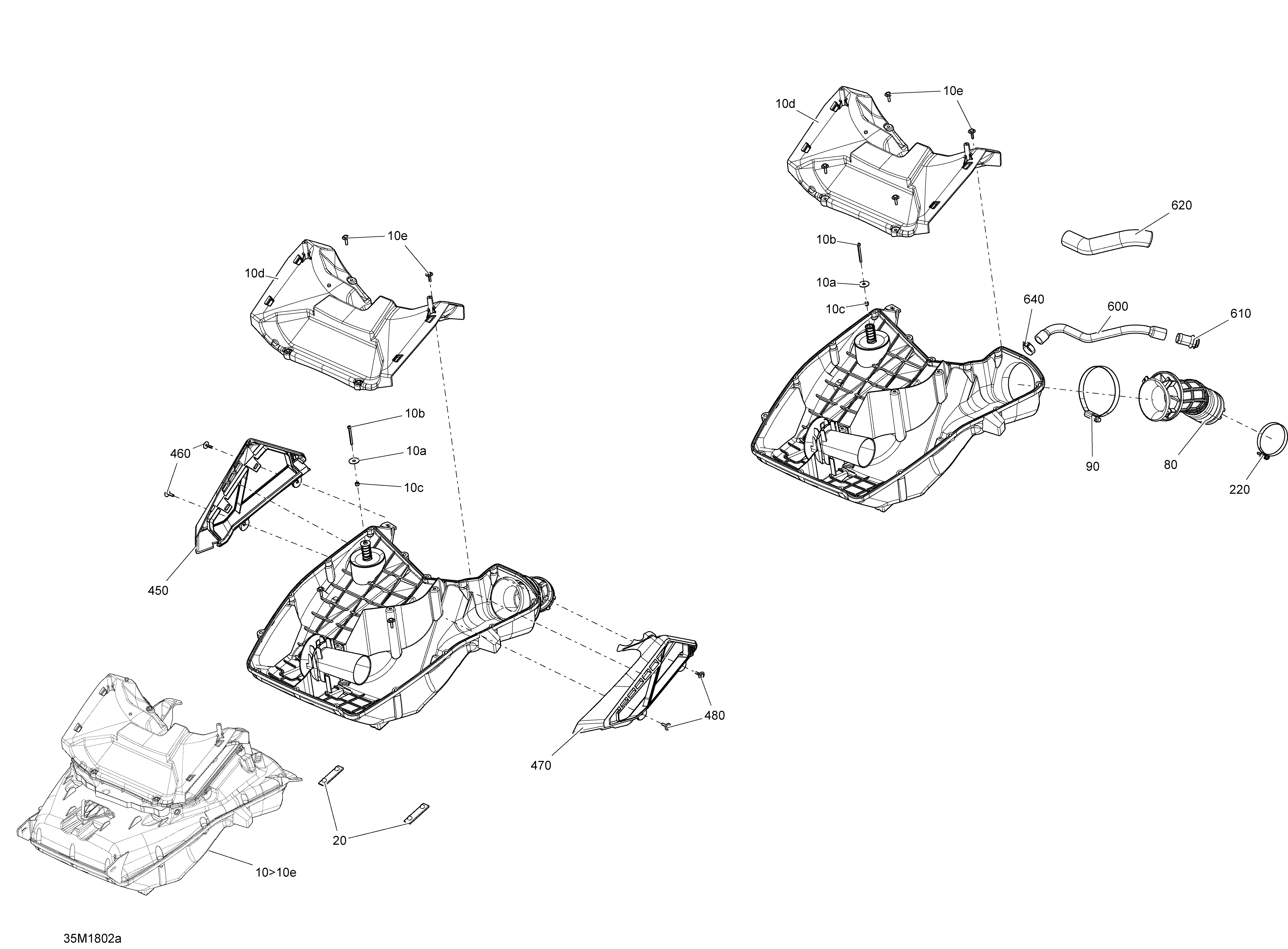

02- Air Intake - 900 ACE для BRP Ski-Doo 6- RENEGADE 900 ACE - 2018
-
№АртикулНазвание
-
10>10e508000747 Secondary Chamber Ass'y. All ACE Engine. Includes 10 to 10eSecondary Chamber Ass'y. All ACE Engine. Includes 10 to 10e
-
10a224060201 Flat Washer. All ACE EngineFlat Washer. All ACE Engine
-
10b205444056 Socket Head Screw M4 X 40. All ACE EngineSocket Head Screw M4 X 40. All ACE Engine
-
10c232541414 Elastic Stop Nut M4. All ACE EngineElastic Stop Nut M4. All ACE Engine
-
10d508000732 Air Duct. All ACE EngineAir Duct. All ACE Engine
-
10e250000725 Screw M4 X 16. All ACE EngineScrew M4 X 16. All ACE Engine
-
20508000744 StopperStopper
-
80508000827 Intake Hose. Engine 600 & 900 ACEIntake Hose. Engine 600 & 900 ACE
-
220293650229 Gemi Clamp. All ACE EngineGemi Clamp. All ACE Engine
-
450508000730 RH Air FilterRH Air Filter
-
460250000725 Screw M4 X 16Screw M4 X 16
-
470508000731 LH Air FilterLH Air Filter
-
480250000725 Screw M4 X 16Screw M4 X 16
-
600508000746 Hose Vent. Engine 900 ACEHose Vent. Engine 900 ACE
-
610273000234 Breather. Engine 600 & 900 ACEBreather. Engine 600 & 900 ACE
-
620508000648 Tube Isolator. Engine 600 & 900 ACETube Isolator. Engine 600 & 900 ACE
-
640293650172 Tridon Gear Clamp. All ACE EngineTridon Gear Clamp. All ACE Engine
