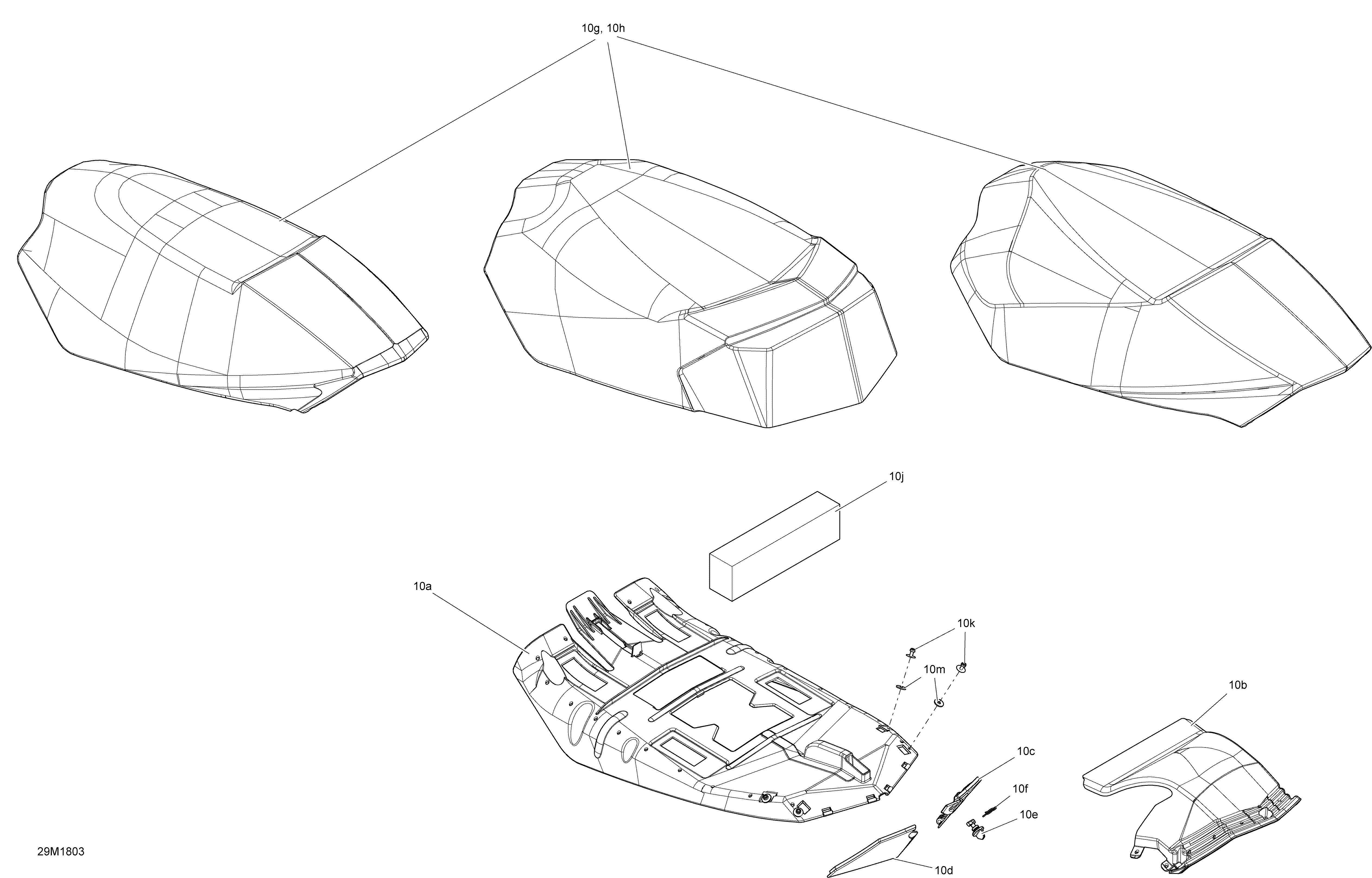

09- Seat Renegade 900 ACE для BRP Ski-Doo 6- RENEGADE 900 ACE - 2018
-
№АртикулНазвание
-
10a510005417 Seat BaseSeat Base
-
10b510005413 Seat BoxSeat Box
-
10c510005414 RH DoorRH Door
-
10d510005415 LH DoorLH Door
-
10e510005416 LockLock
-
10f250400055 Hairpin ClipHairpin Clip
-
10g510005477 Seat FoamSeat Foam
-
10h510005962 Seat Cover. Package Adrenaline with Black AccentsSeat Cover. Package Adrenaline with Black Accents
-
10h510006266 Seat Cover. Package Adrenaline with ORange AccentsSeat Cover. Package Adrenaline with ORange Accents
-
10h510006268 Seat Cover. Package EnduroSeat Cover. Package Enduro
-
10j510005504 FoamFoam
-
10k293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10m391301600 WasherWasher
