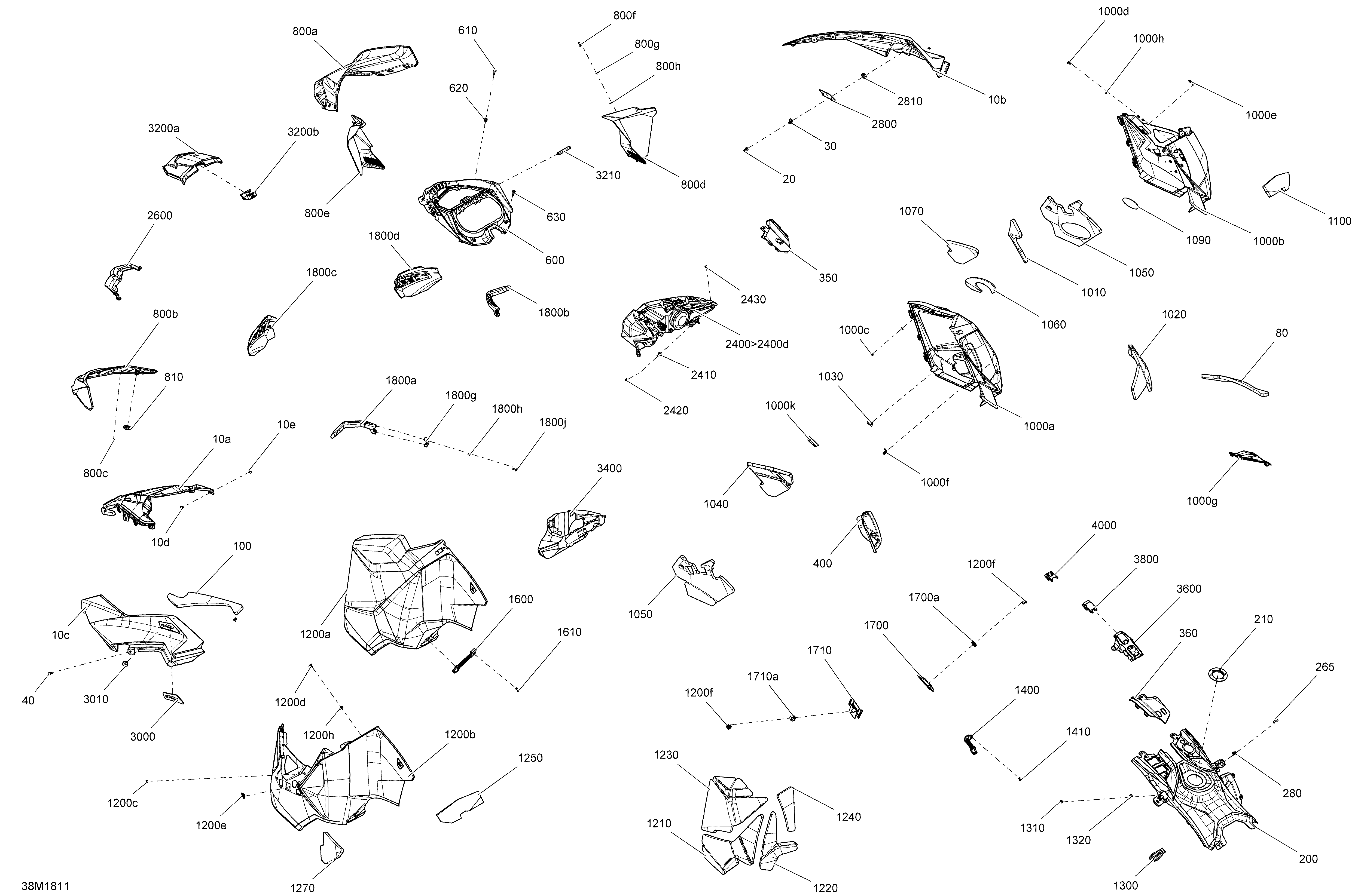

09- Hood Renegade 900 ACE для BRP Ski-Doo 6- RENEGADE 900 ACE - 2018
-
№АртикулНазвание
-
10a517304796 Black Center HoodBlack Center Hood
-
10b517305634 Red RH Hood. Package EnduroRed RH Hood. Package Enduro
-
10b517305239 Black Hood RH. Package Enduro & AdrenalineBlack Hood RH. Package Enduro & Adrenaline
-
10c517305633 Red LH Hood. Package EnduroRed LH Hood. Package Enduro
-
10c517305240 Black Hood LH. Package Enduro & AdrenalineBlack Hood LH. Package Enduro & Adrenaline
-
10d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
10e517124300 WasherWasher
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
80517305090 RH Rear Hood FoamRH Rear Hood Foam
-
100517305091 LH Rear Hood FoamLH Rear Hood Foam
-
200517305557 White Rear Console. Package AdrenalineWhite Rear Console. Package Adrenaline
-
200517305641 Black Rear Console. Package Enduro & AdrenalineBlack Rear Console. Package Enduro & Adrenaline
-
200517305786 Rear Console. Package EnduroRear Console. Package Enduro
-
210517304518 Console NutConsole Nut
-
265250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
350517305549 RH Front Console. Package EnduroRH Front Console. Package Enduro
-
400517305061 Deep Black RH Console. Except EnduroDeep Black RH Console. Except Enduro
-
600517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
610250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
620250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
630250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
800a517304927 Windshield 345mmWindshield 345mm
-
800b860200944 SupportSupport
-
800c732610072 Push NutPush Nut
-
800d517304928 RH Air DeflectorRH Air Deflector
-
800e517304929 LH Air DeflectorLH Air Deflector
-
800f250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800g250200025 Washer M5Washer M5
-
800h250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
1000a517304801 Black Panel RH. Package EnduroBlack Panel RH. Package Enduro
-
1000a517304801 Black Panel RH. Package AdrenalineBlack Panel RH. Package Adrenaline
-
1000a517305397 White Panel RH. Package AdrenalineWhite Panel RH. Package Adrenaline
-
1000a517306414 RH.Panel. Package Enduro North AmericaRH.Panel. Package Enduro North America
-
1000b517304802 Black Panel Trim RH. Package EnduroBlack Panel Trim RH. Package Enduro
-
1000b517305058 Black Panel Trim RH. Package AdrenalineBlack Panel Trim RH. Package Adrenaline
-
1000b517305058 Black Panel Trim RH. Package AdrenalineBlack Panel Trim RH. Package Adrenaline
-
1000b517304802 Black Panel Trim RH. Package Enduro North AmericaBlack Panel Trim RH. Package Enduro North America
-
1000c250100158 Push NutPush Nut
-
1000d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305504 PinPin
-
1000g517304935 RH Panel Vent Grid. Package EnduroRH Panel Vent Grid. Package Enduro
-
1000g517304935 RH Panel Vent Grid. Package AdrenalineRH Panel Vent Grid. Package Adrenaline
-
1000g517304935 RH Panel Vent Grid. Package AdrenalineRH Panel Vent Grid. Package Adrenaline
-
1000g517305715 Grill. Package Enduro North AmericaGrill. Package Enduro North America
-
1000h517124300 WasherWasher
-
1000j517305731 Bumper. Package Enduro North AmericaBumper. Package Enduro North America
-
1010517305197 Foam Central RHFoam Central RH
-
1020517305199 Foam Rear RHFoam Rear RH
-
1030517305451 Heat ShieldHeat Shield
-
1040517305196 Foam Upper RHFoam Upper RH
-
1050517305198 Foam Lower RHFoam Lower RH
-
1200a517305405 White LH Panel. Package AdrenalineWhite LH Panel. Package Adrenaline
-
1200a517306420 LH Panel. Package EnduroLH Panel. Package Enduro
-
1200b517304805 Black LH Flashing PanelBlack LH Flashing Panel
-
1200c250100158 Push NutPush Nut
-
1200d293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200e517305109 Rivet PlateRivet Plate
-
1200f517305734 PinPin
-
1200g517124300 WasherWasher
-
1210517305201 LH Center Panel FoamLH Center Panel Foam
-
1220517305202 LH Lower Panel FoamLH Lower Panel Foam
-
1230517305200 LH Upper Panel FoamLH Upper Panel Foam
-
1240517305203 LH Rear Panel FoamLH Rear Panel Foam
-
1300517305279 Panel LatchPanel Latch
-
1310250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
1320250100156 Weld Nut M4Weld Nut M4
-
1400517304919 RH Panel LatchRH Panel Latch
-
1410293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600517303808 LH Panel LatchLH Panel Latch
-
1610293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
1700517305724 RH Panel Clip Ass'y. Includes 1700 to 1700aRH Panel Clip Ass'y. Includes 1700 to 1700a
-
1700a517305723 RingRing
-
1710517305722 LH Panel Clip Ass'y. Includes 1710 to 1710aLH Panel Clip Ass'y. Includes 1710 to 1710a
-
1710a517305723 RingRing
-
2400517306180 Headlamp. Includes 2400 to 2400fHeadlamp. Includes 2400 to 2400f
-
2400a219400070 CapCap
-
2400b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
2400c219800282 Holder BracketHolder Bracket
-
2400d219800281 SpringSpring
-
2400e415130194 HarnessHarness
-
2400f710002033 HolderHolder
-
2410250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
2420250100035 Jack Nut M5Jack Nut M5
-
2430250000725 Screw M4 X 16Screw M4 X 16
-
2600517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
2810517302841 GrommetGrommet
-
3010517302841 GrommetGrommet
-
3200a517304912 Upper Storage Access CoverUpper Storage Access Cover
-
3200b517304917 Cover LatchCover Latch
-
3210517305157 Seal JointSeal Joint
-
3400517305095 TrunkTrunk
-
3600517304970 Console SupportConsole Support
-
3800517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
4000517305148 Support Console CapSupport Console Cap
