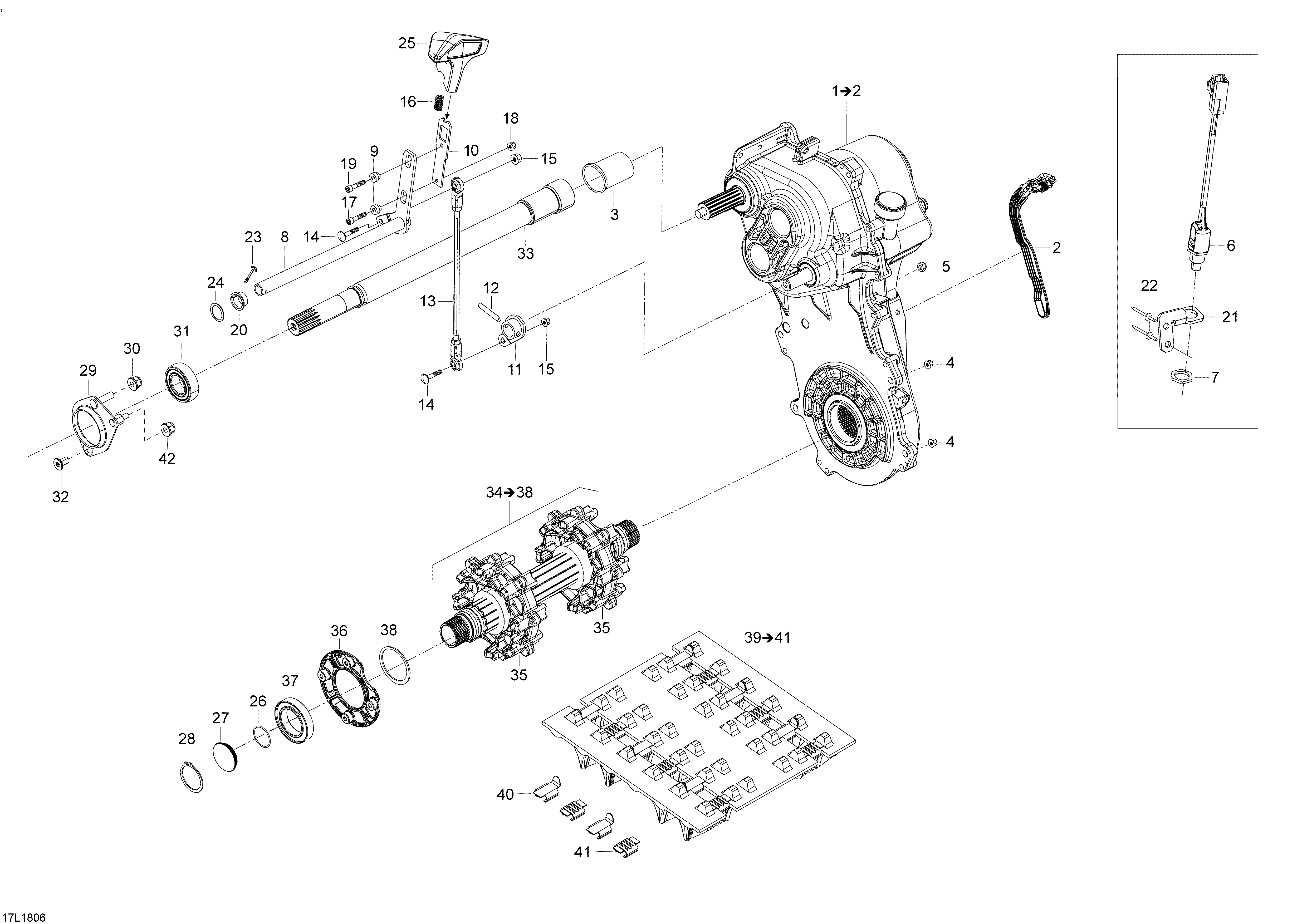

05- Drive Train Skandic - 600HO E-TEC - SWT для BRP Ski-Doo 2- SKANDIC 600HO E-TEC - 2018
-
№АртикулНазвание
-
1619230078 Transmission Ass'y (Fast Ratio)Transmission Ass'y (Fast Ratio)
-
3504153568 Protective RubberProtective Rubber
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
6515176472 Switch Ass'ySwitch Ass'y
-
7250000373 Brass NutBrass Nut
-
8504153288 Lever ShifterLever Shifter
-
9504152787 SleeveSleeve
-
10504153287 Shifter ArmShifter Arm
-
11504153278 LeverLever
-
1241012 PinPin
-
13504153258 Shifter RodShifter Rod
-
14250000677 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16504152882 SpringSpring
-
17205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
19250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
20504152890 BearingBearing
-
21504152902 Sensor BracketSensor Bracket
-
22293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
23250400035 Cotter PinCotter Pin
-
24503189273 WasherWasher
-
25504152837 HandleHandle
-
26293300122 O-RingO-Ring
-
27504152619 Magnetic CapMagnetic Cap
-
28504152572 CirclipCirclip
-
29504153187 Bearing HousingBearing Housing
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31293350074 Ball BearingBall Bearing
-
32235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
33504153070 Counter ShaftCounter Shaft
-
34504153585 Drive Axle Ass'y. Includes 34 to 38Drive Axle Ass'y. Includes 34 to 38
-
35504153137 Sprocket, 8 TeethSprocket, 8 Teeth
-
35a504152874 Axle-driveAxle-drive
-
36504153426 Retaining RingRetaining Ring
-
37293350059 Ball BearingBall Bearing
-
38504153207 ShimShim
-
39504153264 Track Ass'y. Includes 39 to 41Track Ass'y. Includes 39 to 41
-
40415129528 Track GuideTrack Guide
-
41504152651 CleatCleat
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
