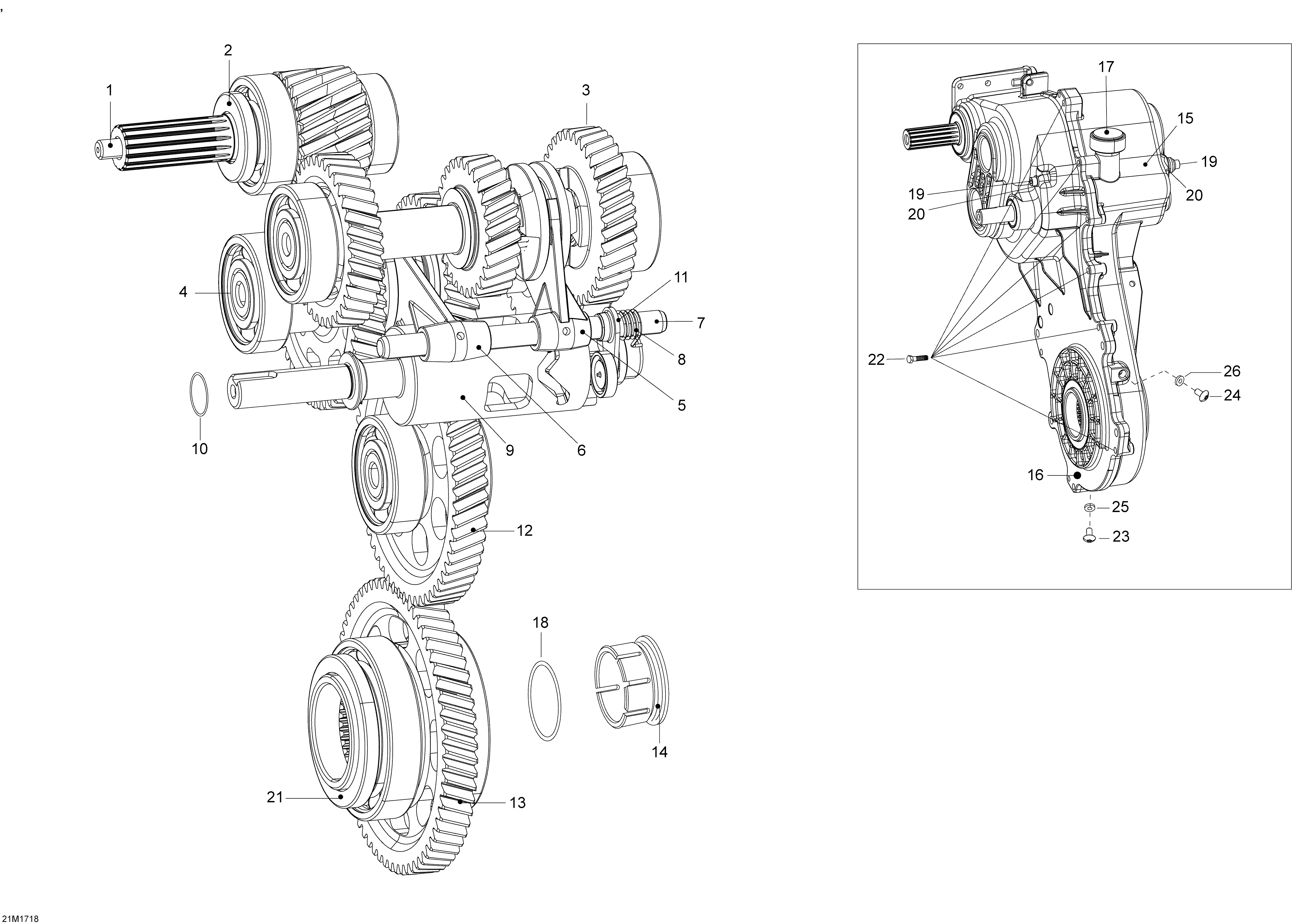

05- Transmission Fast Ratio - SWT для BRP Ski-Doo 2- SKANDIC 600HO E-TEC - 2018
-
№АртикулНазвание
-
-619230078 Transmission Ass'y (Fast Ratio)Transmission Ass'y (Fast Ratio)
-
1619230009 Countershaft Ass'yCountershaft Ass'y
-
2619230010 Oil sealOil seal
-
3619230053 Main Shaft Ass'yMain Shaft Ass'y
-
4619230071 Reverse Shaft Ass'y (Fast Ratio)Reverse Shaft Ass'y (Fast Ratio)
-
5619230055 Fork, ForwardsFork, Forwards
-
6619230015 Fork, reverseFork, reverse
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230056 Shifting DrumShifting Drum
-
10619230079 O-RingO-Ring
-
11619230021 Locking leverLocking lever
-
12619230022 Middle gearMiddle gear
-
13619230023 Lower gearLower gear
-
14619230070 Magnetic PlugMagnetic Plug
-
15619230060 Outside CoverOutside Cover
-
16619230067 Inside CoverInside Cover
-
17619230027 Plug, oilPlug, oil
-
18619230069 O-RingO-Ring
-
19619230029 ScrewScrew
-
20619230030 WasherWasher
-
21619230031 Oil sealOil seal
-
22619230076 Screw M6 x 20Screw M6 x 20
-
23619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
24619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
25615580812 Gasket RingGasket Ring
-
26619230047 Seal RingSeal Ring
