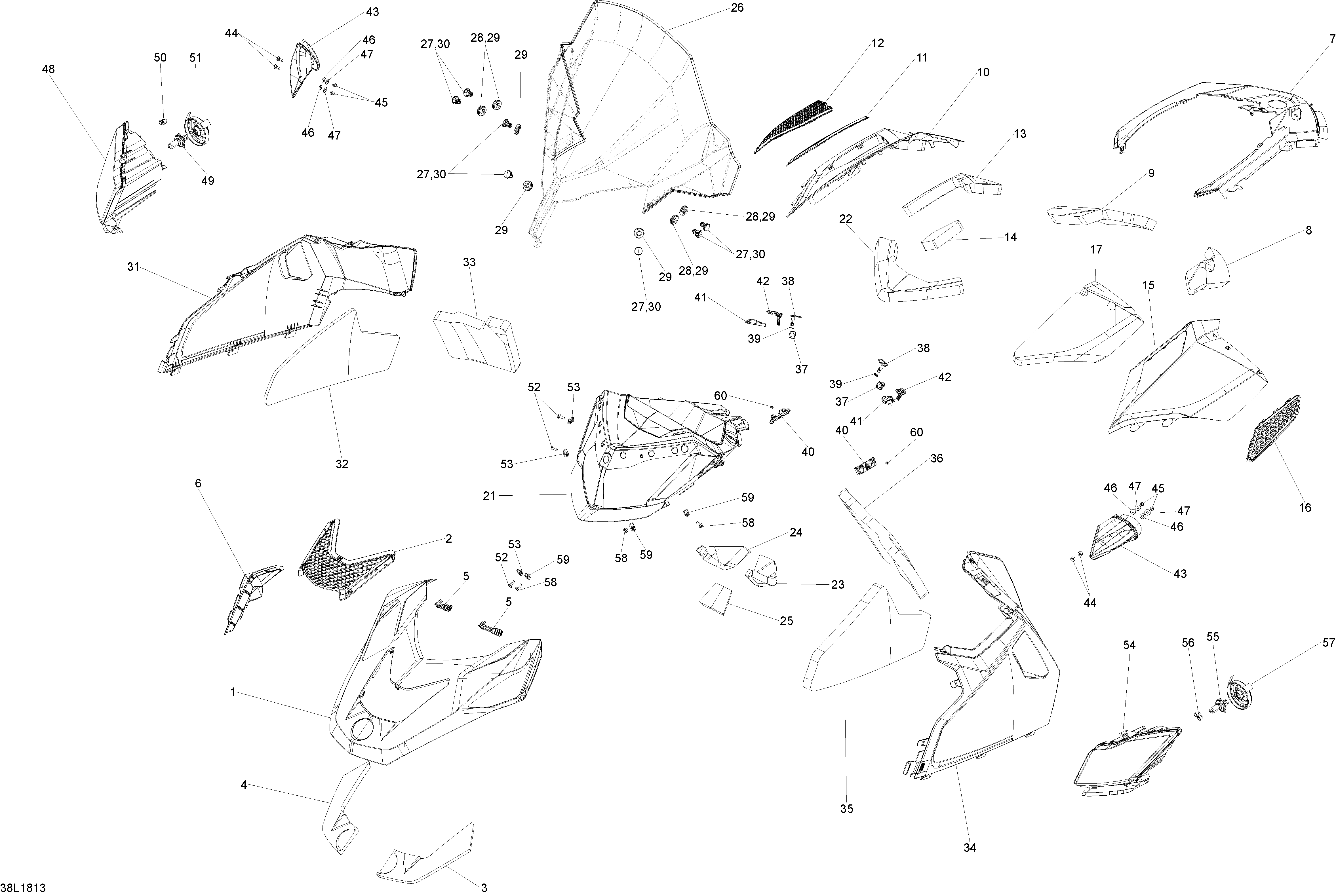

09- Hood Skandic - 600HO E-TEC для BRP Ski-Doo 2- SKANDIC 600HO E-TEC - 2018
-
№АртикулНазвание
-
1517305440 Gray HoodGray Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 Latch PannelLatch Pannel
-
6517304155 Scoop GrillScoop Grill
-
7517304820 Black ConsoleBlack Console
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517305446 Gray RH Side Access PanelGray RH Side Access Panel
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Lower Acces GrillRH Lower Acces Grill
-
13517304311 InsulatorInsulator
-
14517305987 InsulatorInsulator
-
15517305450 Gray LH Side Access PanelGray LH Side Access Panel
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517305311 InsulatorInsulator
-
19502007312 Grill plateGrill plate
-
20414644300 DartDart
-
21517304272 Indicator SupportIndicator Support
-
22517304314 InsulatorInsulator
-
23517304315 InsulatorInsulator
-
24517304316 InsulatorInsulator
-
25517304319 InsulatorInsulator
-
26860201000 Windshield Ass'y. Includes 26 to 28Windshield Ass'y. Includes 26 to 28
-
27517304744 ButtonButton
-
28517303756 GrommetGrommet
-
29517303756 GrommetGrommet
-
30517304744 ButtonButton
-
31517304328 Black Side Panel-RhBlack Side Panel-Rh
-
32517304709 Foam RightFoam Right
-
33517304310 RH Rear FoamRH Rear Foam
-
34517304329 Black Side Panel-LHBlack Side Panel-LH
-
35517304707 Foam LHFoam LH
-
36517304309 LH Rear FoamLH Rear Foam
-
37517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
38517304296 Quarter-Turn HandleQuarter-Turn Handle
-
39517304538 Locking PlateLocking Plate
-
40517303756 Grommet. Package SWTGrommet. Package SWT
-
40517304497 Side Panel Support. Package WTSide Panel Support. Package WT
-
41517304075 End Piece LatchEnd Piece Latch
-
42517306057 Latch-PanelLatch-Panel
-
43517305787 RH/LH Mirror Ass'y. Includes 43 to 47RH/LH Mirror Ass'y. Includes 43 to 47
-
44250000721 Torx ScrewTorx Screw
-
45232361493 Domed Nut M6Domed Nut M6
-
46250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
4720117 WasherWasher
-
48517304194 RH Headlamp Ass'y. Includes 48 to 51RH Headlamp Ass'y. Includes 48 to 51
-
49515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
50515176498 CapCap
-
51515176499 CoverCover
-
52250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
53250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
54517304195 LH Headlamp Ass'y. Includes 54 to 57LH Headlamp Ass'y. Includes 54 to 57
-
55515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
56515176498 CapCap
-
57515176499 CoverCover
-
58250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
59250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
60293150211 Rivet. Package WTRivet. Package WT
