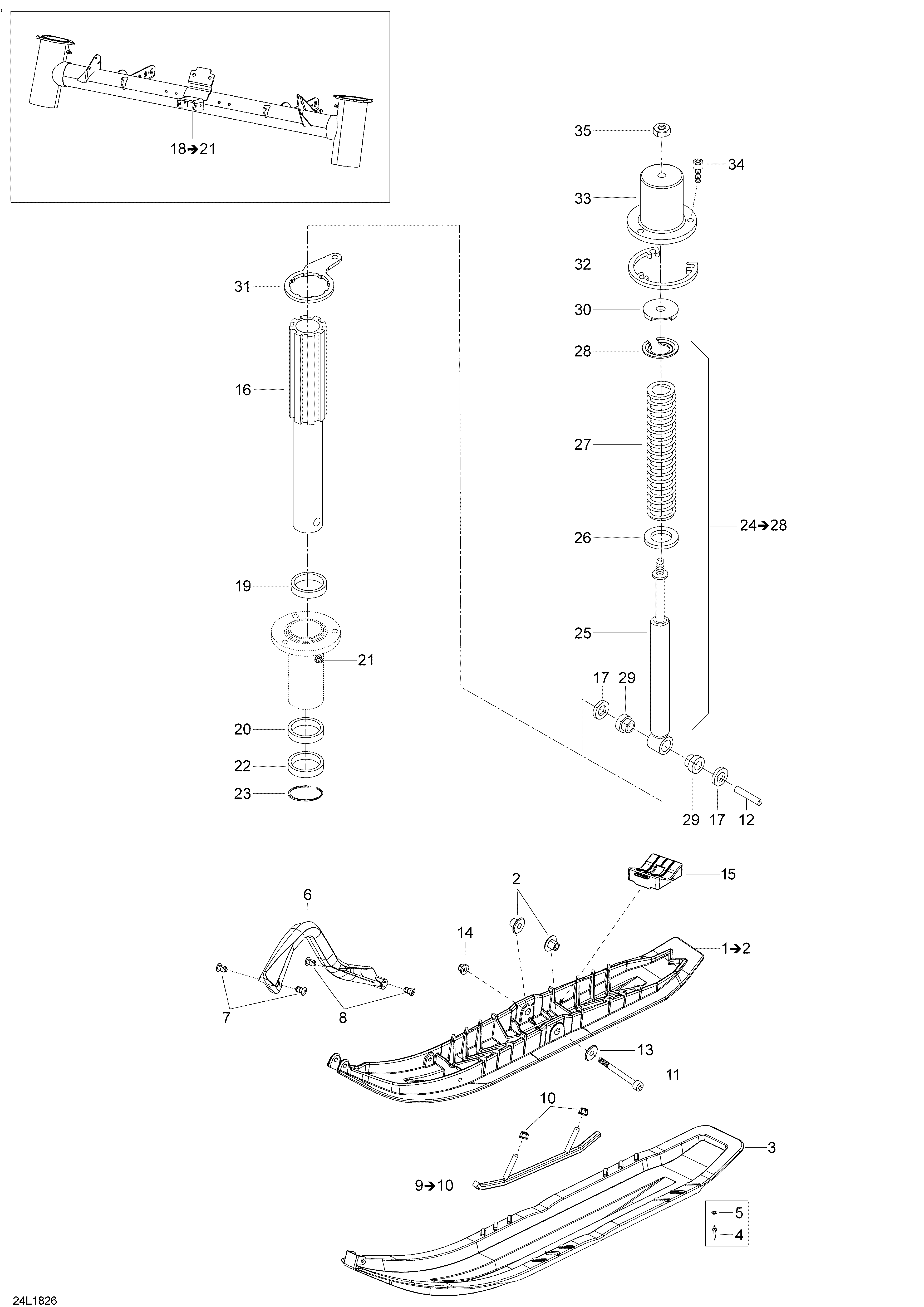

07- Front Suspension And Ski для BRP Ski-Doo 4- SKANDIC 900 ACE - 2018
-
№АртикулНазвание
-
1505073227 Black DS 2 Ski. Includes 1 To 2Black DS 2 Ski. Includes 1 To 2
-
2505071781 Ski BushingSki Bushing
-
3505073448 DS Liner. Model SWTDS Liner. Model SWT
-
4293150206 Pop Rivet. Model SWTPop Rivet. Model SWT
-
5234061410 Flat Washer 6 mm. Model SWTFlat Washer 6 mm. Model SWT
-
6505072976 Black HandleBlack Handle
-
7505071812 RetainerRetainer
-
8505072133 RetainerRetainer
-
9860201044 Carbide Runner Kit. Includes 9 To 10Carbide Runner Kit. Includes 9 To 10
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
11230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
12505073209 Ski AxleSki Axle
-
13732900049 WasherWasher
-
14233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
15505072594 Ski StopperSki Stopper
-
16505073200 Ski LegSki Leg
-
17505072579 SpacerSpacer
-
18505073967 Module Ass'y. Includes 18 To 21Module Ass'y. Includes 18 To 21
-
19414803100 Upper CushionUpper Cushion
-
20414803200 Lower CushionLower Cushion
-
21408200700 Grease FittingGrease Fitting
-
22505072696 Seal OilSeal Oil
-
23505072698 CirclipCirclip
-
25505073046 ShockShock
-
26505072578 WasherWasher
-
27505072745 Black SpringBlack Spring
-
28505072619 Spring StopperSpring Stopper
-
29572034500 CushionCushion
-
30605354835 Rubber BumberRubber Bumber
-
31505073823 Steering ArmSteering Arm
-
32505073983 SpacerSpacer
-
33505072874 Suspension Cover LHSuspension Cover LH
-
33505072875 Suspension Cover RHSuspension Cover RH
-
34205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
35233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
