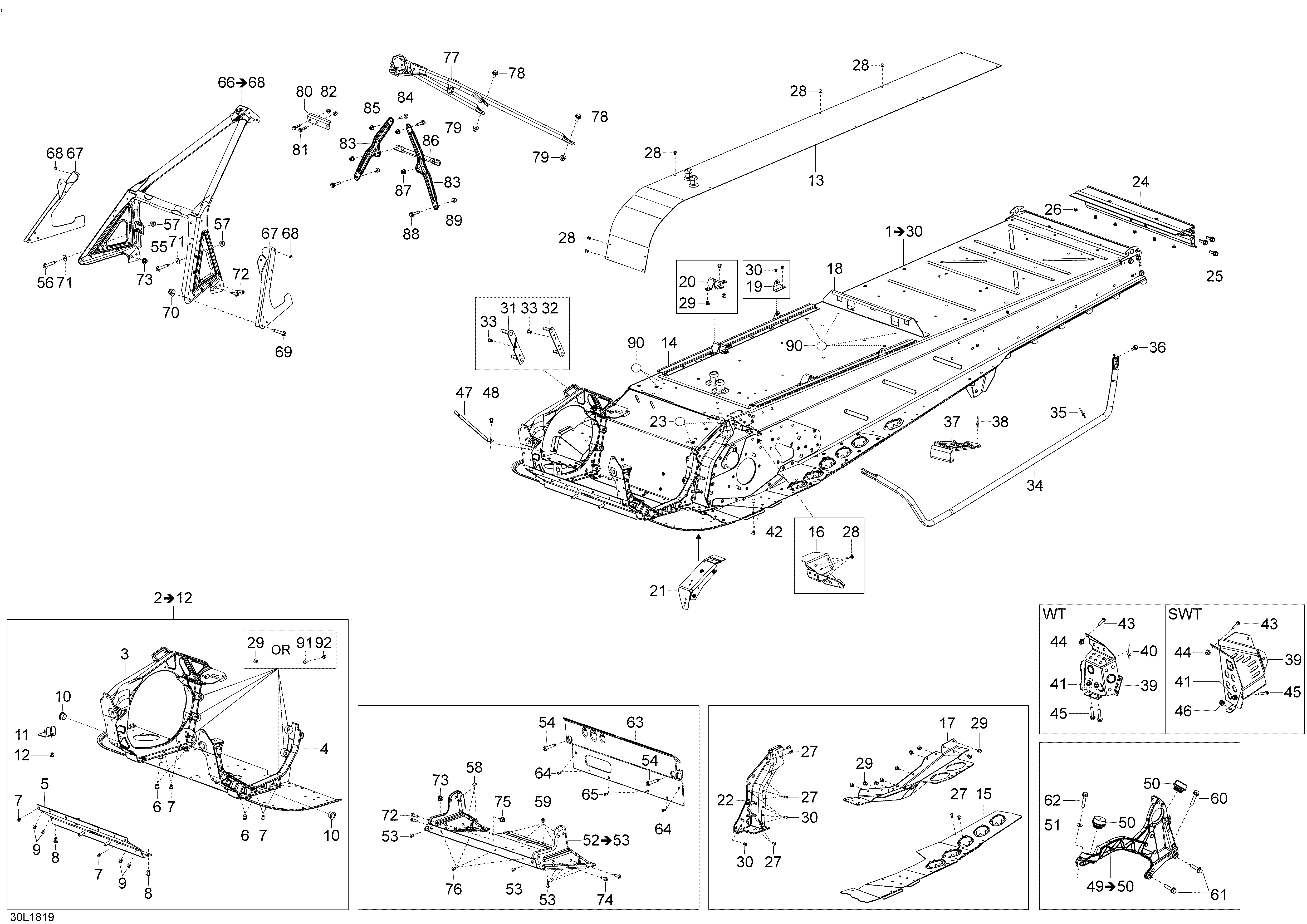

09- Frame Skandic - 900 ACE для BRP Ski-Doo 4- SKANDIC 900 ACE - 2018
-
№АртикулНазвание
-
1518329696 Black, Frame. Model WT. Includes 1 To 30Black, Frame. Model WT. Includes 1 To 30
-
1518329721 Black, Frame. Model SWT. Includes 1 To 30Black, Frame. Model SWT. Includes 1 To 30
-
2518328815 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326328 RH Side MemberRH Side Member
-
4518326330 LH Side MemberLH Side Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 Avex RivetAvex Rivet
-
8293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
9293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10505072690 Leg BushingLeg Bushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
13509000976 Tunnel RadiatorTunnel Radiator
-
14518326107 Fastening railFastening rail
-
15518328821 Footrest LH. Model WTFootrest LH. Model WT
-
15518328852 Footrest LH. Model SWTFootrest LH. Model SWT
-
15518328822 Footrest RH. Model WTFootrest RH. Model WT
-
15518328853 Footrest RH. Model SWTFootrest RH. Model SWT
-
16605355235 Fastening Bracket. Model WTFastening Bracket. Model WT
-
16518327884 Fastening Bracket. Model SWTFastening Bracket. Model SWT
-
17518328016 LH Drive Axle Cover. Model WTLH Drive Axle Cover. Model WT
-
17518328014 LH Drive Axle Cover. Model SWTLH Drive Axle Cover. Model SWT
-
17518328017 RH Drive Axle Cover. Model WTRH Drive Axle Cover. Model WT
-
17518328015 RH Drive Axle Cover. Model SWTRH Drive Axle Cover. Model SWT
-
18518325986 Battery support plate. Model WTBattery support plate. Model WT
-
18518327003 Battery Support. Model SWTBattery Support. Model SWT
-
19518329164 Seat Box BracketSeat Box Bracket
-
20518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
20518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
21518326430 Clinch nut plate. Model WTClinch nut plate. Model WT
-
21518328096 Clinch Nut Plate. Model SWTClinch Nut Plate. Model SWT
-
22518325524 Frame Corner LH. Model WTFrame Corner LH. Model WT
-
22518325643 Frame Corner LH. Model SWTFrame Corner LH. Model SWT
-
22518328024 Frame Corner RH. Model WTFrame Corner RH. Model WT
-
22518325644 Frame Corner RH. Model SWTFrame Corner RH. Model SWT
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear Profile. Model WTRear Profile. Model WT
-
24518328749 Rear Profile. Model SWTRear Profile. Model SWT
-
25207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
26293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
27390909100 Avex RivetAvex Rivet
-
28390909200 Avex RivetAvex Rivet
-
29293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
30293150183 RivetRivet
-
31518326123 Gearbox Front PlateGearbox Front Plate
-
32518326124 Gearbox Rear PlateGearbox Rear Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518326963 Footboard Support Tube, LH. Model WTFootboard Support Tube, LH. Model WT
-
34518327595 Footboard Support Tube LH. Model SWTFootboard Support Tube LH. Model SWT
-
34518326964 Footboard Support Tube, RH. Model WTFootboard Support Tube, RH. Model WT
-
34518327596 Footboard Support Tube RH. Model SWTFootboard Support Tube RH. Model SWT
-
35390909100 Avex Rivet. Model WTAvex Rivet. Model WT
-
35390909100 Avex Rivet. Model SWTAvex Rivet. Model SWT
-
36207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
37520001208 Black Rear FootrestBlack Rear Footrest
-
38293150102 Rivet 3/16''Rivet 3/16''
-
39518328819 Black LH Toe Hook. Model WTBlack LH Toe Hook. Model WT
-
39518328921 Black LH Toe Hook. Model SWTBlack LH Toe Hook. Model SWT
-
39518328820 Black RH Toe Hook. Model WTBlack RH Toe Hook. Model WT
-
39518328922 Black RH Toe Hook. Model SWTBlack RH Toe Hook. Model SWT
-
40390909200 Avex Rivet. Model WTAvex Rivet. Model WT
-
41605636003 Clinch Nut M6 Hexsert. Model WTClinch Nut M6 Hexsert. Model WT
-
41605636003 Clinch Nut M6 Hexsert. Model SWTClinch Nut M6 Hexsert. Model SWT
-
42414644300 Dart. Model WTDart. Model WT
-
43207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
46233261414 Hex. Flanged Elastic Nut M6. Model SWTHex. Flanged Elastic Nut M6. Model SWT
-
47514054846 Spring BracketSpring Bracket
-
48390909200 Avex RivetAvex Rivet
-
49518327535 Brace Ass'y. Includes 49 To 50Brace Ass'y. Includes 49 To 50
-
50512060295 Rubber MountRubber Mount
-
51234281474 Conical Spring Washer M8Conical Spring Washer M8
-
52518326213 S Module. Includes 52 To 53S Module. Includes 52 To 53
-
53390909200 Avex RivetAvex Rivet
-
54210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
55207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
56207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
57233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
58390909100 Avex RivetAvex Rivet
-
59390909200 Avex RivetAvex Rivet
-
60207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
61207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
62207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
63518326140 Engine SupportEngine Support
-
64390909100 Avex RivetAvex Rivet
-
65293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
66518327004 Front Member Assy. Includes 66 To 68Front Member Assy. Includes 66 To 68
-
67502007077 Bumper Fastener LHBumper Fastener LH
-
67502007078 Bumper Fastener RHBumper Fastener RH
-
68390909200 Avex RivetAvex Rivet
-
69207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
71224061201 Flat WasherFlat Washer
-
72207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
73233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
74207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
75233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
76390909200 Avex RivetAvex Rivet
-
77518329105 Upper Support TubeUpper Support Tube
-
78207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
79232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
80518327029 Extention Plate. Model SWTExtention Plate. Model SWT
-
81207662544 Hex. Flanged Screw M6 X 25. Model SWTHex. Flanged Screw M6 X 25. Model SWT
-
82233261414 Hex. Flanged Elastic Nut M6. Model SWTHex. Flanged Elastic Nut M6. Model SWT
-
83518326848 Upper Column SupportUpper Column Support
-
84207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
85233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
86518326355 Center Column SupportCenter Column Support
-
87233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
88207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
89233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90518325560 Adhesive PatchAdhesive Patch
-
91207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
92233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
