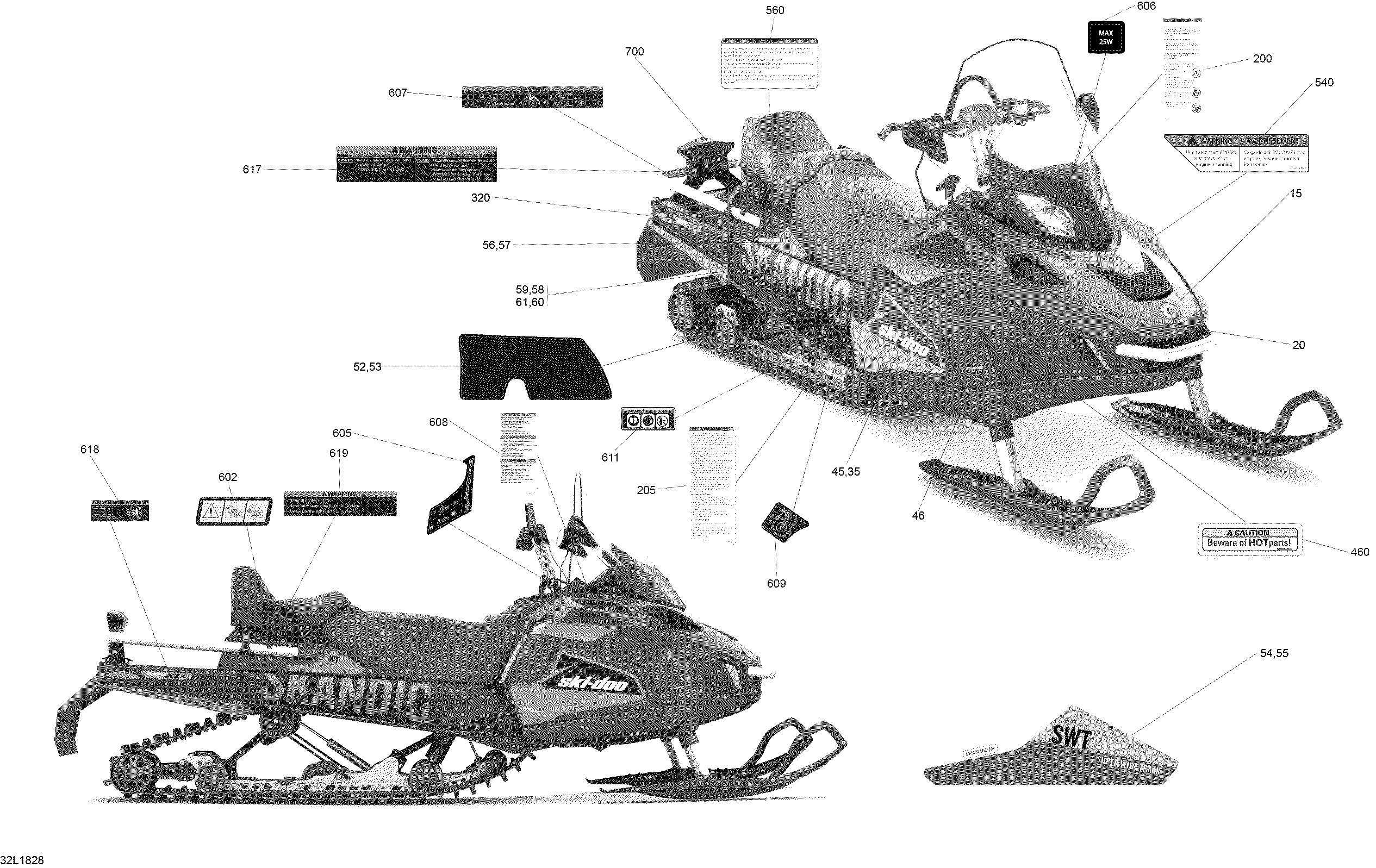

09- Decals Scandic - 900 ACE для BRP Ski-Doo 4- SKANDIC 900 ACE - 2018
-
№АртикулНазвание
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516006454 Hood DecalHood Decal
-
35516007158 LH Side Panel Decal. Package SWTLH Side Panel Decal. Package SWT
-
35516007158 LH Side Panel Decal. Package WTLH Side Panel Decal. Package WT
-
45516007159 RH Side Panel Decal. Package SWTRH Side Panel Decal. Package SWT
-
45516007159 RH Side Panel Decal. Package WTRH Side Panel Decal. Package WT
-
46516007160 LTS Suspension Decal. Package SWTLTS Suspension Decal. Package SWT
-
46516007160 LTS Suspension Decal. Package WTLTS Suspension Decal. Package WT
-
52516005121 Decal, Tunnel RH. Package SWTDecal, Tunnel RH. Package SWT
-
53516005122 Decal, Tunnel LH. Package SWTDecal, Tunnel LH. Package SWT
-
54516007161 LH Storage Box Decal. Package SWTLH Storage Box Decal. Package SWT
-
55516007162 RH Storage Box Decal. Package SWTRH Storage Box Decal. Package SWT
-
56516007163 LH Storage Box Decal. Package WTLH Storage Box Decal. Package WT
-
57516007164 RH Storage Box Decal. Package WTRH Storage Box Decal. Package WT
-
58516007165 LH Frame Decal. Package SWTLH Frame Decal. Package SWT
-
59516007166 RH Frame Decal. Package WTRH Frame Decal. Package WT
-
60516007165 LH Frame Decal. Package WTLH Frame Decal. Package WT
-
61516007166 RH Frame Decal. Package SWTRH Frame Decal. Package SWT
-
200516004652 Warning Decal. North AmericaWarning Decal. North America
-
205516004653 Warning Decal. North AmericaWarning Decal. North America
-
320516007167 REV XU DecalREV XU Decal
-
460516006903 Hot Parts DecalHot Parts Decal
-
540516005683 Security label, drive pulley cover. North AmericaSecurity label, drive pulley cover. North America
-
560516005682 Decal warning. North AmericaDecal warning. North America
-
602516005111 Instruction Decal, Back Seat LockingInstruction Decal, Back Seat Locking
-
605516004305 Instruction Label, Transmission. Package WTInstruction Label, Transmission. Package WT
-
605516004305 Instruction Label, Transmission. Package SWTInstruction Label, Transmission. Package SWT
-
606516003918 Power Outlet Decal (25W). EuropePower Outlet Decal (25W). Europe
-
607516008675 Warning Label. EuropeWarning Label. Europe
-
608516006403 Instruction/Warning Decal, FI/SWE/EN. EuropeInstruction/Warning Decal, FI/SWE/EN. Europe
-
609516003925 Checking Label, Transmission. Package WTChecking Label, Transmission. Package WT
-
611516002703 Decal, Europe. EuropeDecal, Europe. Europe
-
617516004960 Rear Security Decal, English. North AmericaRear Security Decal, English. North America
-
618516007583 Rotating Track Warning Decal. North AmericaRotating Track Warning Decal. North America
-
618516007584 Warning Decal. EuropeWarning Decal. Europe
-
619516004961 Security Decal. North AmericaSecurity Decal. North America
-
700516006887 BRP Logo, 48 mmBRP Logo, 48 mm
