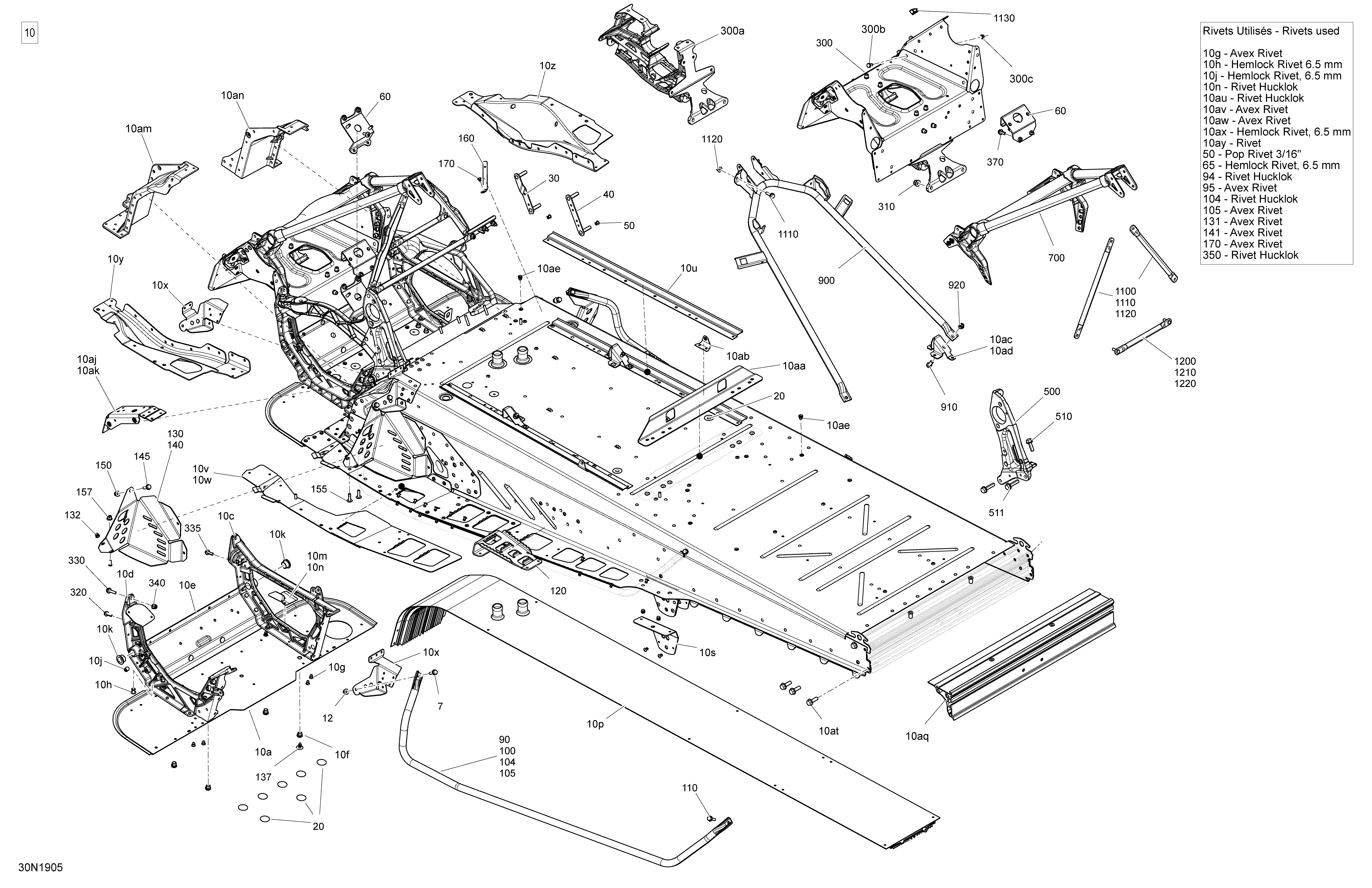

09- Frame для BRP Ski-Doo 004 - EXPEDITION LE-SE 600HO E-TEC - 2019
-
№АртикулНазвание
-
10518329694 Black, Frame. Includes 10 to 10ayBlack, Frame. Includes 10 to 10ay
-
10a518329691 Module E. Includes 10a to 10mModule E. Includes 10a to 10m
-
10c518326795 RH MemberRH Member
-
10d518326796 LH MemberLH Member
-
10e518326198 Front MemberFront Member
-
10f605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
10g390909100 Avex RivetAvex Rivet
-
10h293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10j293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10k505072690 Leg BushingLeg Bushing
-
10m518328194 Muffler SupportMuffler Support
-
10n293150163 Rivet HucklokRivet Hucklok
-
10p509000976 Tunnel RadiatorTunnel Radiator
-
10s518329083 Rear Arm BracketRear Arm Bracket
-
10u518326107 Fastening railFastening rail
-
10v518328821 Footrest LHFootrest LH
-
10w518328822 Footrest RHFootrest RH
-
10x605355235 Fastening BracketFastening Bracket
-
10y518328016 LH Drive Axle CoverLH Drive Axle Cover
-
10z518328017 RH Drive Axle CoverRH Drive Axle Cover
-
10aa518325986 Battery support plateBattery support plate
-
10ab518329164 Seat Box BracketSeat Box Bracket
-
10ac518329109 LH Support Tube BracketLH Support Tube Bracket
-
10ad518329110 RH Support Tube BracketRH Support Tube Bracket
-
10ae605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10aj518326430 Clinch Nut plateClinch Nut plate
-
10ak250100065 Clinching Nut Hexert M8Clinching Nut Hexert M8
-
10am518325524 LH Frame CornerLH Frame Corner
-
10an518328024 RH Frame CornerRH Frame Corner
-
10aq518328748 Rear ProfileRear Profile
-
10at207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10au293150163 Rivet HucklokRivet Hucklok
-
10av390909100 Avex RivetAvex Rivet
-
10aw390909200 Avex RivetAvex Rivet
-
10ax293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10ay293150183 RivetRivet
-
20518325560 Adhesive PatchAdhesive Patch
-
30518326123 Gearbox Front PlateGearbox Front Plate
-
40518326124 Gearbox Rear PlateGearbox Rear Plate
-
50390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60518325943 MAG Engine SupportMAG Engine Support
-
65293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
90518326963 Footboard Support Tube, LHFootboard Support Tube, LH
-
94293150163 Rivet HucklokRivet Hucklok
-
95390909100 Avex RivetAvex Rivet
-
100518326964 Footboard Support Tube, RHFootboard Support Tube, RH
-
104293150163 Rivet HucklokRivet Hucklok
-
105390909100 Avex RivetAvex Rivet
-
110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
120520001208 Black Rear FootrestBlack Rear Footrest
-
130518327375 Toe hold L.H.. Package SEToe hold L.H.. Package SE
-
130518327374 Black LH Toe Hook. Package LEBlack LH Toe Hook. Package LE
-
131390909200 Avex RivetAvex Rivet
-
132605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
137414644300 Dart. Package LEDart. Package LE
-
140518327376 Black RH Toe HookBlack RH Toe Hook
-
141390909200 Avex RivetAvex Rivet
-
145207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
155250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
160514054846 Spring BracketSpring Bracket
-
170390909200 Avex RivetAvex Rivet
-
300518328392 Cross Member. Package LE. Includes 300 to 300aCross Member. Package LE. Includes 300 to 300a
-
300518328396 Cross Member. Package SE. Includes 300 to 300aCross Member. Package SE. Includes 300 to 300a
-
300a518327487 Front Suspension SupportFront Suspension Support
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
335207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150163 Rivet HucklokRivet Hucklok
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
500518328434 Pulley SupportPulley Support
-
510207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
511207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
700518326970 Front MemberFront Member
-
900518329105 Upper Support TubeUpper Support Tube
-
910207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
920232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1100518325114 Upper Lateral Column SupportUpper Lateral Column Support
-
1110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130414227300 ClipClip
-
1200518325115 Center Column SupportCenter Column Support
-
1210207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
