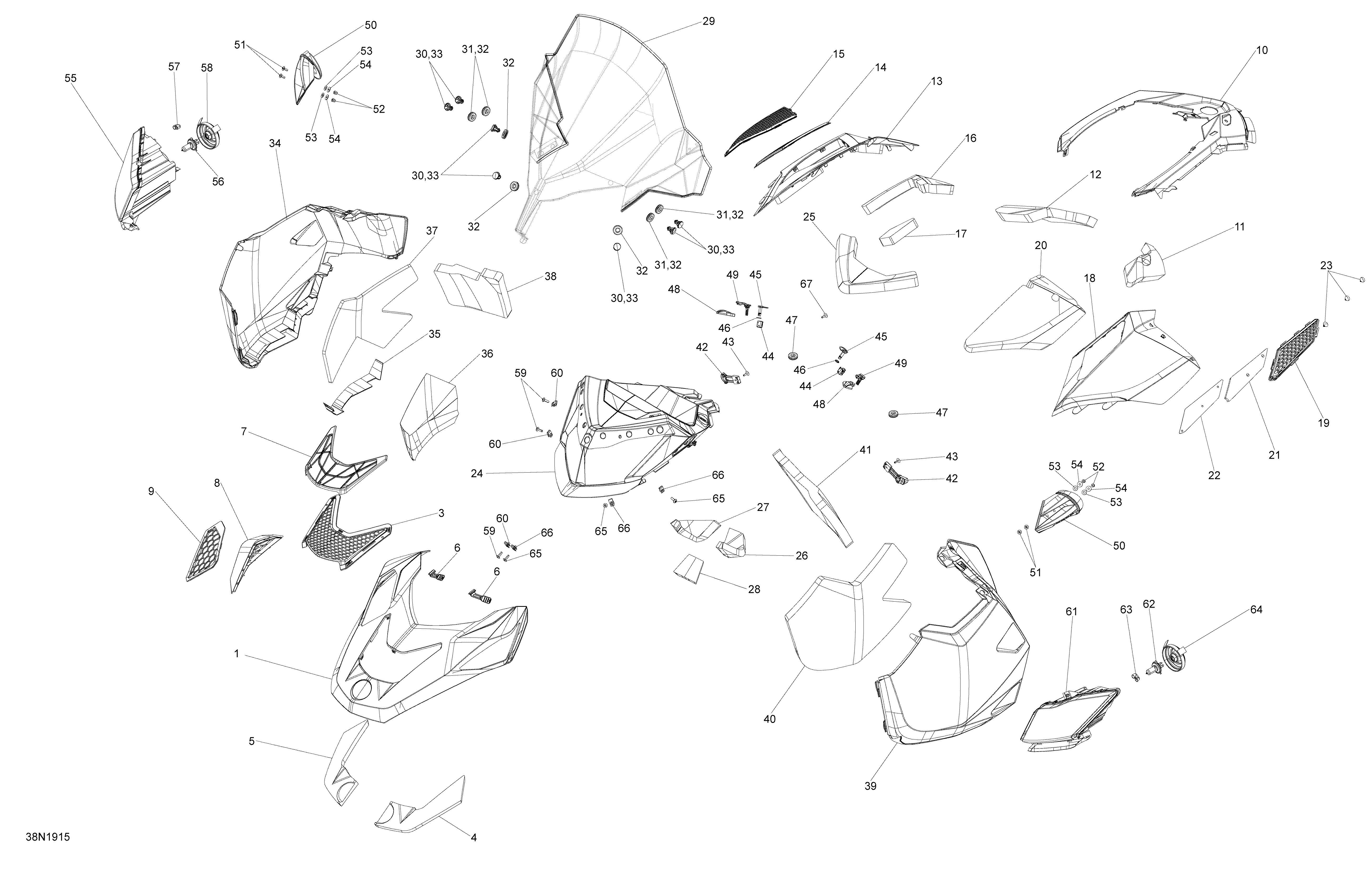

09- Hood для BRP Ski-Doo 004 - EXPEDITION LE-SE 600HO E-TEC - 2019
-
№АртикулНазвание
-
1517304810 Hood. Viper RedHood. Viper Red
-
1517305846 Hood. Squadron GreenHood. Squadron Green
-
1517306789 Hood. Sunburst YellowHood. Sunburst Yellow
-
3517304843 Hood GrillHood Grill
-
4517304330 InsulatorInsulator
-
5517304214 InsulatorInsulator
-
6517304289 Latch PannelLatch Pannel
-
8517306980 Scoop GrillScoop Grill
-
10517305220 Black ConsoleBlack Console
-
11517305644 InsulatorInsulator
-
12517304318 InsulatorInsulator
-
13517304831 RH Side Access Panel. Viper RedRH Side Access Panel. Viper Red
-
13517305848 RH Side Access Panel. Squadron GreenRH Side Access Panel. Squadron Green
-
13517306791 RH Side Access Panel. Sunburst YellowRH Side Access Panel. Sunburst Yellow
-
14517304015 RH Access Panel GrillRH Access Panel Grill
-
15517304016 RH Lower Acces GrillRH Lower Acces Grill
-
16517304311 InsulatorInsulator
-
17517305987 InsulatorInsulator
-
18517304841 LH Side Access Panel. Viper RedLH Side Access Panel. Viper Red
-
18517305850 LH Side Access Panel. Squadron GreenLH Side Access Panel. Squadron Green
-
18517306793 LH Side Access Panel. Sunburst YellowLH Side Access Panel. Sunburst Yellow
-
19517303893 LH Access Panel GrillLH Access Panel Grill
-
20517304313 InsulatorInsulator
-
21517305311 InsulatorInsulator
-
22502007312 Grill plateGrill plate
-
23414644300 DartDart
-
24517304272 Indicator SupportIndicator Support
-
25517304314 InsulatorInsulator
-
26517304315 InsulatorInsulator
-
27517304316 InsulatorInsulator
-
28517304319 InsulatorInsulator
-
29860201000 Windshield Ass'yWindshield Ass'y
-
32517303756 GrommetGrommet
-
33517304744 ButtonButton
-
34517306970 Black, RH Side PanelBlack, RH Side Panel
-
35517306504 Aluminium FoilAluminium Foil
-
36517306505 Aluminium FoilAluminium Foil
-
37517303890 RH FoamRH Foam
-
38517304310 RH Rear FoamRH Rear Foam
-
39517306973 Black, LH Side PanelBlack, LH Side Panel
-
40517303891 LH FoamLH Foam
-
41517304309 LH Rear FoamLH Rear Foam
-
42517304572 Latch-PanelLatch-Panel
-
43293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
44517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
45517304296 Quarter-Turn HandleQuarter-Turn Handle
-
46517304538 Locking PlateLocking Plate
-
47517304497 Side Panel SupportSide Panel Support
-
48517304075 End Piece LatchEnd Piece Latch
-
49517306057 Latch-PanelLatch-Panel
-
50517305787 RH/LH Mirror Ass'y. Includes 50 to 54RH/LH Mirror Ass'y. Includes 50 to 54
-
51250000721 Torx ScrewTorx Screw
-
52232361493 Domed Nut M6Domed Nut M6
-
53250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
5420117 WasherWasher
-
55517304194 RH Headlamp Ass'y. Includes 55 to 58RH Headlamp Ass'y. Includes 55 to 58
-
56515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
57515176498 CapCap
-
58515176499 CoverCover
-
59250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
60250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
61517304195 LH Headlamp Ass'y. Includes 61 to 64LH Headlamp Ass'y. Includes 61 to 64
-
62515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
63515176498 CapCap
-
64515176499 CoverCover
-
65250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
66250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
67293150211 RivetRivet
