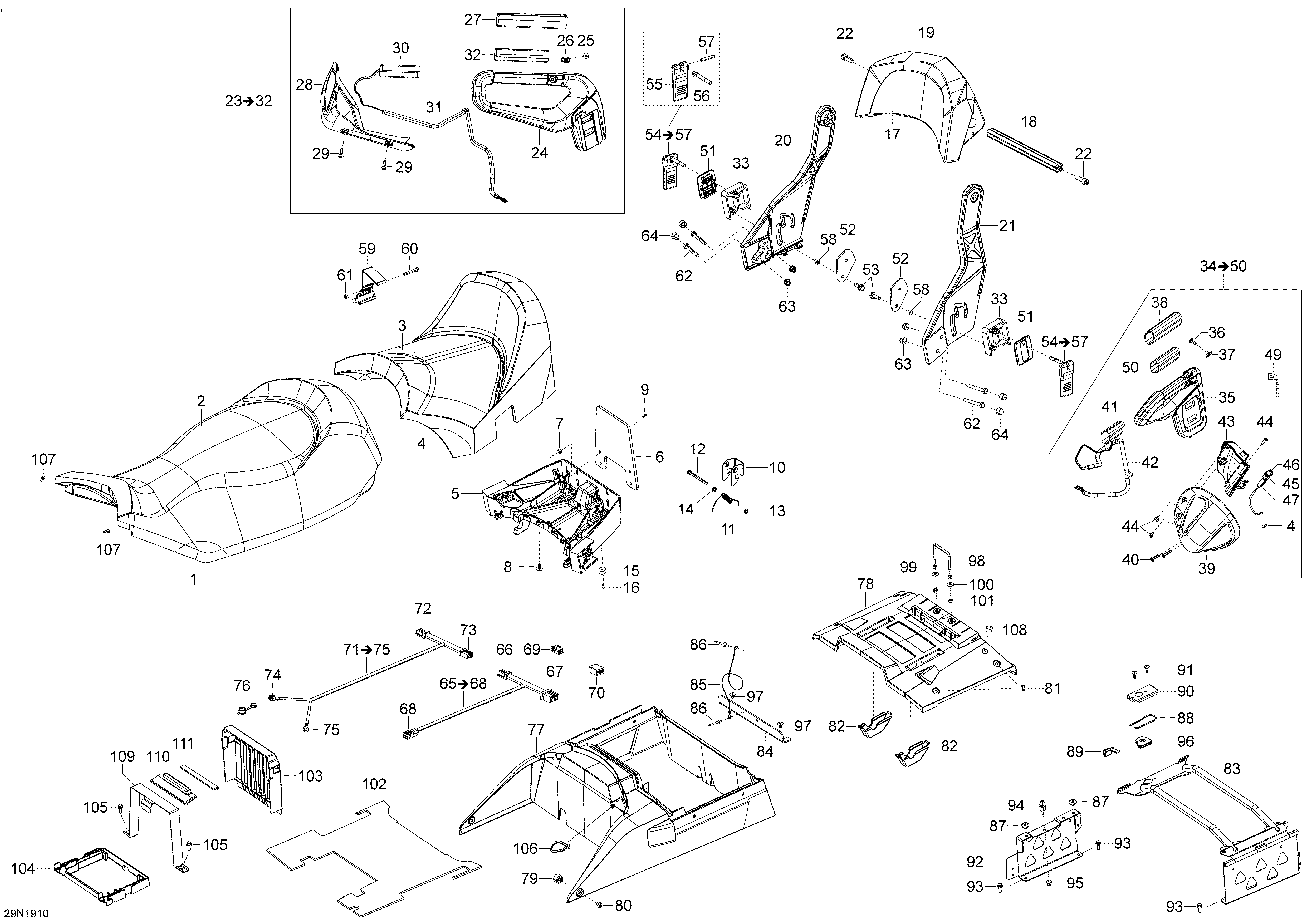

09- Seat - 600HO E-TEC для BRP Ski-Doo 004 - EXPEDITION LE-SE 600HO E-TEC - 2019
-
№АртикулНазвание
-
1510005999 Front Seat Foam. Color theme STDFront Seat Foam. Color theme STD
-
2510006779 Front Seat Cover. Color theme RedFront Seat Cover. Color theme Red
-
3510005256 Cover rearCover rear
-
4510006094 Rear Seat FoamRear Seat Foam
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7234062410 Flat Washer 6 mmFlat Washer 6 mm
-
8414644300 DartDart
-
9293150067 RivetRivet
-
10708000144 Latch, BlackLatch, Black
-
11708000369 SpringSpring
-
12207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
13732610072 Push NutPush Nut
-
14234061410 Flat Washer 6 mmFlat Washer 6 mm
-
15510006005 Stopper RubberStopper Rubber
-
16293150015 Pop Rivet 1/8”Pop Rivet 1/8”
-
17510006210 Foam Assy Black. Backrest 16. Includes 17 to 20Foam Assy Black. Backrest 16. Includes 17 to 20
-
19510006205 Backrest FoamBackrest Foam
-
20510005259 Backrest CoverBackrest Cover
-
21510005420 RH ArmRH Arm
-
22510005419 LH ArmLH Arm
-
23250000553 Forming Screw M10 x 25Forming Screw M10 x 25
-
24510006738 RH Handle Ass'y. Includes 24 to 32RH Handle Ass'y. Includes 24 to 32
-
25250000721 Torx ScrewTorx Screw
-
26293100003 Nut Welded, M6Nut Welded, M6
-
27510004449 Handle GripHandle Grip
-
28510004415 RH DeflectorRH Deflector
-
29250000961 Screw 25MMScrew 25MM
-
30515176393 HeaterHeater
-
31515175506 TubingTubing
-
32510005863 Handle ReinforcementHandle Reinforcement
-
33510004939 AdapterAdapter
-
34510006737 LH Handle Ass'y. Includes 34 to 50LH Handle Ass'y. Includes 34 to 50
-
36250000721 Torx ScrewTorx Screw
-
37293100003 Nut Welded, M6Nut Welded, M6
-
38510004449 Handle GripHandle Grip
-
39510004416 LH DeflectorLH Deflector
-
40250000961 Screw 25MMScrew 25MM
-
41515176393 HeaterHeater
-
42515175506 TubingTubing
-
43510004566 Switch HousingSwitch Housing
-
44250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
45510004413 Rocker SwitchRocker Switch
-
46510004414 Switch ProtectorSwitch Protector
-
47515176241 LH Handle HarnessLH Handle Harness
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49516002835 Handle Heater DecalHandle Heater Decal
-
50510005863 Handle ReinforcementHandle Reinforcement
-
51510006602 Passenger Handle TrimPassenger Handle Trim
-
52510004990 Counter PlateCounter Plate
-
53250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
54510004992 Lock Ass'y. Includes 54 to 57Lock Ass'y. Includes 54 to 57
-
555243419 LockLock
-
56510004993 ScrewScrew
-
57414821400 PinPin
-
58510005507 SleeveSleeve
-
59510005139 Security LockSecurity Lock
-
60205065044 Socket Head Screw M6 X 50Socket Head Screw M6 X 50
-
61232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
62207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
63233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6428056 CoverCover
-
65515177209 Seat Harness 2012Seat Harness 2012
-
69515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
70515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
71515177210 Seat HarnessSeat Harness
-
76572103300 CapCap
-
77510006243 Storage BoxStorage Box
-
78510006244 Storage Box CoverStorage Box Cover
-
79510005147 BushingBushing
-
80250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
81293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
82510004999 CoverCover
-
83510005714 Lock tubeLock tube
-
84510005156 Cable Support PlateCable Support Plate
-
85293750070 Seat Retainer CableSeat Retainer Cable
-
86293150163 Rivet HucklokRivet Hucklok
-
87605452114 PlugPlug
-
88269700017 Latch SpringLatch Spring
-
89510005072 PullerPuller
-
90510005698 Lock Pin CoverLock Pin Cover
-
91250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
92510005845 Locking PlateLocking Plate
-
93207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
94605452035 Lock PinLock Pin
-
95233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
96510005044 Lock Pin GuideLock Pin Guide
-
97250000675 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
98510004876 Fastener PinFastener Pin
-
99250000135 Hex. Nut M6Hex. Nut M6
-
10020117 WasherWasher
-
101232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
102510005043 FoamFoam
-
103510005079 Battery CoverBattery Cover
-
104515176804 Battery SupportBattery Support
-
105207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
106605627000 Tie-RapTie-Rap
-
107250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
108572051500 Cap. Model ExtremeCap. Model Extreme
-
109510005143 Battery Strap. 18 ampere/hourBattery Strap. 18 ampere/hour
-
109510005250 Battery Strap. 30 ampere/hourBattery Strap. 30 ampere/hour
-
110510005146 Strap CoverStrap Cover
