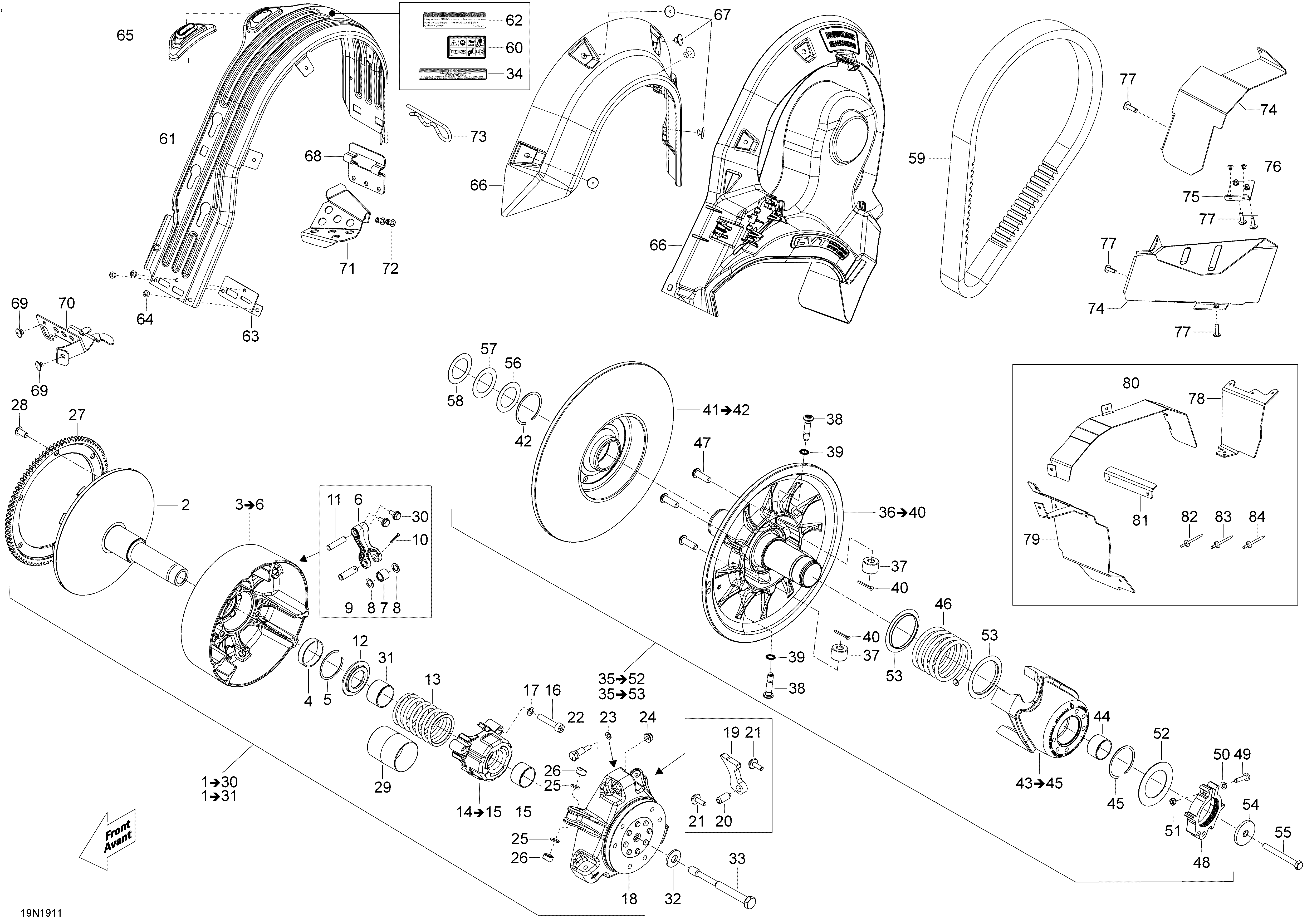

05- Pulley - 800R E-TEC для BRP Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC - 2019
-
№АртикулНазвание
-
2417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223444 Sliding Flange Ass'y. Includes 3 to 5Sliding Flange Ass'y. Includes 3 to 5
-
4417223086 BushingBushing
-
5293370071 CirclipCirclip
-
6417222671 LeverLever
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417222594 PinPin
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414742100 Spring Yellow/GreenSpring Yellow/Green
-
14417222759 Spring Cover Ass'y. Includes 14 to 15Spring Cover Ass'y. Includes 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 1.25 X 40Socket Head Screw M8 X 1.25 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
19417222508 Ramp 413. EuropeRamp 413. Europe
-
19417224238 Ramp 450. North AmericaRamp 450. North America
-
20250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
22417223501 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
25732401030 O-RingO-Ring
-
26417223271 Slider ShoeSlider Shoe
-
27417223739 Ring GearRing Gear
-
28250000533 Hex. Flange Screw M8 X 1.25 X 16Hex. Flange Screw M8 X 1.25 X 16
-
29417009205 GuardGuard
-
30250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
31417223471 BushingBushing
-
32250200144 Conical Spring Washer M14Conical Spring Washer M14
-
33417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
34516005503 Decal, EnglishDecal, English
-
36417127433 Fixed Flange Ass'yFixed Flange Ass'y
-
41417127366 Slider Flange Ass'ySlider Flange Ass'y
-
43417127411 Cam Ass'yCam Ass'y
-
46417127039 Black SpringBlack Spring
-
46.1417127116 Swivel AbutmentSwivel Abutment
-
47250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
48415129604 Calibration Ass'yCalibration Ass'y
-
49205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
50234051410 Flat Washer M5Flat Washer M5
-
51232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
52417127155 WasherWasher
-
54517302322 Strength WasherStrength Washer
-
55207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
56417300252 SpacerSpacer
-
57417300265 SpacerSpacer
-
58504112000 ShimShim
-
59417300531 Drive BeltDrive Belt
-
60516003919 Warning Decal. EuropeWarning Decal. Europe
-
61417300357 Belt GuardBelt Guard
-
62516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
63417300380 ReinforcementReinforcement
-
64390909200 Avex RivetAvex Rivet
-
65417300381 GuideGuide
-
66417300441 CVT Air DuctCVT Air Duct
-
67293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
67293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
78417300518 Air Duct Extreme Cvt. North AmericaAir Duct Extreme Cvt. North America
-
79417300527 Air Duct Extreme Cvt. North AmericaAir Duct Extreme Cvt. North America
-
80417300520 Air Duct Extreme Cvt. North AmericaAir Duct Extreme Cvt. North America
-
81417300521 Air Duct Extreme Cvt. North AmericaAir Duct Extreme Cvt. North America
-
82390909100 Avex Rivet. North AmericaAvex Rivet. North America
-
83390909200 Avex Rivet. North AmericaAvex Rivet. North America
-
84293150103 Pop Rivet 3/16''. North AmericaPop Rivet 3/16''. North America
-
68417300363 Belt Guard BracketBelt Guard Bracket
-
69293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
70417300364 Belt Guard BracketBelt Guard Bracket
-
71518325626 Brake Hose CoverBrake Hose Cover
-
72293150163 Rivet HucklokRivet Hucklok
-
73114045200 Hair PinHair Pin
-
74417300461 Air Duct. Includes 550 to 550aAir Duct. Includes 550 to 550a
-
74.1605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
75417300497 Air Duct BracketAir Duct Bracket
-
76293150102 Rivet 3/16''Rivet 3/16''
-
77250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
77293150096 Hemlock Rivet, 6.5 mm. EuropeHemlock Rivet, 6.5 mm. Europe
-
89232561414 Elastic Stop Nut M6Elastic Stop Nut M6
