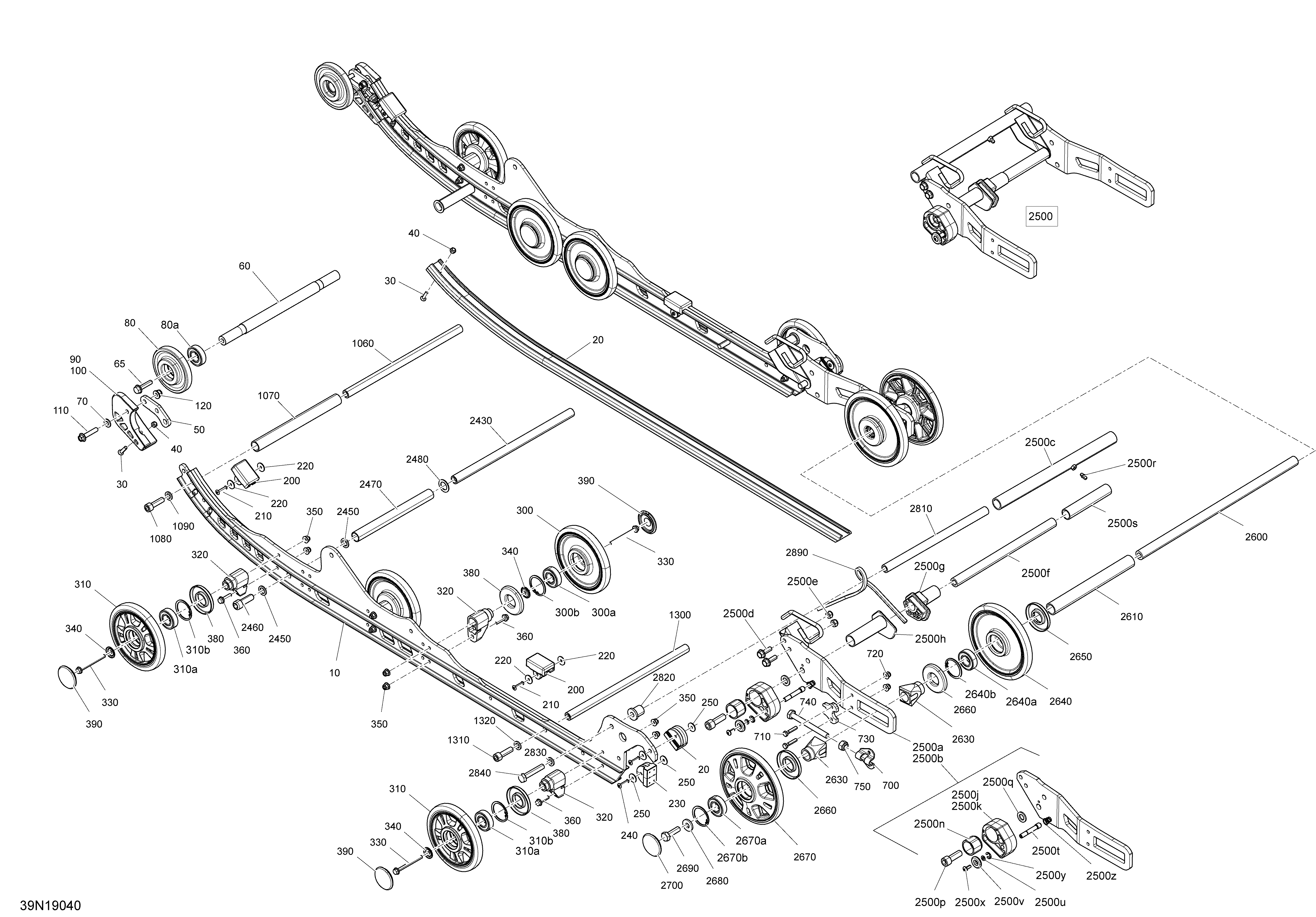

08- Rear Suspensions - Lower Section для BRP Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC - 2019
-
№АртикулНазвание
-
10503194351 Black RunnerBlack Runner
-
20503192618 Black Slider, 154''Black Slider, 154''
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
50503192612 PlatePlate
-
60503192643 AxleAxle
-
65250000986 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
70503189157 WasherWasher
-
80503192611 Black Wheel Ass'y, 100 mmBlack Wheel Ass'y, 100 mm
-
80a503190396 Ball BearingBall Bearing
-
90503192610 RH ProtectorRH Protector
-
100503192609 LH ProtectorLH Protector
-
110207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
120233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200503190576 Rubber StopperRubber Stopper
-
210293150224 Rivet Pop 3/16Rivet Pop 3/16
-
220503191273 WasherWasher
-
230503191291 Rubber StopperRubber Stopper
-
240293150224 Rivet Pop 3/16Rivet Pop 3/16
-
250503191273 WasherWasher
-
300503191311 Black, Wheel Ass'y 147 mm. Includes 300 to 300bBlack, Wheel Ass'y 147 mm. Includes 300 to 300b
-
300a503190396 Ball BearingBall Bearing
-
300b415129371 Retaining RingRetaining Ring
-
310503191152 Black, Wheel Ass'y 147 mm. Includes 310 to 310bBlack, Wheel Ass'y 147 mm. Includes 310 to 310b
-
310a503190396 Ball BearingBall Bearing
-
310b415129371 Retaining RingRetaining Ring
-
320503193894 Casted SupportCasted Support
-
330207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
340503191820 Wheel Cup M6Wheel Cup M6
-
350233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
360207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
380503190434 Labyrinth SealLabyrinth Seal
-
390503192771 Black, Wheel CapBlack, Wheel Cap
-
700503192583 TensionerTensioner
-
710207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
720233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
730503193250 SpacerSpacer
-
740230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
750233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1060503192623 Axle StrapAxle Strap
-
1070503192679 SpacerSpacer
-
1080205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
1090503189564 WasherWasher
-
1300503191418 Axle StrapAxle Strap
-
1310205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
1320503189564 WasherWasher
-
2430503193967 ShaftShaft
-
2450503189276 WasherWasher
-
2460205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
2470503191421 SpacerSpacer
-
2480503189273 WasherWasher
-
2500503194354 Pivot Support Assembly, Long BlackPivot Support Assembly, Long Black
-
2500a503193970 RH Rail PivotRH Rail Pivot
-
2500b503193969 LH Rail PivotLH Rail Pivot
-
2500c503191414 Welded PivotWelded Pivot
-
2500d207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
2500e232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2500f503191711 Cam AxleCam Axle
-
2500g503191190 RH Spring CamRH Spring Cam
-
2500h503191668 LH Spring CamLH Spring Cam
-
2500j503192426 LH BlockLH Block
-
2500k503192427 RH BlockRH Block
-
2500n503189488 Block GuideBlock Guide
-
2500p205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
2500q503189148 WasherWasher
-
2500r408200700 Grease FittingGrease Fitting
-
2500s503191713 SpacerSpacer
-
2500t503192437 RodeRode
-
2500u234051410 Flat Washer M5Flat Washer M5
-
2500v503192438 HandleHandle
-
2500x250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
2500y293370068 CirclipCirclip
-
2500z503192436 Compression SpringCompression Spring
-
2600503191408 Rear AxleRear Axle
-
2610503191409 SpacerSpacer
-
2630503190428 Rear Wheel SpacerRear Wheel Spacer
-
2640503192140 Black, Wheel Ass'y, 165 mm. Includes 2640 to 2640bBlack, Wheel Ass'y, 165 mm. Includes 2640 to 2640b
-
2640a503190396 Ball BearingBall Bearing
-
2640b415129371 Retaining RingRetaining Ring
-
2650503190682 Labyrinth SealLabyrinth Seal
-
2660503190434 Labyrinth SealLabyrinth Seal
-
2670503192128 Deep Black, Wheel Ass'y, 165 mm. Includes 2670 to 2670bDeep Black, Wheel Ass'y, 165 mm. Includes 2670 to 2670b
-
2670a503190396 Ball BearingBall Bearing
-
2670b415129371 Retaining RingRetaining Ring
-
2680503190439 WasherWasher
-
2690250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
2700503192771 Black, Wheel CapBlack, Wheel Cap
-
2810503191390 Lower ShaftLower Shaft
-
2820503189324 BushingBushing
-
2830503192496 WasherWasher
-
2840250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2890503194624 SpringSpring
