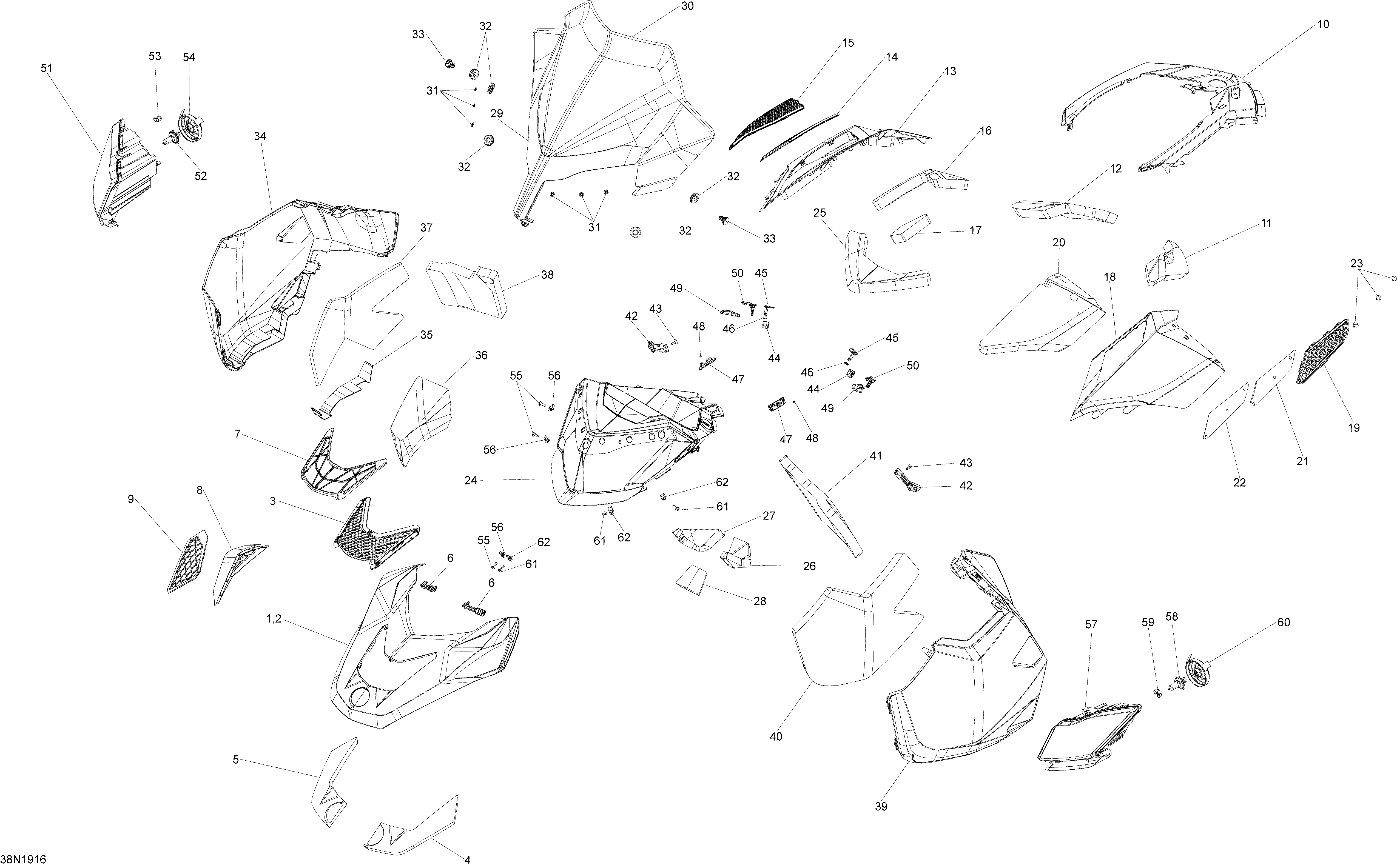

09- Hood для BRP Ski-Doo 005 - EXPEDITION XTREME 800R E-TEC - 2019
-
№АртикулНазвание
-
1517305818 Black Hood. Includes 1 to 2Black Hood. Includes 1 to 2
-
2517304812 Black HoodBlack Hood
-
3517304843 Hood GrillHood Grill
-
4517304330 InsulatorInsulator
-
5517304214 InsulatorInsulator
-
6517304289 Latch PannelLatch Pannel
-
7517305553 Hood Grill With MeshHood Grill With Mesh
-
8517306981 Intake GrillIntake Grill
-
9517304584 Intake GrillIntake Grill
-
10517304820 Black ConsoleBlack Console
-
11517305644 InsulatorInsulator
-
12517304318 InsulatorInsulator
-
13517304829 Black, RH Side Access Panel. Includes 13 to 15Black, RH Side Access Panel. Includes 13 to 15
-
14517304015 RH Access Panel GrillRH Access Panel Grill
-
15517304016 RH Lower Acces GrillRH Lower Acces Grill
-
16517304311 InsulatorInsulator
-
17517305987 InsulatorInsulator
-
18517304839 Black, LH Side Access Panel. Includes 18 to 19Black, LH Side Access Panel. Includes 18 to 19
-
19517303893 LH Access Panel GrillLH Access Panel Grill
-
20517304313 InsulatorInsulator
-
21517305311 InsulatorInsulator
-
22502007312 Grill plateGrill plate
-
23414644300 DartDart
-
24517304272 Indicator SupportIndicator Support
-
25517304314 InsulatorInsulator
-
26517304315 InsulatorInsulator
-
27517304316 InsulatorInsulator
-
28517304319 InsulatorInsulator
-
29517306054 Windshield Ass'y. Includes 29 to 31Windshield Ass'y. Includes 29 to 31
-
31732610072 Push NutPush Nut
-
32517303756 GrommetGrommet
-
33517304744 ButtonButton
-
34517306970 Black, RH Side PanelBlack, RH Side Panel
-
35517306504 Aluminium FoilAluminium Foil
-
36517306505 Aluminium FoilAluminium Foil
-
37517303890 RH FoamRH Foam
-
38517304310 RH Rear FoamRH Rear Foam
-
39517306975 LH Side PanelLH Side Panel
-
40517303891 LH FoamLH Foam
-
41517304309 LH Rear FoamLH Rear Foam
-
42517304572 Latch-PanelLatch-Panel
-
43293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
44517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
45517304296 Quarter-Turn HandleQuarter-Turn Handle
-
46517304538 Locking PlateLocking Plate
-
47517304497 Side Panel SupportSide Panel Support
-
48293150211 RivetRivet
-
49517304075 End Piece LatchEnd Piece Latch
-
50517306057 Latch-PanelLatch-Panel
-
51517304194 RH Headlamp Ass'y. Includes 51 to 54RH Headlamp Ass'y. Includes 51 to 54
-
52515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
53515176498 CapCap
-
54515176499 CoverCover
-
55250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
56250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
57517304195 LH Headlamp Ass'y. Includes 57 to 60LH Headlamp Ass'y. Includes 57 to 60
-
58515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
59515176498 CapCap
-
60515176499 CoverCover
-
61250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
62250000957 Extruded Panel Nut M6Extruded Panel Nut M6
