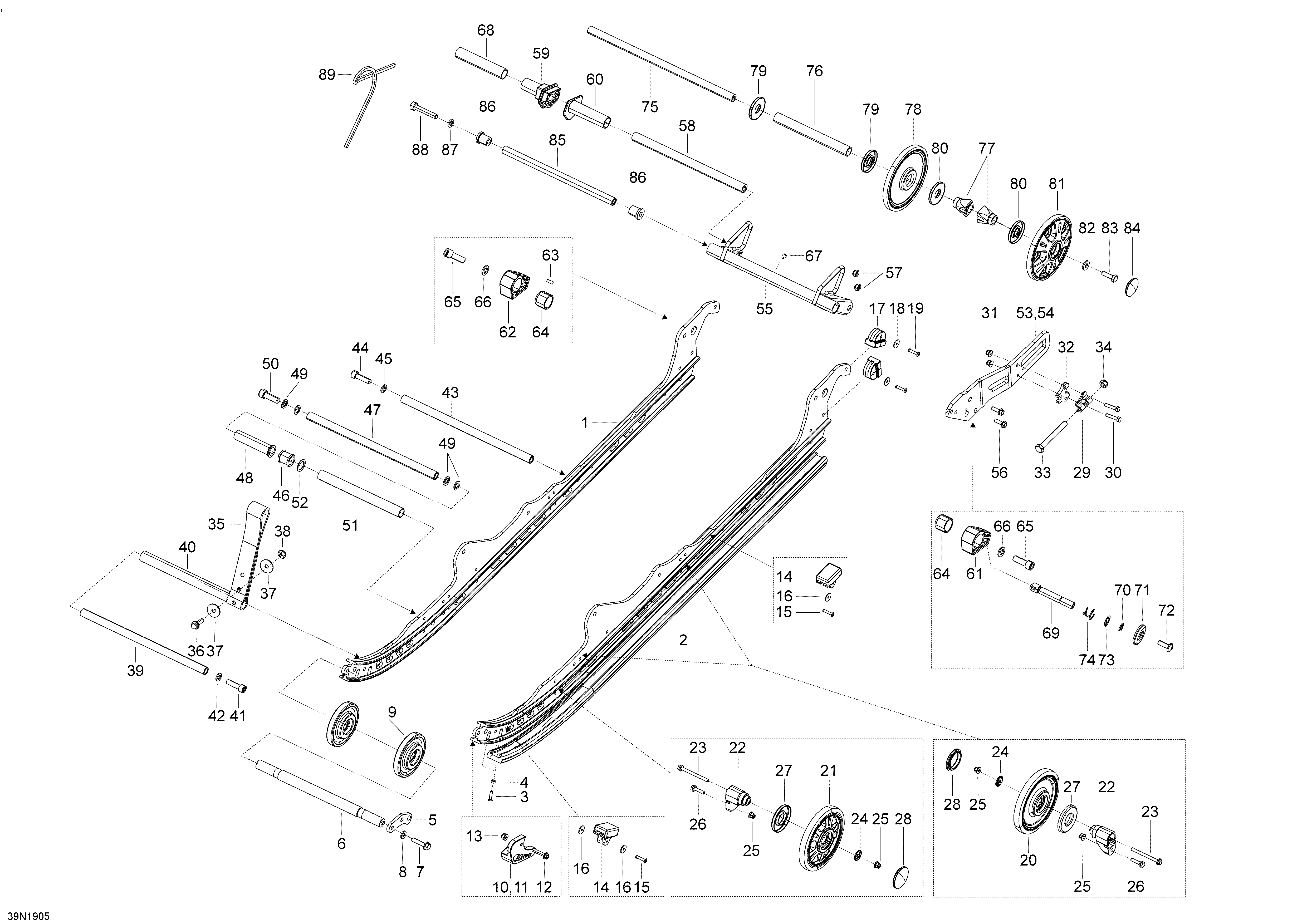

08- Rear Suspension - Lower Section - SWT для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
1503194188 RunnerRunner
-
2503192618 Black Slider, 154''Black Slider, 154''
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192612 PlatePlate
-
6503193053 Front Wheel ShaftFront Wheel Shaft
-
7207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
8503189157 WasherWasher
-
9503192611 Black Wheel Ass'y, 100 mm. Includes 9 to 9aBlack Wheel Ass'y, 100 mm. Includes 9 to 9a
-
9a503190396 Ball Bearing. Not ShownBall Bearing. Not Shown
-
10503192610 RH ProtectorRH Protector
-
11503192609 LH ProtectorLH Protector
-
12207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14503190576 Rubber StopperRubber Stopper
-
15293150224 Rivet Pop 3/16Rivet Pop 3/16
-
16503191273 WasherWasher
-
17503191291 Rubber StopperRubber Stopper
-
18293150224 Rivet Pop 3/16Rivet Pop 3/16
-
19503191273 WasherWasher
-
20503191311 Black, Wheel Ass'y 147 mmBlack, Wheel Ass'y 147 mm
-
21503191152 Black, Wheel Ass'y 147 mmBlack, Wheel Ass'y 147 mm
-
22503193894 Casted SupportCasted Support
-
23207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
24503191820 Wheel Cup M6Wheel Cup M6
-
25233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
27503190434 Labyrinth SealLabyrinth Seal
-
28503192771 Black, Wheel CapBlack, Wheel Cap
-
29503192583 TensionerTensioner
-
30207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
31233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32503193250 SpacerSpacer
-
33230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
34233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
35503192360 Stopper StrapStopper Strap
-
36207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
37224081301 Flat WasherFlat Washer
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
39503192623 Axle StrapAxle Strap
-
40503192679 SpacerSpacer
-
41205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
42503189564 WasherWasher
-
43503191418 Axle StrapAxle Strap
-
44205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
45503189564 WasherWasher
-
47503193967 ShaftShaft
-
48503191259 Center BushingCenter Bushing
-
49503189276 WasherWasher
-
50205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
51503191421 SpacerSpacer
-
52503189273 WasherWasher
-
53503192893 Runner Pivot RHRunner Pivot RH
-
54503192892 Runner Pivot LHRunner Pivot LH
-
55503191414 Welded PivotWelded Pivot
-
57232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100503193086 Cam Shaft. Not ShownCam Shaft. Not Shown
-
59503191190 RH Spring CamRH Spring Cam
-
60503191668 LH Spring CamLH Spring Cam
-
61503193084 LH BlockLH Block
-
62503193085 RH BlockRH Block
-
64503189488 Block GuideBlock Guide
-
65205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
66503189148 WasherWasher
-
67408200700 Grease FittingGrease Fitting
-
75503191408 Rear AxleRear Axle
-
76503193051 SpacerSpacer
-
77503190428 Rear Wheel SpacerRear Wheel Spacer
-
78503192140 Black, Wheel Ass'y, 165 mm. Includes 78 to 78bBlack, Wheel Ass'y, 165 mm. Includes 78 to 78b
-
78a503190396 Ball Bearing. Not ShownBall Bearing. Not Shown
-
78b415129371 Retaining Ring. Not ShownRetaining Ring. Not Shown
-
79503190682 Labyrinth SealLabyrinth Seal
-
80503190434 Labyrinth SealLabyrinth Seal
-
81503192128 Deep Black, Wheel Ass'y, 165 mmDeep Black, Wheel Ass'y, 165 mm
-
82503190439 WasherWasher
-
83250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
84503192771 Black, Wheel CapBlack, Wheel Cap
-
85503191390 Lower ShaftLower Shaft
-
86503189324 BushingBushing
-
87503192496 WasherWasher
-
88250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
89503194624 SpringSpring
