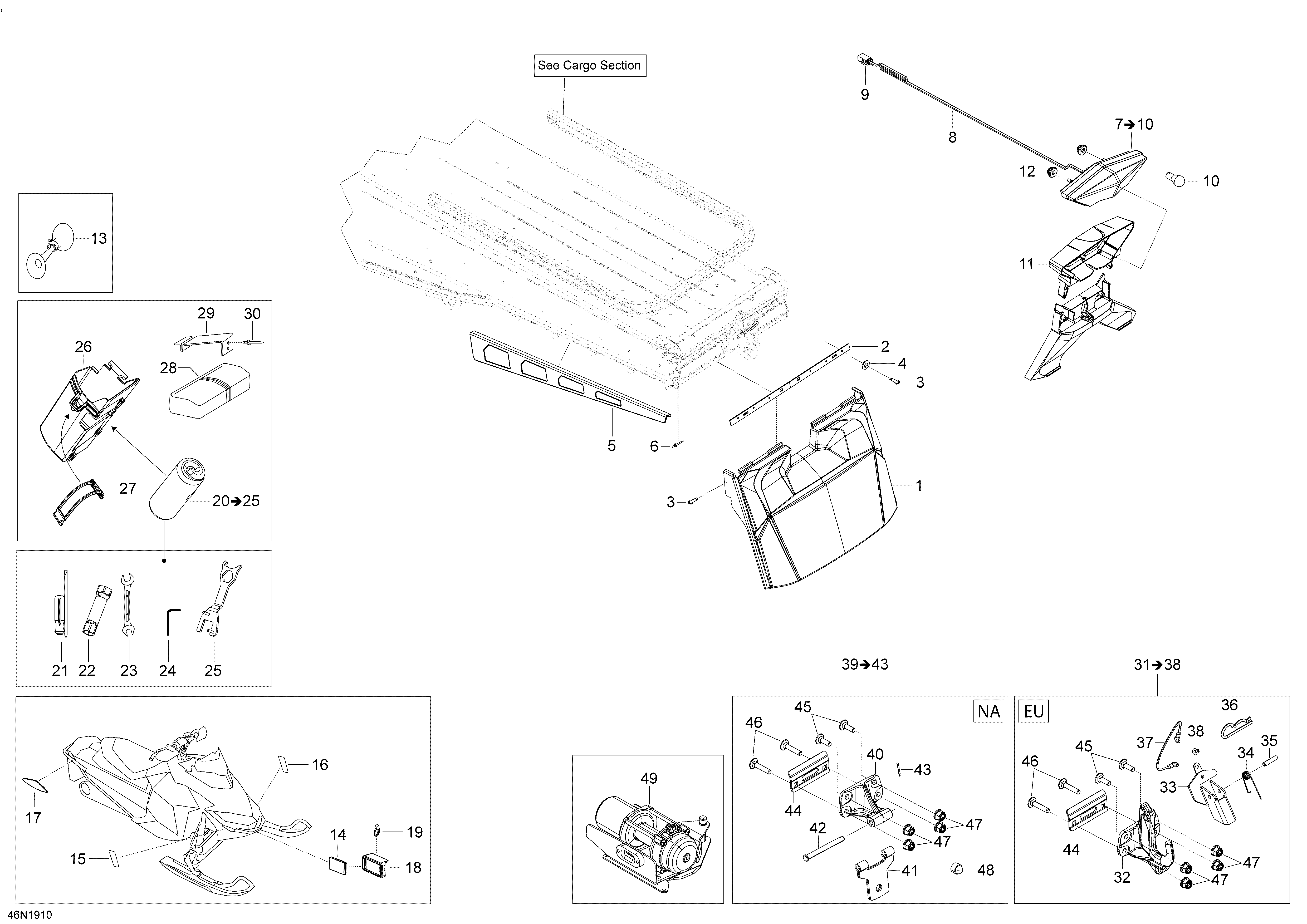

09- Utilities - 900 ACE - North America для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
1520001406 Snow Guard. Except Package SWTSnow Guard. Except Package SWT
-
1520001409 Black, Snow Guard long. Package SWTBlack, Snow Guard long. Package SWT
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet HucklokRivet Hucklok
-
7520000848 Rear Light. Includes 7 to 10Rear Light. Includes 7 to 10
-
8.1520000677 Wiring Harness Ass'y. Not ShownWiring Harness Ass'y. Not Shown
-
10520000758 BulbBulb
-
11511000764 Rear Light CoverRear Light Cover
-
12705003666 Rubber GrommetRubber Grommet
-
15520001600 Yellow RH Reflector. Except Package SEYellow RH Reflector. Except Package SE
-
16520001601 Yellow LH Reflector. Except Package SEYellow LH Reflector. Except Package SE
-
17705011222 Amber Reflector. Package SEAmber Reflector. Package SE
-
17520001744 LH Reflector Mount. Package SELH Reflector Mount. Package SE
-
17520001746 RH Reflector Mount. Package SERH Reflector Mount. Package SE
-
17705003412 Lateral Reflector, RedLateral Reflector, Red
-
20529000078 Tool KitTool Kit
-
26520000894 Tool Kit RackTool Kit Rack
-
27520000528 LatchLatch
-
39520001398 Hitch Ass'y. Includes 33 to 37Hitch Ass'y. Includes 33 to 37
-
4341031 Cotter PinCotter Pin
-
44520000727 PlatePlate
-
45207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
46207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
47233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4828056 CoverCover
-
60520001766 Support Tape. Not ShownSupport Tape. Not Shown
-
70619900950 Guide Ski-Doo Expedition Series EN. Not ShownGuide Ski-Doo Expedition Series EN. Not Shown
-
80205082044 Socket Head Screw M8 X 20. Package SE. Not ShownSocket Head Screw M8 X 20. Package SE. Not Shown
