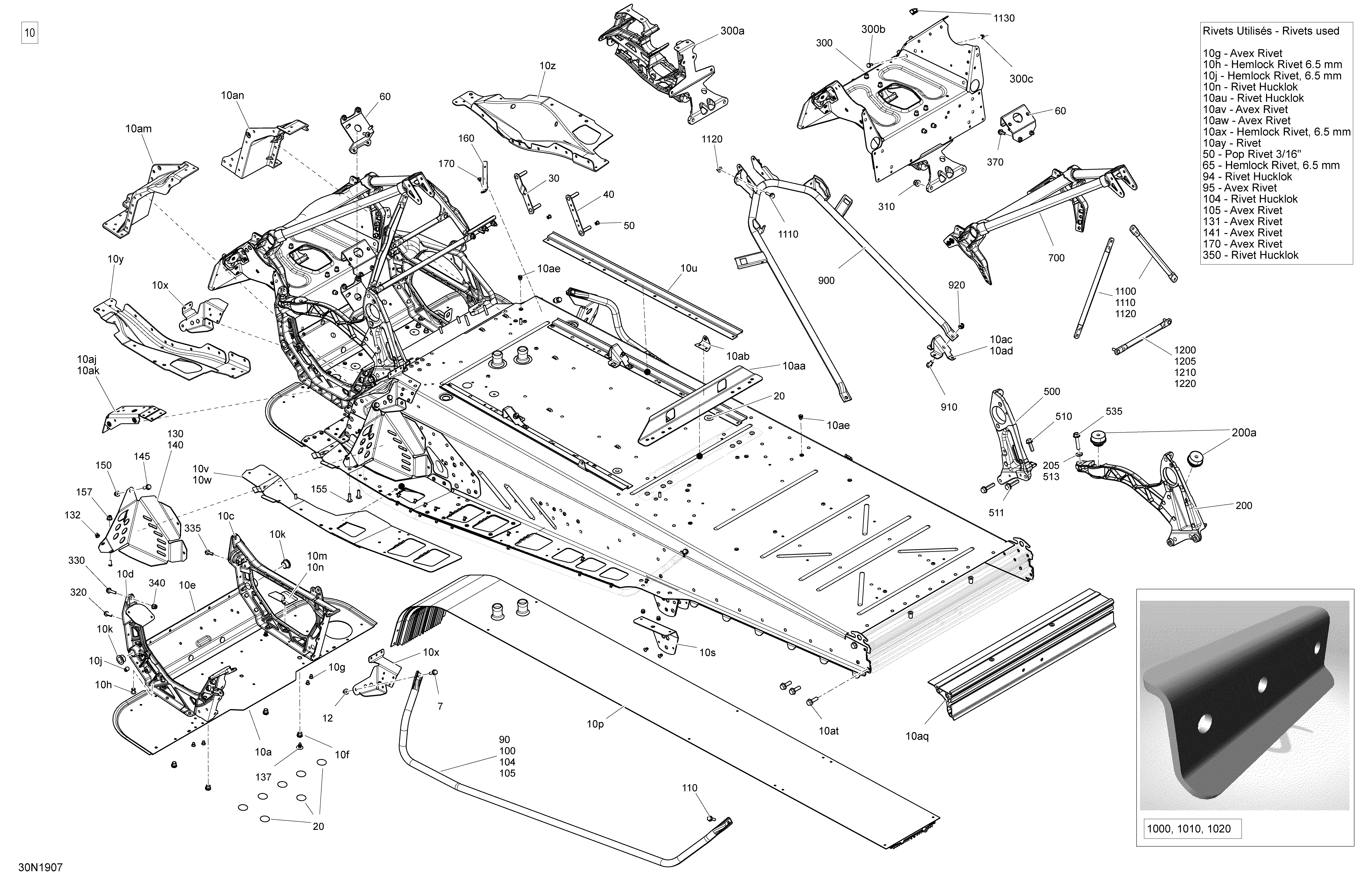

09- Frame - 900 ACE для BRP Ski-Doo 006 - EXPEDITION LE-SE-SWT 900 ACE - 2019
-
№АртикулНазвание
-
10518329696 Black, Frame. Packages LE & SE. Includes 10 to 10ayBlack, Frame. Packages LE & SE. Includes 10 to 10ay
-
10518329721 Black, Frame. Package SWT. Includes 10 to 10ayBlack, Frame. Package SWT. Includes 10 to 10ay
-
10a518329825 Module E. Includes 10a to 10nModule E. Includes 10a to 10n
-
10c518326328 RH Side MemberRH Side Member
-
10d518326330 LH Side MemberLH Side Member
-
10e518326198 Front MemberFront Member
-
10f605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
10g390909100 Avex RivetAvex Rivet
-
10h293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
10j293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10k505072690 Leg BushingLeg Bushing
-
10m518327983 Muffler SupportMuffler Support
-
10n293150163 Rivet HucklokRivet Hucklok
-
10p509000976 Tunnel RadiatorTunnel Radiator
-
10s518329083 Rear Arm BracketRear Arm Bracket
-
10u518326107 Fastening railFastening rail
-
10v518328821 Footrest LH. Packages LE & SEFootrest LH. Packages LE & SE
-
10v518328852 Footrest LH. Package SWTFootrest LH. Package SWT
-
10w518328822 Footrest RH. Packages LE & SEFootrest RH. Packages LE & SE
-
10w518328853 Footrest RH. Package SWTFootrest RH. Package SWT
-
10x605355235 Fastening Bracket. Packages LE & SEFastening Bracket. Packages LE & SE
-
10x518327884 Fastening Bracket. Package SWTFastening Bracket. Package SWT
-
10y518328016 LH Drive Axle Cover. Packages LE & SELH Drive Axle Cover. Packages LE & SE
-
10y518328014 LH Drive Axle Cover. Package SWTLH Drive Axle Cover. Package SWT
-
10z518328017 RH Drive Axle Cover. Packages LE & SERH Drive Axle Cover. Packages LE & SE
-
10z518328015 RH Drive Axle Cover. Package SWTRH Drive Axle Cover. Package SWT
-
10aa518325986 Battery support plate. Packages LE & SEBattery support plate. Packages LE & SE
-
10aa518327003 Battery Support. Package SWTBattery Support. Package SWT
-
10ab518329164 Seat Box BracketSeat Box Bracket
-
10ac518329109 LH Support Tube BracketLH Support Tube Bracket
-
10ad518329110 RH Support Tube BracketRH Support Tube Bracket
-
10ae605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10aj518326430 Clinch Nut plate. Packages LE & SEClinch Nut plate. Packages LE & SE
-
10aj518328096 Clinch Nut Plate. Package SWTClinch Nut Plate. Package SWT
-
10ak250100065 Clinching Nut Hexert M8Clinching Nut Hexert M8
-
10am518325524 LH Frame Corner. Packages LE & SELH Frame Corner. Packages LE & SE
-
10am518325643 Frame Corner LH. Package SWTFrame Corner LH. Package SWT
-
10an518328024 RH Frame Corner. Packages LE & SERH Frame Corner. Packages LE & SE
-
10an518325644 Frame Corner RH. Package SWTFrame Corner RH. Package SWT
-
10aq518328748 Rear Profile. Packages LE & SERear Profile. Packages LE & SE
-
10aq518328749 Rear Profile. Package SWTRear Profile. Package SWT
-
10at207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
10au293150163 Rivet HucklokRivet Hucklok
-
10av390909100 Avex RivetAvex Rivet
-
10aw390909200 Avex RivetAvex Rivet
-
10ax293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10ay293150183 RivetRivet
-
20518325560 Adhesive PatchAdhesive Patch
-
30518326123 Gearbox Front PlateGearbox Front Plate
-
40518326124 Gearbox Rear PlateGearbox Rear Plate
-
50390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60518326178 Engine SupportEngine Support
-
65293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
90518326963 Footboard Support Tube, LH. Packages LE & SEFootboard Support Tube, LH. Packages LE & SE
-
90518327595 Footboard Support Tube LH. Package SWTFootboard Support Tube LH. Package SWT
-
94293150163 Rivet HucklokRivet Hucklok
-
95390909100 Avex RivetAvex Rivet
-
100518326964 Footboard Support Tube, RH. Packages LE & SEFootboard Support Tube, RH. Packages LE & SE
-
100518327596 Footboard Support Tube RH. Package SWTFootboard Support Tube RH. Package SWT
-
104293150163 Rivet HucklokRivet Hucklok
-
105390909100 Avex RivetAvex Rivet
-
110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
130518327374 Black LH Toe Hook. Package SEBlack LH Toe Hook. Package SE
-
130518327375 Toe hold L.H.. Package LEToe hold L.H.. Package LE
-
130518328569 Black, LH Toe Hook. Package SWTBlack, LH Toe Hook. Package SWT
-
131390909200 Avex Rivet. Packages LE & SEAvex Rivet. Packages LE & SE
-
132605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
137414644300 DartDart
-
140518327376 Black RH Toe Hook. Packages LE & SEBlack RH Toe Hook. Packages LE & SE
-
141390909200 Avex RivetAvex Rivet
-
145207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
155250000717 Torx Head Screw M6 X 16. Packages LE & SETorx Head Screw M6 X 16. Packages LE & SE
-
157233261414 Hex. Flanged Elastic Nut M6 x 1.0. Package SWTHex. Flanged Elastic Nut M6 x 1.0. Package SWT
-
160514054846 Spring BracketSpring Bracket
-
170390909200 Avex RivetAvex Rivet
-
180390909200 Avex RivetAvex Rivet
-
200518327535 Brace Ass'y. Includes 200 to 200aBrace Ass'y. Includes 200 to 200a
-
200a512060295 Rubber MountRubber Mount
-
205234281474 Conical Spring Washer M8Conical Spring Washer M8
-
300518328395 Module S. Package SE. Includes 300 to 300cModule S. Package SE. Includes 300 to 300c
-
300518328391 Cross Member. Includes 300 to 300cCross Member. Includes 300 to 300c
-
300a518327487 Front Suspension SupportFront Suspension Support
-
300b207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
300c232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
310233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
320210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
335207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
340233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
350293150163 Rivet HucklokRivet Hucklok
-
370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
500518328434 Pulley SupportPulley Support
-
510207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
512207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
535207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
700518326975 Front MemberFront Member
-
900518329105 Upper Support TubeUpper Support Tube
-
910207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
920232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1000518330343 Extension Plate. Package SWTExtension Plate. Package SWT
-
1010207662544 Hex. Flanged Screw M6 X 25. Package SWTHex. Flanged Screw M6 X 25. Package SWT
-
1020233261414 Hex. Flanged Elastic Nut M6 x 1.0. Package SWTHex. Flanged Elastic Nut M6 x 1.0. Package SWT
-
1100518326848 Upper Column SupportUpper Column Support
-
1110207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
1120233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1130414227300 ClipClip
-
1200518326355 Center Column SupportCenter Column Support
-
1205233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1210207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
