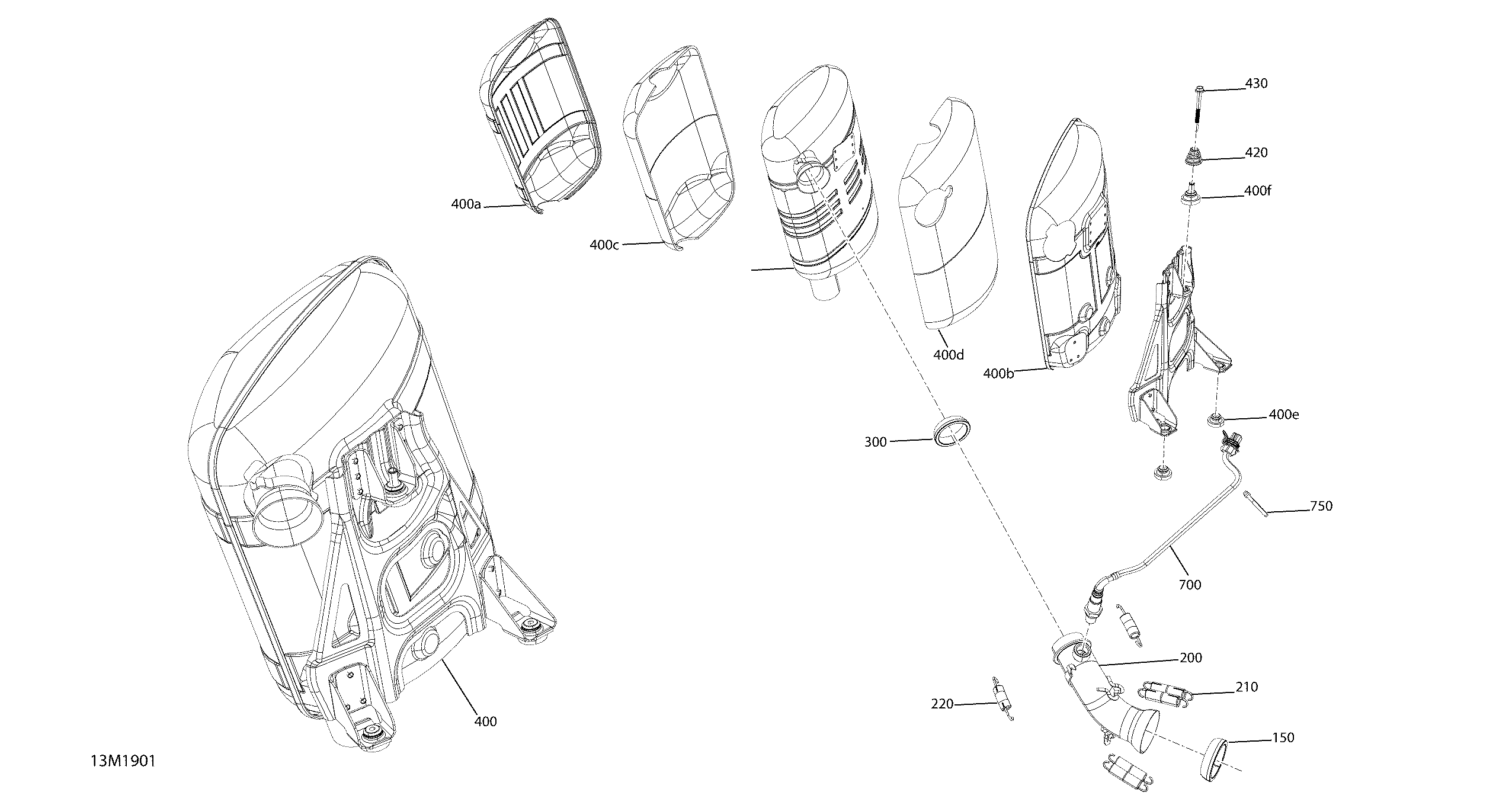

01- Exhaust REV GEN4 - 900 ACE Turbo для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
150514054174 Exhaust GasketExhaust Gasket
-
200514055466 PipePipe
-
210707601834 SpringSpring
-
220514055198 SpringSpring
-
300514054174 Exhaust GasketExhaust Gasket
-
400514055435 Muffler Ass'y. Includes 400 to 400fMuffler Ass'y. Includes 400 to 400f
-
400a514055793 RH DeflectorRH Deflector
-
400b514055482 LH DeflectorLH Deflector
-
400c514055711 RH WoolRH Wool
-
400d514055712 WoolWool
-
400e514055203 StopperStopper
-
400f514055422 Stopper Ass'yStopper Ass'y
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
-
700707600872 Oxygen SensorOxygen Sensor
-
750414115200 Tie-Rap 180 mmTie-Rap 180 mm
