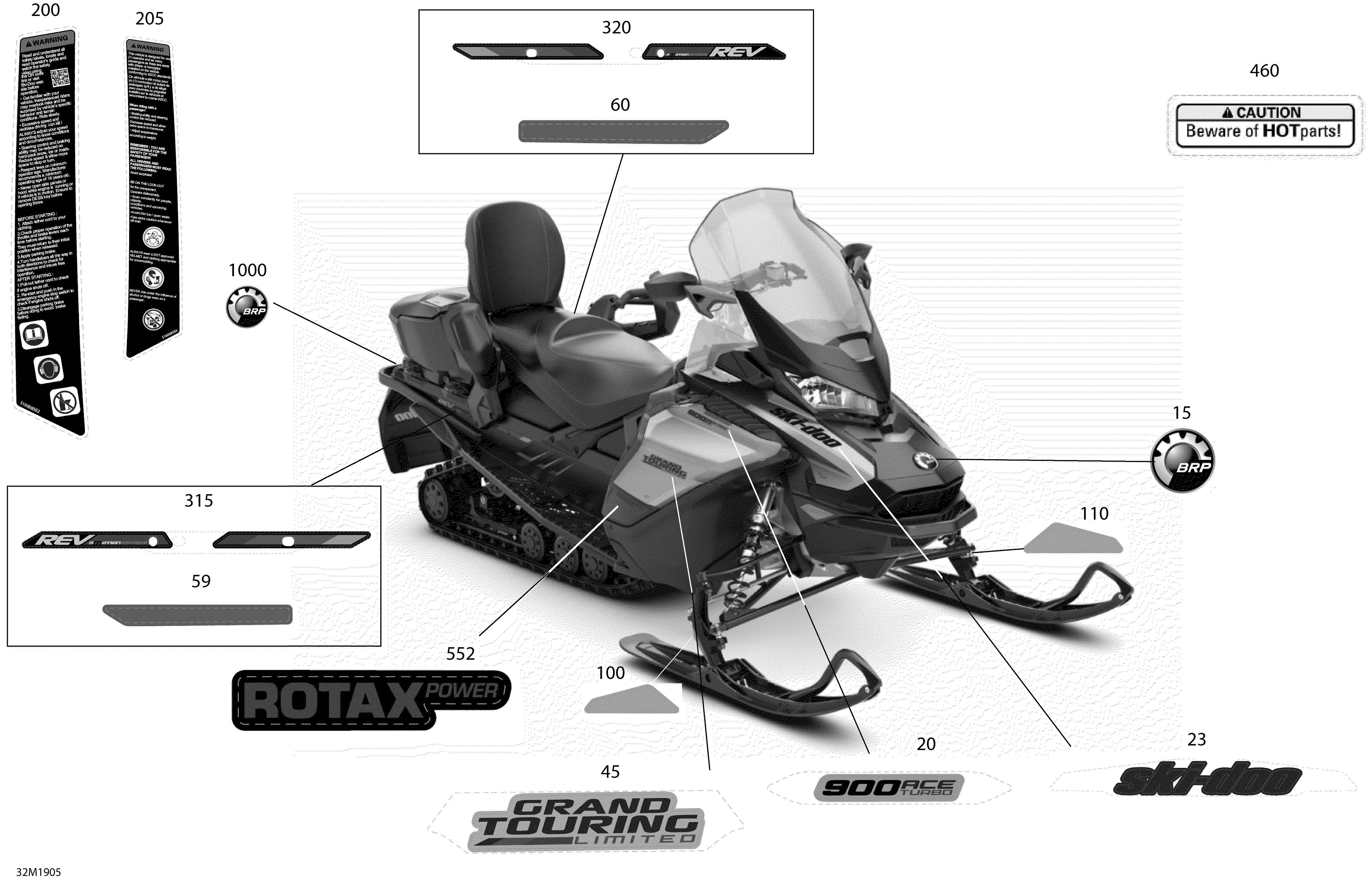

09- Decals - LTD для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
15516008738 Logo BRP, 48mmLogo BRP, 48mm
-
20516009139 Decal '' 900 Ace Turbo ''Decal '' 900 Ace Turbo ''
-
23516009080 Decal '' Ski-Doo ''Decal '' Ski-Doo ''
-
45516008629 Panel Decal '' Grand Touring Limited ''Panel Decal '' Grand Touring Limited ''
-
59516009130 RH Frame Member DecalRH Frame Member Decal
-
60516009129 LH Frame Member DecalLH Frame Member Decal
-
100516008948 RH Ski Leg DecalRH Ski Leg Decal
-
110516008947 LH Ski Leg DecalLH Ski Leg Decal
-
200516008582 Warning Decal SecurityWarning Decal Security
-
205516008583 Warning Decal SecurityWarning Decal Security
-
315516008719 RH Tunnel Decal '' Rev RMotion Air Ride ''RH Tunnel Decal '' Rev RMotion Air Ride ''
-
320516008718 LH Tunnel Decal '' RMotion Air Ride Rev ''LH Tunnel Decal '' RMotion Air Ride Rev ''
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
552516009087 '' Rotax Power '' Decal'' Rotax Power '' Decal
-
1000516006224 BRP Logo, 20 mmBRP Logo, 20 mm
