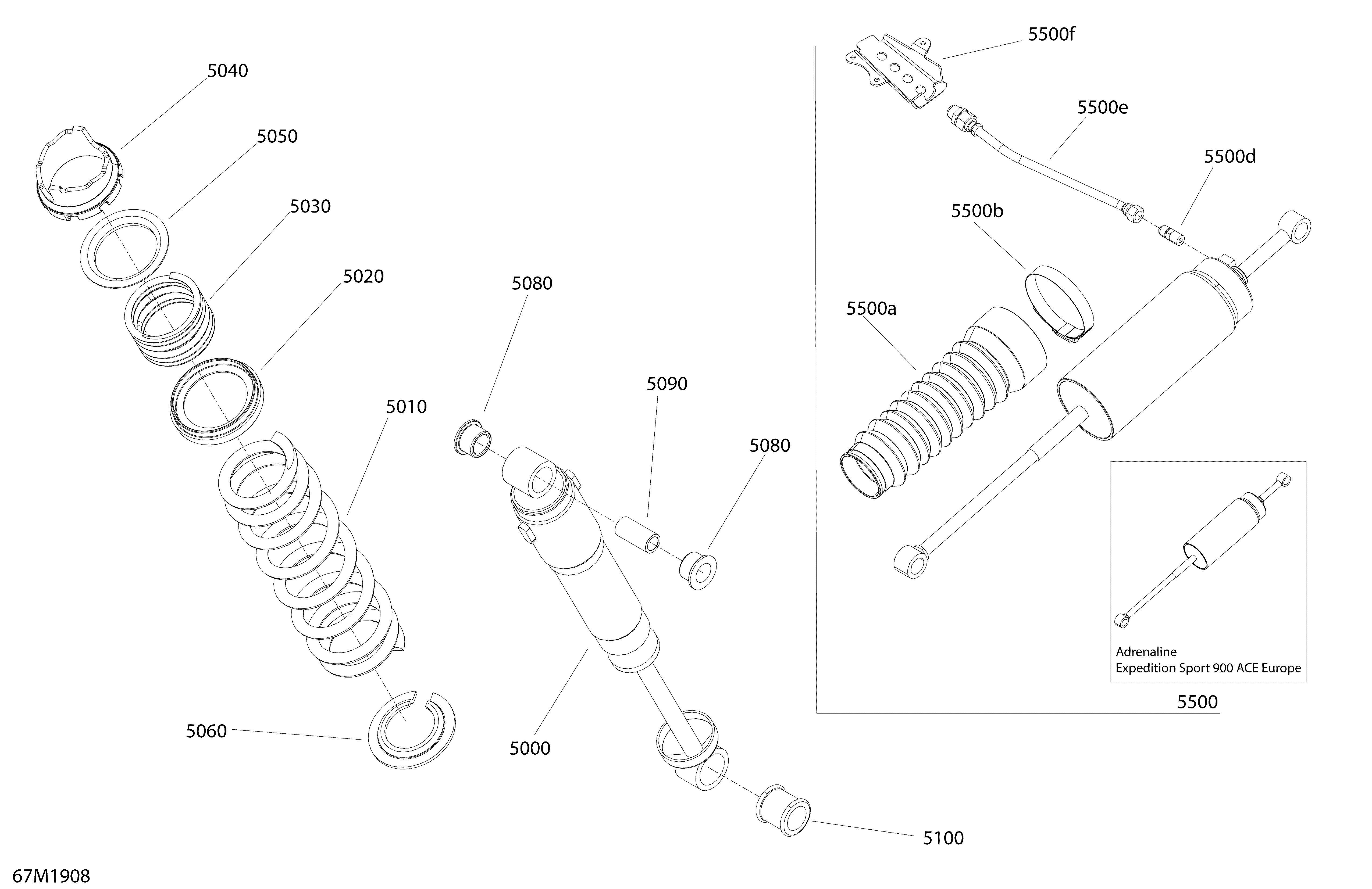

08- Rear Shocks - LTD для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
5000503193909 Central ShockCentral Shock
-
5010503193837 Black, Spring (Short)Black, Spring (Short)
-
5020503191281 Spring SpacerSpring Spacer
-
5030503193160 Deep Black, SpringDeep Black, Spring
-
5040505073625 Adjustment CamAdjustment Cam
-
5050503191872 Spring GuideSpring Guide
-
5060503194270 Spring StopperSpring Stopper
-
5080503189117 Bushing UrethaneBushing Urethane
-
5090503189282 BushingBushing
-
5100503189271 BushingBushing
-
5150207005044 Hex. Screw M10 X 1.5 X 50. Not ShownHex. Screw M10 X 1.5 X 50. Not Shown
-
5160233601466 Elastic Locking Nut M10. Not ShownElastic Locking Nut M10. Not Shown
-
5500503194926 Rear Shock. Includes 5500 to 5500gRear Shock. Includes 5500 to 5500g
-
5500a570278300 Protection BootProtection Boot
-
5500b293650064 Tridon ClampTridon Clamp
-
5500d503191939 Male Pneumatic ConnectorMale Pneumatic Connector
-
5500e503192652 Air Hose Ass'yAir Hose Ass'y
-
5500f503194925 BracketBracket
