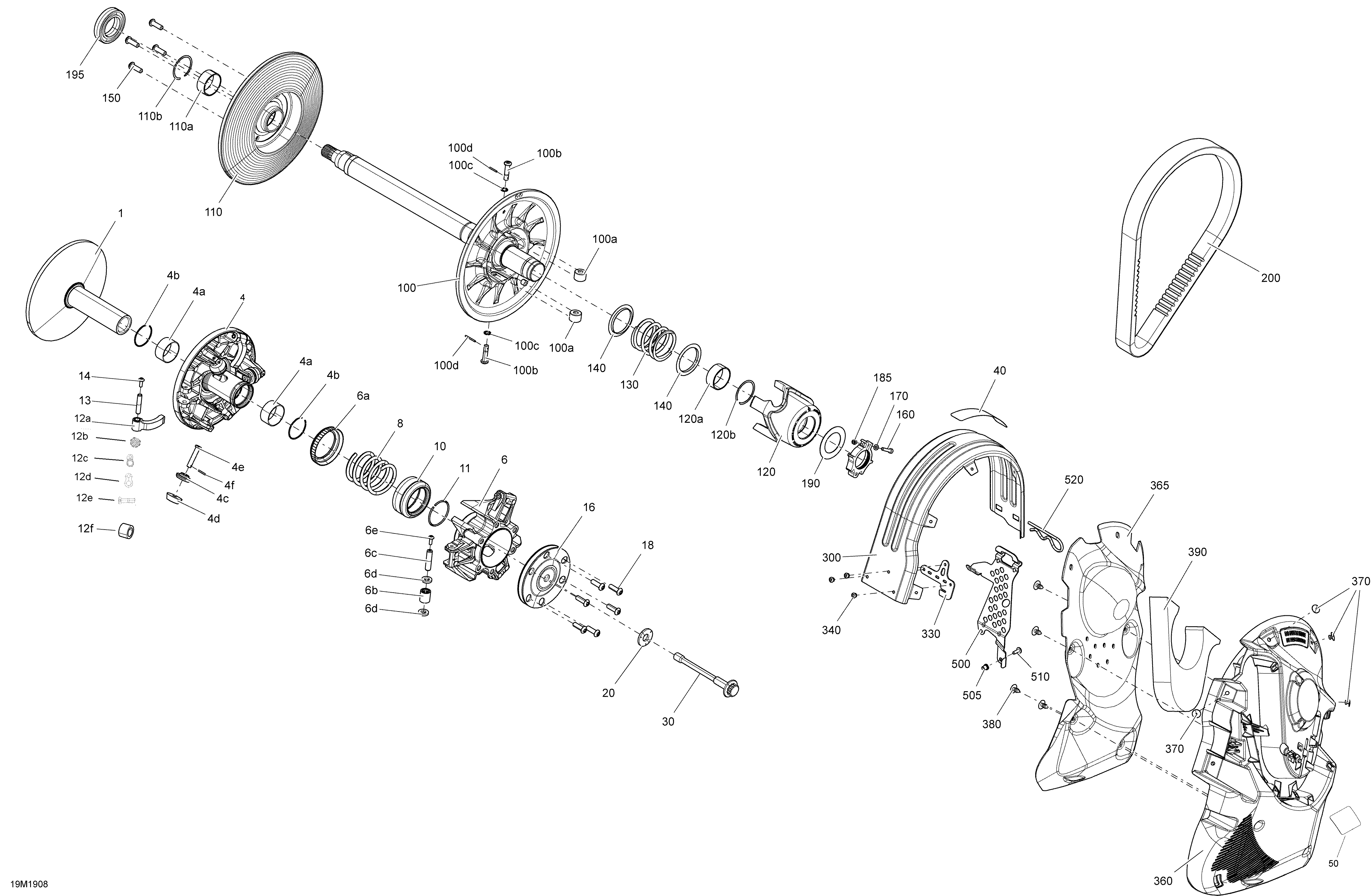

05- Pulley для BRP Ski-Doo 003 - MXZ 850 E-TEC - 2019
-
№АртикулНазвание
-
1417224278 Fixed Flange Ass'yFixed Flange Ass'y
-
4417224457 Sheave Drive Pulley Sliding Ass'y. Includes 4 to 4fSheave Drive Pulley Sliding Ass'y. Includes 4 to 4f
-
4a293250389 BushingBushing
-
4b293370117 CirclipCirclip
-
4c417224153 Back Torque RollerBack Torque Roller
-
4d417224458 Roller Pulley ExtRoller Pulley Ext
-
4e417224277 Axle - 8mmAxle - 8mm
-
4f250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
6417224389 Spider Ass'y. Includes 6 to 6eSpider Ass'y. Includes 6 to 6e
-
6a417224002 Spring GuideSpring Guide
-
6b417223808 Roller AssyRoller Assy
-
6c417223989 Axle - 10mmAxle - 10mm
-
6D417224009 Washer-ThrustWasher-Thrust
-
6e250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
8417224172 Clutch SpringClutch Spring
-
10417224003 Seat SpringSeat Spring
-
11293370116 CirclipCirclip
-
12a417224227 Ramp 968Ramp 968
-
12b417224113 Cam MoldedCam Molded
-
12c417224086 Lever-RightLever-Right
-
12d417224114 Lever LeftLever Left
-
12e417224221 Pivot 33mmPivot 33mm
-
13417223631 Axle - 8mmAxle - 8mm
-
14250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
16417224201 Drive CushionDrive Cushion
-
18250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
50516009265 Decal Ramp ClickerDecal Ramp Clicker
-
100417127595 Fixed Flange Ass'y. Includes 100 to 100dFixed Flange Ass'y. Includes 100 to 100d
-
100a417127016 RollerRoller
-
100b417127294 Pivot StudPivot Stud
-
100c250200009 Lock Washer 8 mmLock Washer 8 mm
-
100d250400070 Spring PinSpring Pin
-
110417127317 Sliding Flange Ass'y. Includes 110 to 110bSliding Flange Ass'y. Includes 110 to 110b
-
110a417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
110b293370049 CirclipCirclip
-
120417127325 Cam Ass'y. Includes 120 to 120cCam Ass'y. Includes 120 to 120c
-
120a417127318 Bushing ID 41mm OD 45mm X 19mm LBushing ID 41mm OD 45mm X 19mm L
-
120b293370049 CirclipCirclip
-
130417127137 Green SpringGreen Spring
-
140417127116 Swivel AbutmentSwivel Abutment
-
150250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
155415129604 Calibration Ass'yCalibration Ass'y
-
160250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
170234051410 Flat Washer M5Flat Washer M5
-
185232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
190417127155 WasherWasher
-
195504152574 Ball BearingBall Bearing
-
200417300571 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300561 Front, Retaining HookFront, Retaining Hook
-
340390909200 Avex RivetAvex Rivet
-
360a417300553 CVT Duct CoolingCVT Duct Cooling
-
360b414575600 Hair PinHair Pin
-
365417300542 Acoustic PannelAcoustic Pannel
-
370293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
380414644300 Black, DartBlack, Dart
-
500417300514 Support GuardSupport Guard
-
505233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
510250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
520114045200 Hair PinHair Pin
