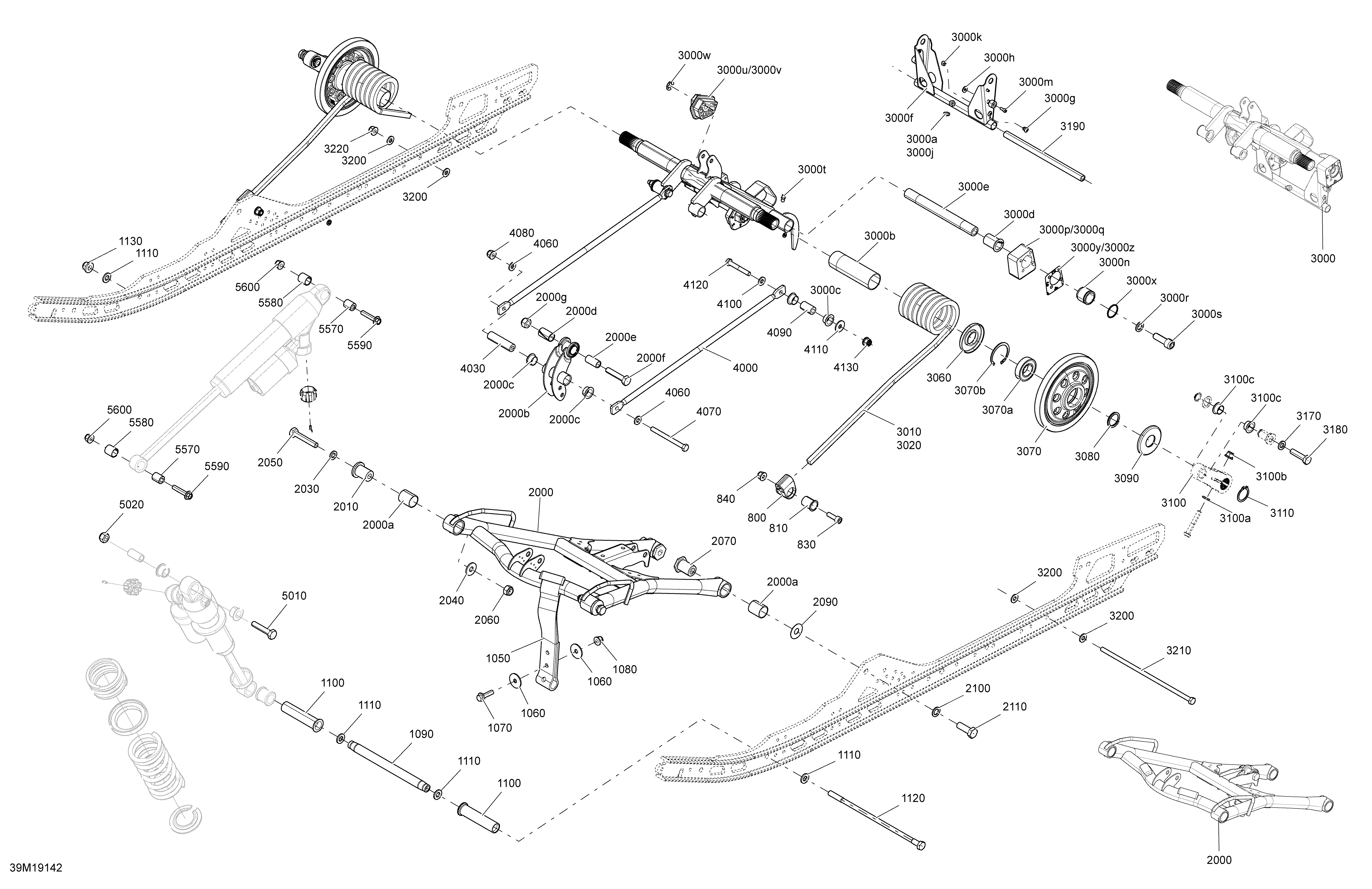

08- Rear Suspension - Upper Section для BRP Ski-Doo 003 - MXZ 850 E-TEC - 2019
-
№АртикулНазвание
-
10a503193901 Black, Runner 128''. Deep Black. Includes 10a to 10bBlack, Runner 128''. Deep Black. Includes 10a to 10b
-
10a503194156 Yellow, Runner 128''. Sunburst Yellow. Includes 10a to 10bYellow, Runner 128''. Sunburst Yellow. Includes 10a to 10b
-
10b503193902 Bare, Runner 128''Bare, Runner 128''
-
10c503193962 Slider 128''Slider 128''
-
10d208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
10e232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20516007816 Runner DecalRunner Decal
-
200503192530 Slide ProtectorSlide Protector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
240233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310503193717 Stopper Rubber Ass'y. Includes 310 to 310aStopper Rubber Ass'y. Includes 310 to 310a
-
310a572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
320503192750 Rubber StopperRubber Stopper
-
325503191273 WasherWasher
-
326293150224 Rivet Pop 3/16Rivet Pop 3/16
-
440503191316 Black - Wheel Ass'y 141 mm. Package XRS. Includes 440 to 440bBlack - Wheel Ass'y 141 mm. Package XRS. Includes 440 to 440b
-
440503193477 Black - Wheel Ass'y 141 mm. Except Package XRS. Includes 440 to 440bBlack - Wheel Ass'y 141 mm. Except Package XRS. Includes 440 to 440b
-
440a503190396 Ball BearingBall Bearing
-
440b415129371 Retaining RingRetaining Ring
-
441503193894 Casted SupportCasted Support
-
442503190434 Labyrinth SealLabyrinth Seal
-
443503191820 Wheel Cup M6Wheel Cup M6
-
444250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
445233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
446250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
447233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
448503192771 Black, Wheel CapBlack, Wheel Cap
-
450503191316 Black - Wheel Ass'y 141 mm. Package XRS. Includes 450 to 450bBlack - Wheel Ass'y 141 mm. Package XRS. Includes 450 to 450b
-
450503193477 Black - Wheel Ass'y 141 mm. Except Package XRS. Includes 450 to 450bBlack - Wheel Ass'y 141 mm. Except Package XRS. Includes 450 to 450b
-
450a503190396 Ball BearingBall Bearing
-
450b415129371 Retaining RingRetaining Ring
-
451503193894 Casted SupportCasted Support
-
452503190434 Labyrinth SealLabyrinth Seal
-
453503191820 Wheel Cup M6Wheel Cup M6
-
454250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
455233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
456250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
457233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
458503192771 Black, Wheel CapBlack, Wheel Cap
-
460503192794 Black - Wheel Ass'y 141 mm. Includes 460 to 460bBlack - Wheel Ass'y 141 mm. Includes 460 to 460b
-
460a503190396 Ball BearingBall Bearing
-
460b415129371 Retaining RingRetaining Ring
-
461503193894 Casted SupportCasted Support
-
462503190434 Labyrinth SealLabyrinth Seal
-
463503191820 Wheel Cup M6Wheel Cup M6
-
464250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
465233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
466250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
467233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
468503192771 Black, Wheel CapBlack, Wheel Cap
-
600503192766 Black - Wheel Ass'y 180 mm. Includes 600 to 600aBlack - Wheel Ass'y 180 mm. Includes 600 to 600a
-
600a503190396 Ball BearingBall Bearing
-
610503190429 Rear AxleRear Axle
-
620503190430 SpacerSpacer
-
650503190432 WasherWasher
-
660503190428 Rear Wheel SpacerRear Wheel Spacer
-
670503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670bBlack - Wheel Ass'y 180 mm. Includes 670 to 670b
-
670a503190396 Ball BearingBall Bearing
-
670b415129371 Retaining RingRetaining Ring
-
680503190682 Labyrinth SealLabyrinth Seal
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503191910 WasherWasher
-
720234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
730250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503192583 TensionerTensioner
-
910503193250 SpacerSpacer
-
920230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
930233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
940207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
950233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1000503191260 Axle StrapAxle Strap
-
1010503192678 SpacerSpacer
-
1020250200143 Flat WasherFlat Washer
-
1030205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1050503192759 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
1240503191260 Axle StrapAxle Strap
-
1250503192496 WasherWasher
-
1260205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
2000503194529 Front Arm Ass'yFront Arm Ass'y
-
2010503190698 AxleAxle
-
2030503192496 WasherWasher
-
2040503191926 WasherWasher
-
2050207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
2060233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000503193617 Rear Arm Ass'y. Without Quick Adjust System. Includes 3000 to 3000zRear Arm Ass'y. Without Quick Adjust System. Includes 3000 to 3000z
-
3000503193618 Rear Arm Ass'y. Quick Adjust System. Includes 3000 to 3000wRear Arm Ass'y. Quick Adjust System. Includes 3000 to 3000w
-
3000a232061404 Hexagonal Nut M6Hexagonal Nut M6
-
3000b503192767 BushingBushing
-
3000c503191555 Swivel BushingSwivel Bushing
-
3000d503191640 CushionCushion
-
3000e503192981 Lower ShaftLower Shaft
-
3000f503192823 Pivot Arm Ass'y. Includes 3000f to 3000mPivot Arm Ass'y. Includes 3000f to 3000m
-
3000g390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000h517225900 Flat WasherFlat Washer
-
3000j408200700 Grease FittingGrease Fitting
-
3000k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3000m205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3000n503192749 Guide BlockGuide Block
-
3000p503192918 LH Cam BlockLH Cam Block
-
3000q503192919 RH Cam BlockRH Cam Block
-
3000r503192491 WasherWasher
-
3000s205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000t408200700 Grease FittingGrease Fitting
-
3000u503191565 LH Cam Adjuster. Without Quick Adjust SystemLH Cam Adjuster. Without Quick Adjust System
-
3000u503192921 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
3000v503191566 RH Cam Adjuster. Without Quick Adjust SystemRH Cam Adjuster. Without Quick Adjust System
-
3000v516004900 LH Block Sticker Decal. Quick Adjust SystemLH Block Sticker Decal. Quick Adjust System
-
3000w293370013 E-Circlip. Without Quick Adjust SystemE-Circlip. Without Quick Adjust System
-
3000w516004901 RH Block Sticker Decal. Quick Adjust SystemRH Block Sticker Decal. Quick Adjust System
-
3000x503192921 O-Ring. Without Quick Adjust SystemO-Ring. Without Quick Adjust System
-
3000y516004900 LH Block Sticker Decal. Without Quick Adjust SystemLH Block Sticker Decal. Without Quick Adjust System
-
3000z516004901 RH Block Sticker Decal. Without Quick Adjust SystemRH Block Sticker Decal. Without Quick Adjust System
-
3010503192105 Black, LH Spring Square. SKU MXKNBlack, LH Spring Square. SKU MXKN
-
3010503193158 Black, LH Spring Square. Except SKU - MXKNBlack, LH Spring Square. Except SKU - MXKN
-
3020503192104 Black, RH Spring Square. SKU MXKNBlack, RH Spring Square. SKU MXKN
-
3020503193159 Black, RH Spring Square. Except SKU - MXKNBlack, RH Spring Square. Except SKU - MXKN
-
3060503190434 Labyrinth SealLabyrinth Seal
-
3070503192808 Black Wheel Ass'y 155 mm. Includes 3070 to 3070bBlack Wheel Ass'y 155 mm. Includes 3070 to 3070b
-
3080503189146 Axle SpringAxle Spring
-
3090503192592 Labyrinth RingLabyrinth Ring
-
3100503193069 Link Ass'y. Includes 3100 to 3100cLink Ass'y. Includes 3100 to 3100c
-
3100a503192494 WasherWasher
-
3100b233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100c503191555 Swivel BushingSwivel Bushing
-
3110293370080 Retaining RingRetaining Ring
-
3170503192496 WasherWasher
-
3180207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503193903 Rod LinkRod Link
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503192555 Axle BarAxle Bar
-
4100503192494 WasherWasher
-
4110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4120207085556 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
7000503193777 Hydraulic Adjuster Ass'y. Quick Adjust System. Includes 7000 to 7000wHydraulic Adjuster Ass'y. Quick Adjust System. Includes 7000 to 7000w
-
7000a503193490 Master Cylinder Ass'y. Quick Adjust System. Includes 7000a to 7000dMaster Cylinder Ass'y. Quick Adjust System. Includes 7000a to 7000d
-
7000b293300036 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000c250400014 Spring Pin. Quick Adjust SystemSpring Pin. Quick Adjust System
-
7000d516004917 Adjustment Decal. Quick Adjust SystemAdjustment Decal. Quick Adjust System
-
7000e503193778 Actuator Ass'y. Quick Adjust System. Includes 7000e to 7000rActuator Ass'y. Quick Adjust System. Includes 7000e to 7000r
-
7000f503192795 Cylinder. Quick Adjust SystemCylinder. Quick Adjust System
-
7000g503193779 Piston. Quick Adjust SystemPiston. Quick Adjust System
-
7000h503192633 Spring Bracket. Quick Adjust SystemSpring Bracket. Quick Adjust System
-
7000j503193485 Holder. Quick Adjust System. Includes 7000j to 7000mHolder. Quick Adjust System. Includes 7000j to 7000m
-
7000k293300068 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000m503192832 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000n293300039 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000p503192833 Wear Ring. Quick Adjust SystemWear Ring. Quick Adjust System
-
7000q503192834 Retaining Ring. Quick Adjust SystemRetaining Ring. Quick Adjust System
-
7000r503193014 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000s503193476 Connector Hose. Quick Adjust SystemConnector Hose. Quick Adjust System
-
7000t705601628 Copper Washer. Quick Adjust SystemCopper Washer. Quick Adjust System
-
7000u705600628 Banjo Bolt. Quick Adjust SystemBanjo Bolt. Quick Adjust System
-
7000v293250269 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7000w503192825 Seal. Quick Adjust SystemSeal. Quick Adjust System
-
7010503193056 Knob Adjuster Ass'y. Quick Adjust System. Includes 7010 to 7010aKnob Adjuster Ass'y. Quick Adjust System. Includes 7010 to 7010a
-
7010a516004751 Sticker Knob Adjuster. Quick Adjust SystemSticker Knob Adjuster. Quick Adjust System
-
7030205541660 Socket Screw M4 X 16 (Scotch Grip). Quick Adjust SystemSocket Screw M4 X 16 (Scotch Grip). Quick Adjust System
-
7100503194686 LH Support. Quick Adjust System. Includes 7100 to 7100aLH Support. Quick Adjust System. Includes 7100 to 7100a
-
7100a516006369 Decal. Quick Adjust SystemDecal. Quick Adjust System
-
7120503194524 LH Hose Protector. Quick Adjust SystemLH Hose Protector. Quick Adjust System
-
7130503193413 Plate. Quick Adjust SystemPlate. Quick Adjust System
-
7140293150144 Stavex Rivet. Quick Adjust SystemStavex Rivet. Quick Adjust System
-
7150234061600 Flat Washer M6, Stainless. Quick Adjust SystemFlat Washer M6, Stainless. Quick Adjust System
-
7160205062560 Socket Head Screw M6 X 25. Quick Adjust SystemSocket Head Screw M6 X 25. Quick Adjust System
-
7170233261466 Hex. Flanged Elastic Nut M6. Quick Adjust SystemHex. Flanged Elastic Nut M6. Quick Adjust System
-
7200503192956 LH Half Housing. Quick Adjust SystemLH Half Housing. Quick Adjust System
-
7210234061600 Flat Washer M6, Stainless. Quick Adjust SystemFlat Washer M6, Stainless. Quick Adjust System
-
7220205062060 Socket Head Screw M6 X 20. Quick Adjust SystemSocket Head Screw M6 X 20. Quick Adjust System
-
7500503194685 RH Support. Quick Adjust SystemRH Support. Quick Adjust System
-
7520503194525 RH Hose Protector. Quick Adjust SystemRH Hose Protector. Quick Adjust System
-
7530503193413 Plate. Quick Adjust SystemPlate. Quick Adjust System
-
7540293150144 Stavex Rivet. Quick Adjust SystemStavex Rivet. Quick Adjust System
-
7550234061600 Flat Washer M6, Stainless. Quick Adjust SystemFlat Washer M6, Stainless. Quick Adjust System
-
7560205062560 Socket Head Screw M6 X 25. Quick Adjust SystemSocket Head Screw M6 X 25. Quick Adjust System
-
7570233261466 Hex. Flanged Elastic Nut M6. Quick Adjust SystemHex. Flanged Elastic Nut M6. Quick Adjust System
-
7600a503192957 RH Half-Housing. Quick Adjust SystemRH Half-Housing. Quick Adjust System
-
7600b516006369 Decal. Quick Adjust SystemDecal. Quick Adjust System
-
7620293250085 O-Ring. Quick Adjust SystemO-Ring. Quick Adjust System
-
7630234061600 Flat Washer M6, Stainless. Quick Adjust SystemFlat Washer M6, Stainless. Quick Adjust System
-
7640205062060 Socket Head Screw M6 X 20. Quick Adjust SystemSocket Head Screw M6 X 20. Quick Adjust System
-
7700503194113 Protector. Quick Adjust SystemProtector. Quick Adjust System
-
7710224061201 Flat Washer. Quick Adjust SystemFlat Washer. Quick Adjust System
-
7720207662556 Hex. Flange Screw M6 X 25. Quick Adjust SystemHex. Flange Screw M6 X 25. Quick Adjust System
-
7730233261466 Hex. Flanged Elastic Nut M6. Quick Adjust SystemHex. Flanged Elastic Nut M6. Quick Adjust System
-
7740503193025 Adjustment Knob Ass'y. Quick Adjust System. Includes 7740 to 7740aAdjustment Knob Ass'y. Quick Adjust System. Includes 7740 to 7740a
-
7740a516004752 Shock Knob Adjustment Decal. Quick Adjust SystemShock Knob Adjustment Decal. Quick Adjust System
-
7750250000644 Allen Screw M3 X 0.5 X 10. Quick Adjust SystemAllen Screw M3 X 0.5 X 10. Quick Adjust System
-
7760503193166 Plate. Quick Adjust SystemPlate. Quick Adjust System
-
7770205961060 Socket Head Screw M6 X 10, Scotch Grip. Quick Adjust SystemSocket Head Screw M6 X 10, Scotch Grip. Quick Adjust System
-
8000503192771 Black, Wheel Cap. Not ShownBlack, Wheel Cap. Not Shown
Все узлы модели:
- 00- Model Numbers
- 01- Cooling
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder And Cylinder Head
- 01- Engine - 850 E-TEC
- 01- Engine Cooling
- 01- Exhaust
- 01- Rave Valve
- 02- Air Intake - 850 E-TEC
- 02- EFI
- 02- Fuel - Europe
- 02- Fuel - North America
- 02- Oil
- 03- Magneto And Electric Starter
- 04- Rewind Starter
- 05- Drive - 850R E-TEC - Except Ice Cobra
- 05- Drive - 850R E-TEC - Ice Cobra
- 05- Pulley
- 06- Brakes
- 07- Front Shocks - Blizzard & TNT
- 07- Front Shocks - X
- 07- Front Shocks - XRS
- 07- Front Suspension And Ski
- 07- Steering - Packages Blizzard & TNT
- 07- Steering - Packages X & XRS
- 08- Quick Ajust System
- 08- Rear Shocks - Blizzard and TNT
- 08- Rear Shocks - X
- 08- Rear Shocks - XRS - Europe
- 08- Rear Shocks - XRS - North America
- 08- Rear Suspension - Lower Section
- • 08- Rear Suspension - Upper Section
- 09- Bottom Pan
- 09- Cargo
- 09- Decals - Blizzard
- 09- Decals - TNT
- 09- Decals - X
- 09- Decals - XRS
- 09- Frame
- 09- Hood - Hand protector
- 09- Hood - Hood Section
- 09- Hood - Panel Section
- 09- Seat - Package Blizzard
- 09- Seat - Package TNT
- 09- Seat - Package X
- 09- Seat - Package XRS
- 09- Seat - Package XRS Iron Dog
- 09- Utilities - Europe
- 09- Utilities - North America
- 10- Electric - System
- 10- Engine Harness
- 10- Main Harness 515178547 - Electric Start
