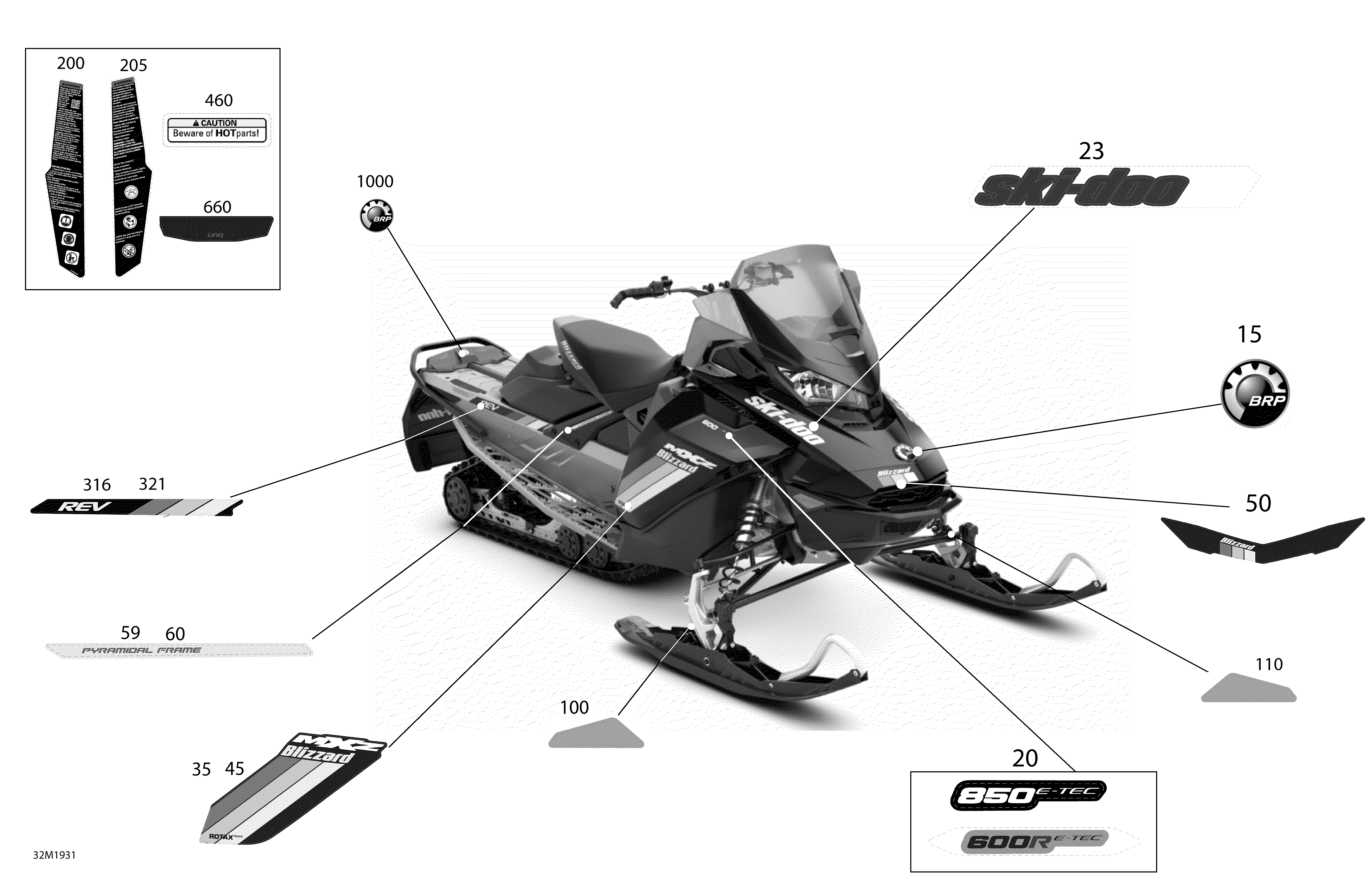

09- Decals - Blizzard для BRP Ski-Doo 003 - MXZ 850 E-TEC - 2019
-
№АртикулНазвание
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
20516008286 Engine Decal 850 E-TECEngine Decal 850 E-TEC
-
23516007716 Hood Ski-Doo DecalHood Ski-Doo Decal
-
35516009037 RH Side Pannel Decal MXZ BlizzardRH Side Pannel Decal MXZ Blizzard
-
45516009036 LH Pannel Decal MXZ BlizzardLH Pannel Decal MXZ Blizzard
-
50516009038 Front Hood Decal BlizzardFront Hood Decal Blizzard
-
59516007707 RH Decal Pyramidal FrameRH Decal Pyramidal Frame
-
60516007706 LH Decal Pyramidal FrameLH Decal Pyramidal Frame
-
100516008948 RH Ski Leg DecalRH Ski Leg Decal
-
110516008947 LH Ski Leg DecalLH Ski Leg Decal
-
200516009232 Warning Decal, SecurityWarning Decal, Security
-
205516007604 RH English Warning DecalRH English Warning Decal
-
316516009035 RH Rear Tunnel Decal REVRH Rear Tunnel Decal REV
-
321516009034 LH Rear Tunnel Decal REVLH Rear Tunnel Decal REV
-
460516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
660516008997 Decal '' Linq ''Decal '' Linq ''
-
1000516006224 BRP Logo, 20 mmBRP Logo, 20 mm
