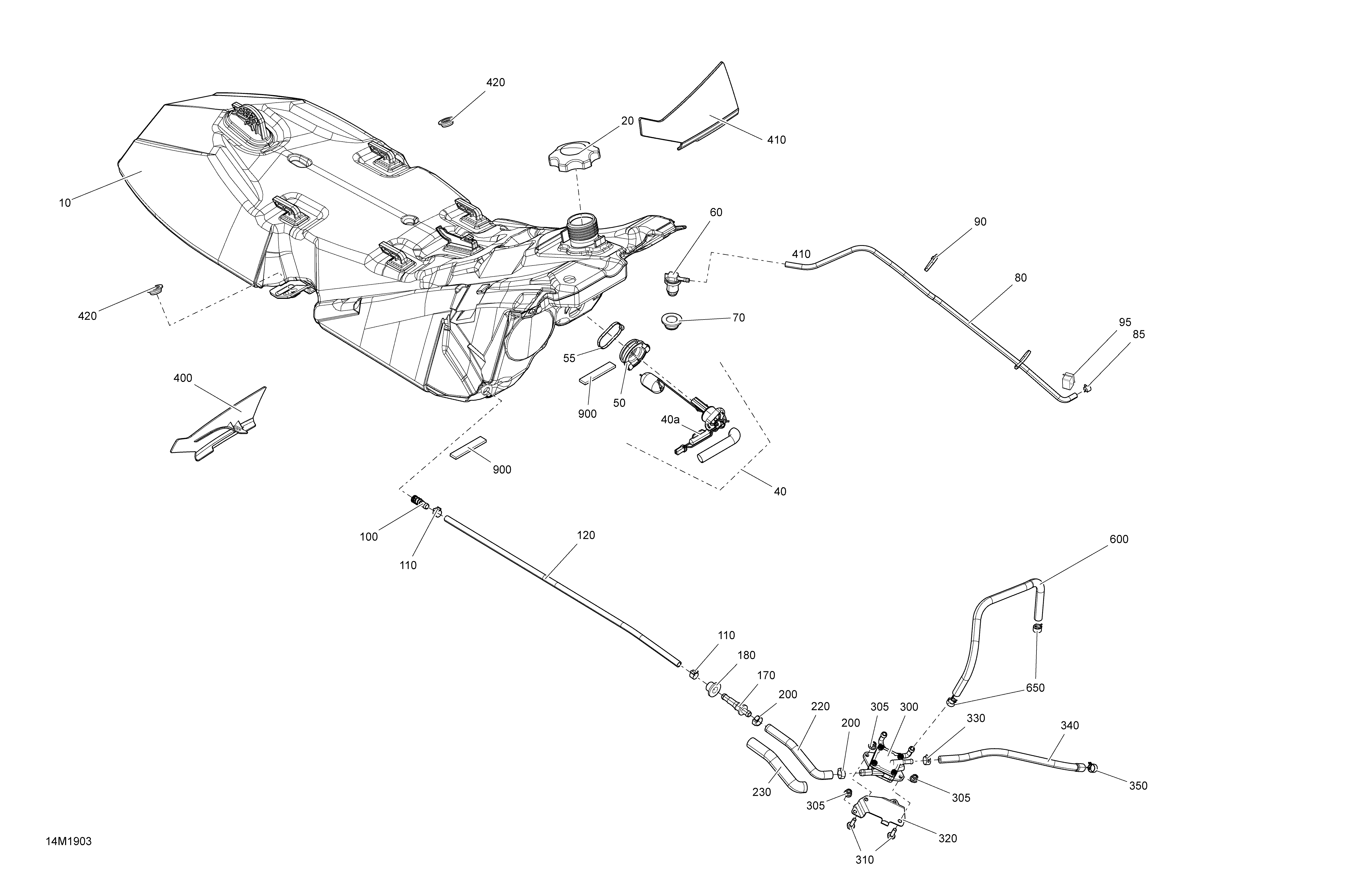

02- Fuel - North America для BRP Ski-Doo 001 - Tundra 550F - 2019
-
№АртикулНазвание
-
10513033695 Fuel TankFuel Tank
-
20513033720 Fuel Tank Cap, 87 OctaneFuel Tank Cap, 87 Octane
-
40513033958 Sensor Level Fuel. Includes 40 to 40aSensor Level Fuel. Includes 40 to 40a
-
40a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
50513033606 GrommetGrommet
-
55293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
60513033842 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
95414227300 ClipClip
-
100414872100 Fuel Filter StrainerFuel Filter Strainer
-
110513033010 Norma Spring ClampNorma Spring Clamp
-
120513033332 HoseHose
-
170414872700 Male ConnectorMale Connector
-
180513033435 GrommetGrommet
-
200293650053 Crimp ClampCrimp Clamp
-
220513033499 Formed HoseFormed Hose
-
230415080000 Tubing 16 mmTubing 16 mm
-
300403901813 Fuel PumpFuel Pump
-
305233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
320513033543 Pump BracketPump Bracket
-
330414415200 Spring ClampSpring Clamp
-
340513033553 Formed HoseFormed Hose
-
345415080000 Tubing 16 mmTubing 16 mm
-
350513033029 Universal Spring ClampUniversal Spring Clamp
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
600709000666 HoseHose
-
610709000666 HoseHose
-
620415080000 Tubing 16 mmTubing 16 mm
-
630415080000 Tubing 16 mmTubing 16 mm
-
650513033029 Universal Spring ClampUniversal Spring Clamp
-
900513033813 GasketGasket
