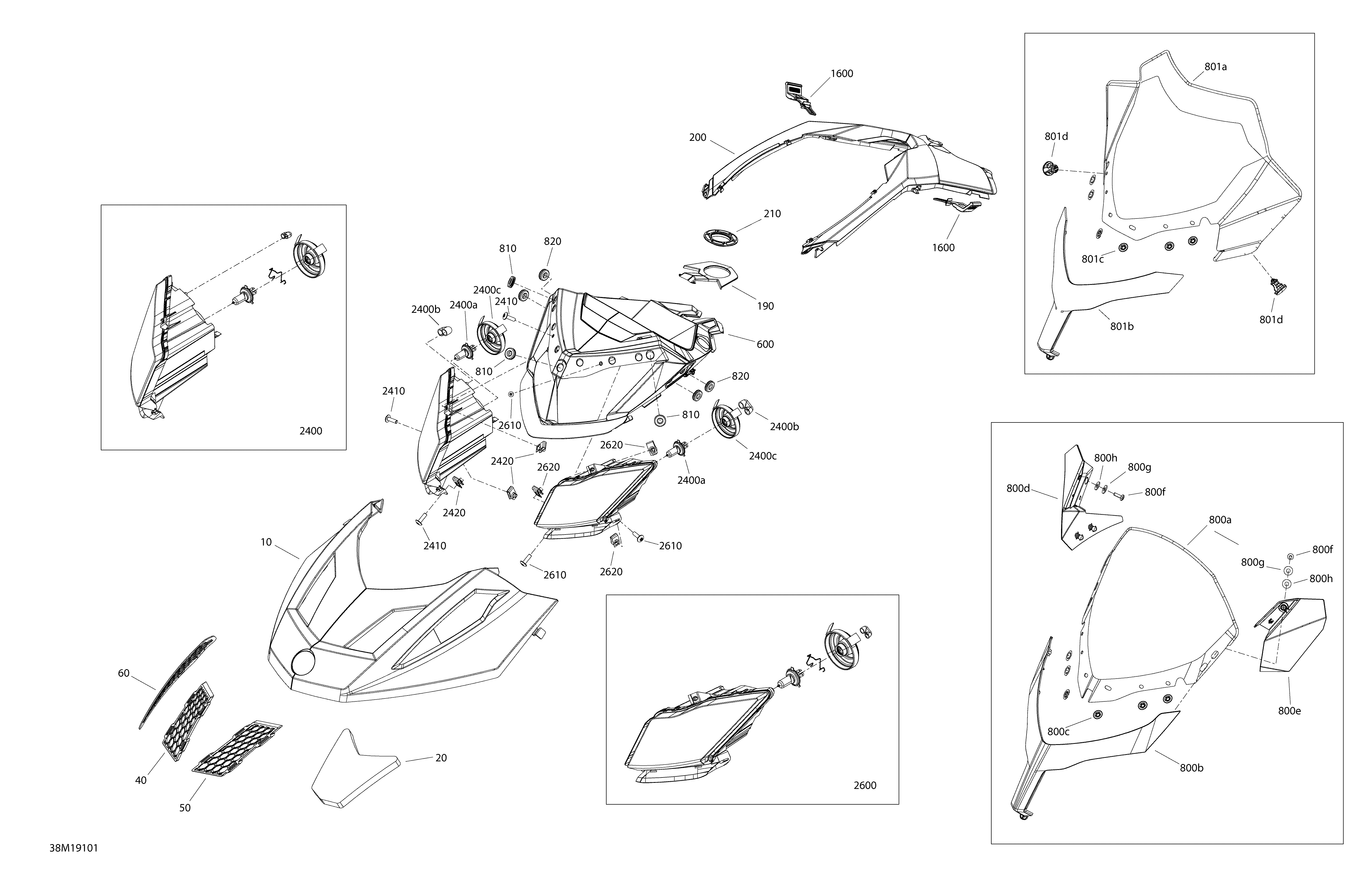

09- Hood - Hood Section для BRP Ski-Doo 001 - Tundra 550F - 2019
-
№АртикулНазвание
-
10517305014 HoodHood
-
20517304877 Foam HoodFoam Hood
-
40517303805 RH Hood GrillRH Hood Grill
-
50517303804 LH Hood GrillLH Hood Grill
-
60517304187 RH Lateral Hood GrillRH Lateral Hood Grill
-
190517304027 Deep Black, Cap ConsoleDeep Black, Cap Console
-
200517305015 ConsoleConsole
-
210517306602 Console NutConsole Nut
-
600517303999 Indicator SupportIndicator Support
-
800a517305720 Windshield (430). Package SportWindshield (430). Package Sport
-
800b860200229 Medium Windshield Support. Package SportMedium Windshield Support. Package Sport
-
800c732610072 Push Nut. Package SportPush Nut. Package Sport
-
800d517304024 RH Console Air Deflector. Package SportRH Console Air Deflector. Package Sport
-
800e517304025 LH Console Air Deflector. Package SportLH Console Air Deflector. Package Sport
-
800f250000720 Torx Screw K50 X 16. Package SportTorx Screw K50 X 16. Package Sport
-
800g250200025 Washer M5. Package SportWasher M5. Package Sport
-
800h250200024 Rubber Washer 5 mm. Package SportRubber Washer 5 mm. Package Sport
-
801a517305721 Windshield (20''). Package LT. Includes 800a to 800bWindshield (20''). Package LT. Includes 800a to 800b
-
801b860200228 Low Windshield Support. Package LTLow Windshield Support. Package LT
-
801c732610072 Push Nut. Package LTPush Nut. Package LT
-
801d517304744 Button. Package LTButton. Package LT
-
810517303756 GrommetGrommet
-
820517303756 GrommetGrommet
-
1600517304093 Center Panel LatchCenter Panel Latch
-
2400517304194 RH Headlamp Ass'y. Includes 2400 to 2400cRH Headlamp Ass'y. Includes 2400 to 2400c
-
2400517304195 LH Headlamp Ass'y. Includes 2400 to 2400cLH Headlamp Ass'y. Includes 2400 to 2400c
-
2400a515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )Halogen Bulb, 60/55 W, 12 V ( H4 )
-
2400b515176498 CapCap
-
2400c515176499 CoverCover
-
2410250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2610250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
2620250000957 Extruded Panel Nut M6Extruded Panel Nut M6
