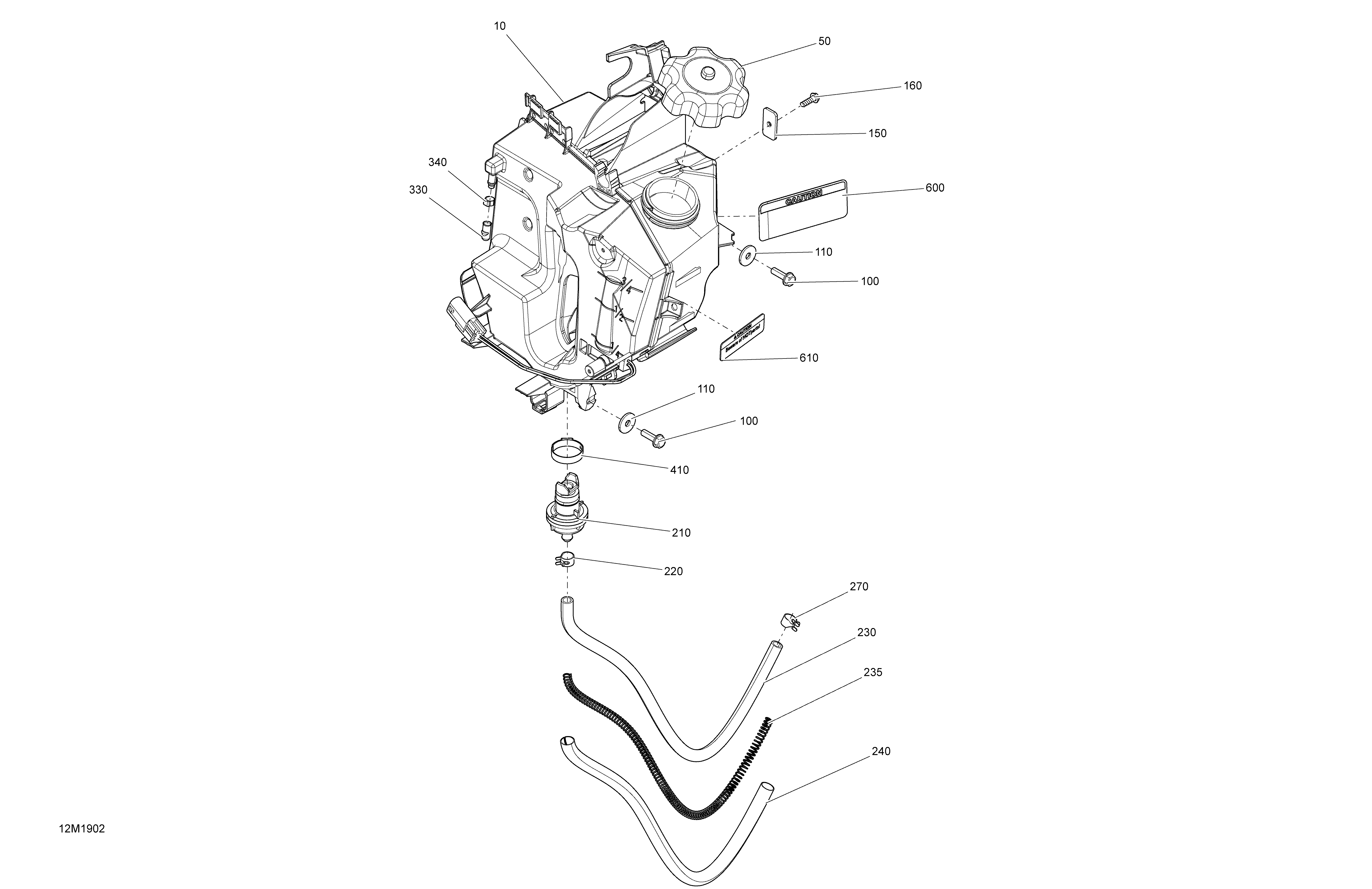

02- Oil - 550F для BRP Ski-Doo 001 - Tundra 550F - 2019
-
№АртикулНазвание
-
10519000312 Oil TankOil Tank
-
50519000273 CapCap
-
100250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
110224061201 Flat WasherFlat Washer
-
150519000179 BracketBracket
-
160241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
210519000242 Oil FilterOil Filter
-
220414415200 Spring ClampSpring Clamp
-
230415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
235519000196 SpringSpring
-
240415079900 Tubing 10 mmTubing 10 mm
-
270414420700 Spring ClampSpring Clamp
-
330519000216 CapCap
-
340293650043 Oetiker Gear ClampOetiker Gear Clamp
-
410293650099 Crimp ClampCrimp Clamp
-
600516007443 Warning Decal / Oil NoticeWarning Decal / Oil Notice
-
610516005280 Caution Decal Hot PartsCaution Decal Hot Parts
